7675SU00.00

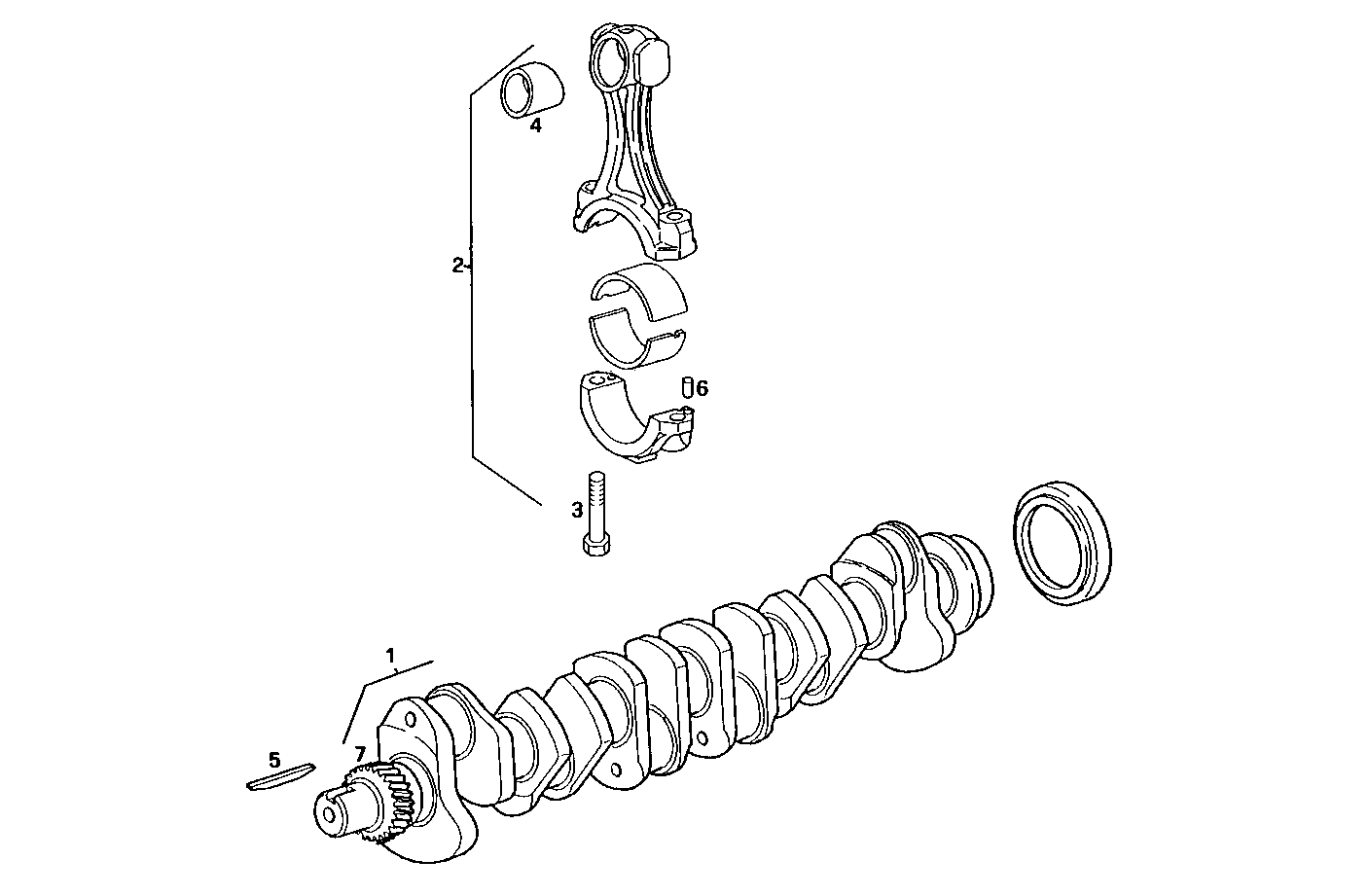

0800.087 CRANK SHAFT - CONNECTING RODS
| Item | Part number | Description |
|---|---|---|
| 1 | 87840156 | CRANK SHAFT ASSY |
| 2 | 87801219 | CONN.ROD ASSY. ASSY |
| 3 | 83991682 | SCREW |
| 4 | 87840994 | BUSH |
| 5 | 83956433 | KEY |
| 6 | 83991680 | PIN |
| 7 | 83993159 | GEAR |
