7675SU00.00

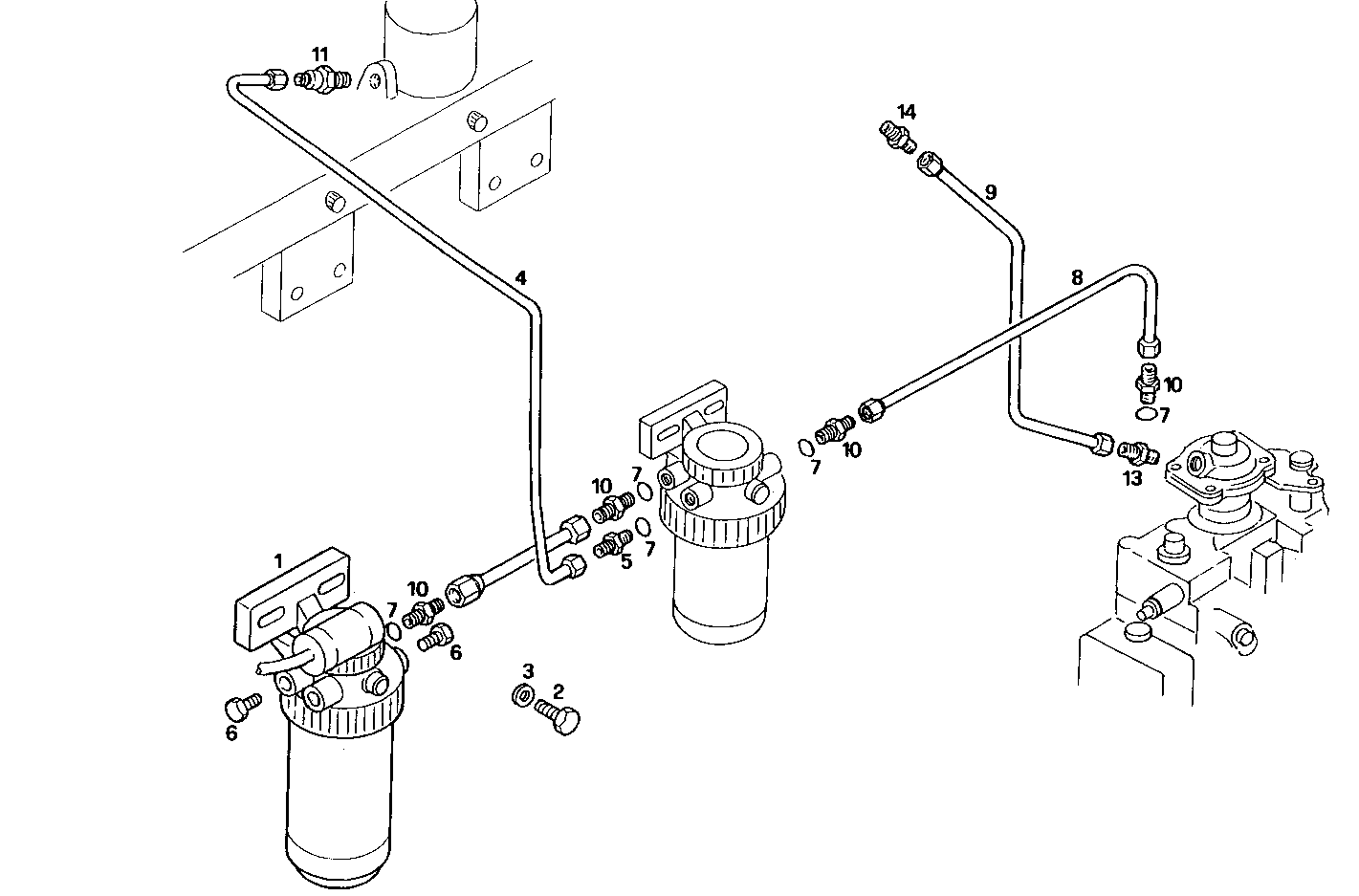

2030.170/01 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 87802203 | FUEL FILTER |
| 2 | 83935461 | SCREW |
| 3 | 83908991 | WASHER |
| 4 | 87801627 | FUEL LINE |
| 5 | 82894025 | PIPE SOCKET |
| 6 | 87840656 | PLUG |
| 7 | 83904845 | O-RING |
| 8 | 87800521 | FUEL LINE |
| 9 | 87801959 | FUEL LINE |
| 10 | 83947824 | PIPE SOCKET |
| 12 | 87840171 | GASKET |
| 13 | 83958607 | PIPE SOCKET |
| 14 | 87840209 | PIPE SOCKET |
