7675SU00.00

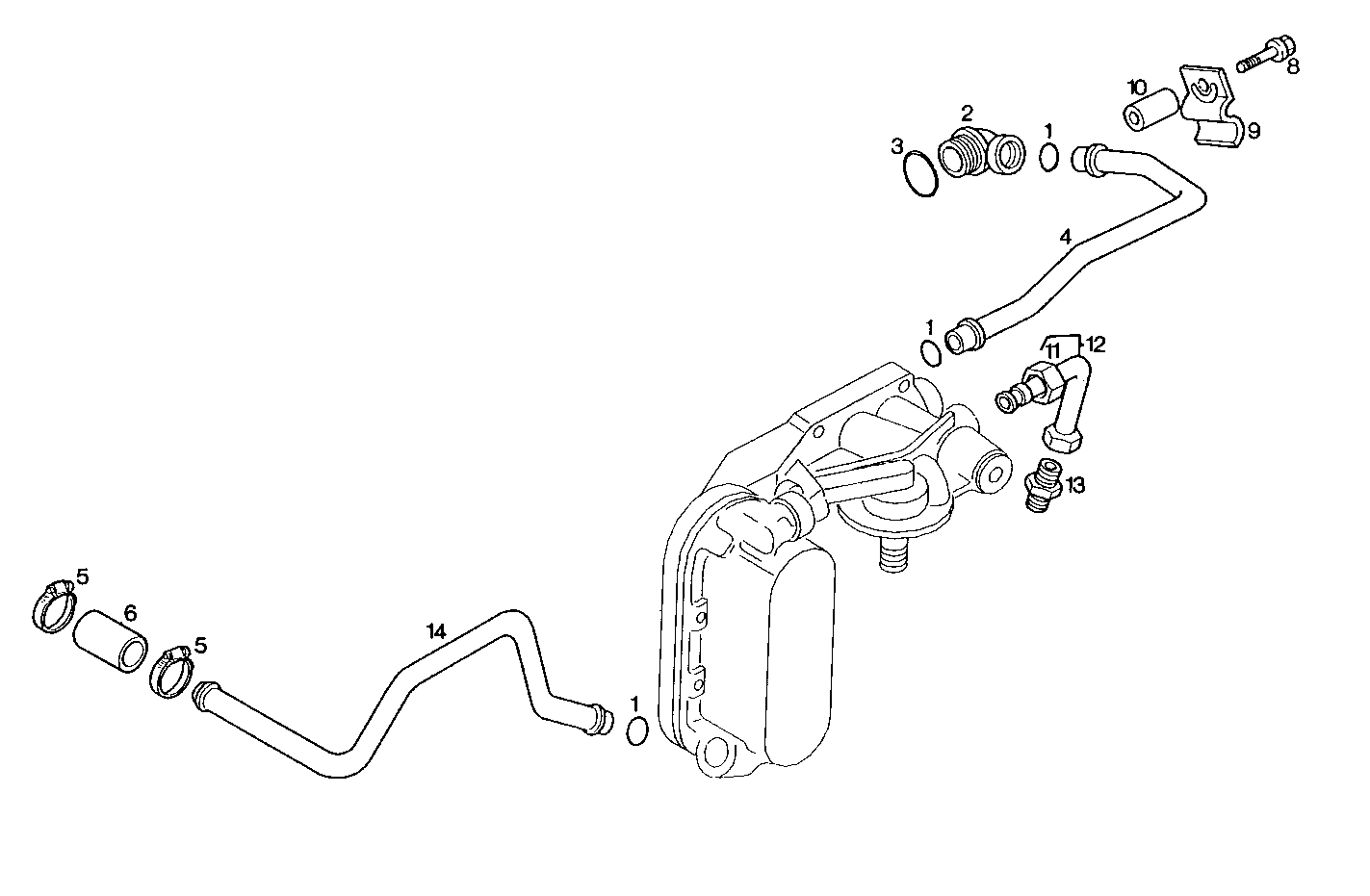

3210.208 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 80027286 | O-RING |
| 2 | 81876846 | PIPE SOCKET |
| 3 | 89706747 | O-RING |
| 4 | 81876845 | WATER PIPE |
| 5 | 81876821 | CLIP |
| 6 | 87840711 | CONNECTOR SLEEVE |
| 8 | 81868093 | SCREW |
| 9 | 81876848 | SUPPORT |
| 10 | 81876849 | SPACING BAR |
| 11 | 81876833 | NUT |
| 12 | 81879199 | WATER PIPE ASSY |
| 13 | 81876834 | PIPE SOCKET |
| 14 | 87802133 | WATER PIPE |
