7675U00.00

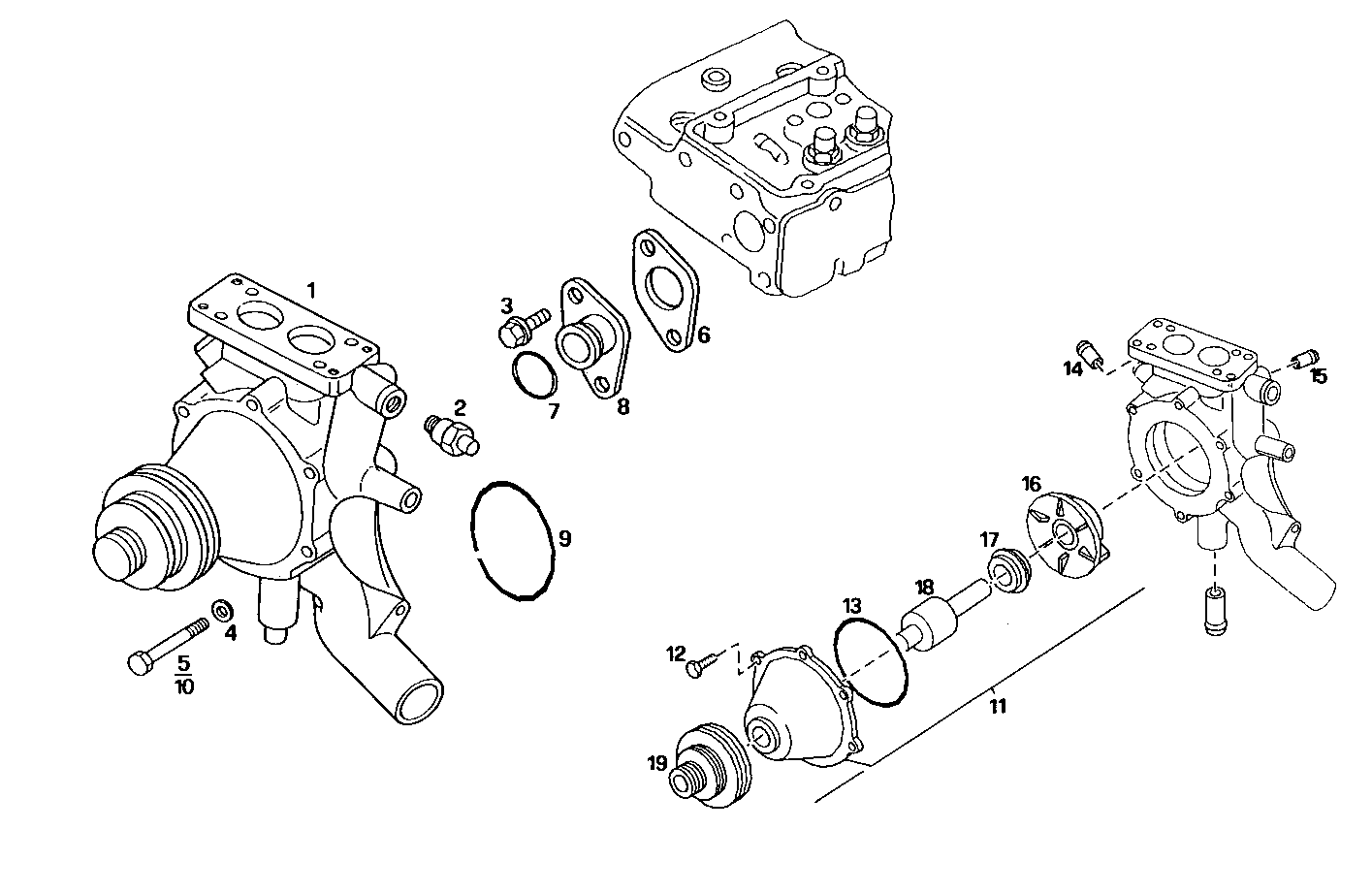

3200.103 WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 87801636 | WATER PUMP ASSY |
| 2 | 83917490 | TRANSMITTER |
| 3 | 82853254 | SCREW |
| 4 | 83935787 | WASHER |
| 5 | 83908326 | SCREW |
| 6 | 87800983 | FLAT ENGINE GASKET |
| 7 | 14463881 | O-RING Ø3,53X34,52 MM |
| 8 | 83999257 | FLANGE |
| 9 | 83416201 | O-RING |
| 10 | 81821816 | SCREW |
| 11 | 87801641 | COVER ASSY |
| 12 | 16287221 | HEXAGON BOLT M8X25 MM |
| 13 | 87840712 | O-RING |
| 14 | 87840365 | WATER PIPE |
| 15 | 87840710 | WATER PIPE |
| 16 | 87840010 | WATER PUMP IMPELL. |
| 17 | 81868281 | BUSH |
| 18 | 83958136 | DRIVE BEARING |
| 19 | 87801638 | PULLEY |
