7675U00.00

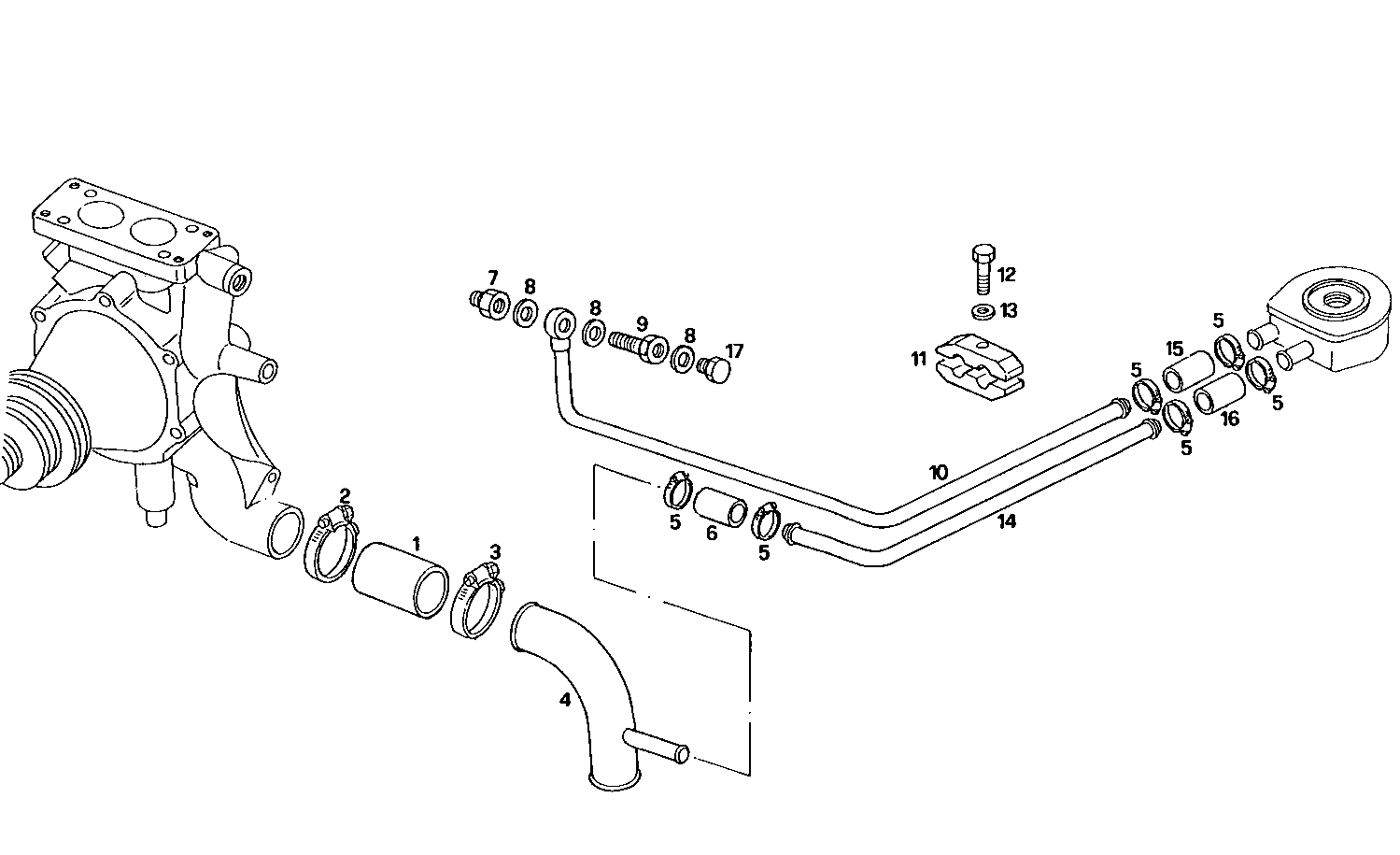

3210.210 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98433329 | CONNECTOR SLEEVE |
| 2 | 17764893 | CLIP Ø40/60 MM |
| 3 | 17764793 | CLIP Ø32/50 MM |
| 4 | 8026487 | WATER PIPE |
| 5 | 18088393 | CLIP Ø16/25 MM |
| 6 | 98443339 | WATER HOSE |
| 7 | 8009273 | PIPE SOCKET |
| 8 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
| 9 | 8027369 | PIPE SOCKET |
| 10 | 8026485 | WATER PIPE |
| 11 | 8010505 | CLAMP Ø16 MM |
| 12 | 8014502 | SCREW |
| 13 | 17090774 | WASHER |
| 14 | 8026486 | WATER PIPE |
| 15 | 8011627 | CONNECTOR SLEEVE |
| 16 | 8011610 | CONNECTOR SLEEVE |
