8031i05.05

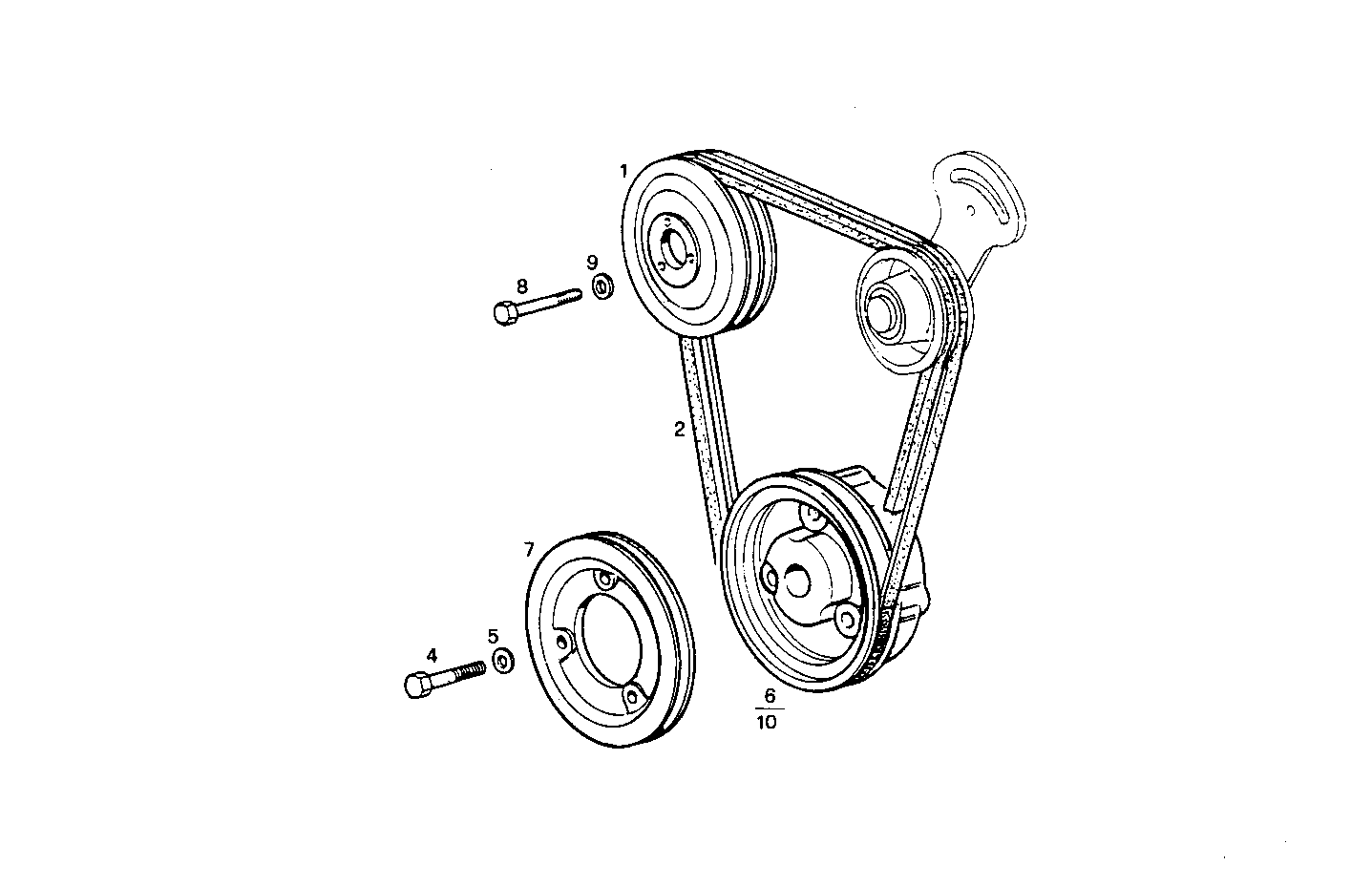

A12010007 FRONT DRIVE WITH 2 BELTS - with belt stretcher

Iveco/FPT FRONT DRIVE WITH 2 BELTS

Item Part number Description
1 4619286 WATER PUMP PULLEY
2 98473886 SET OF V-BELTS L=1150 MM
4 15888821 HEXAGON BOLT M10X1,25X70 MM
5 11190574 WASHER Ø10X20X2,3 MM
6 8012050 PULLEY [up to 03-93]
7 8012051 PULLEY
8 16605624 HEXAGON BOLT M8X25 MM (8.8)
9 11193874 WASHER Ø8X16 MM
10 8015477 PULLEY
