8031i05.05

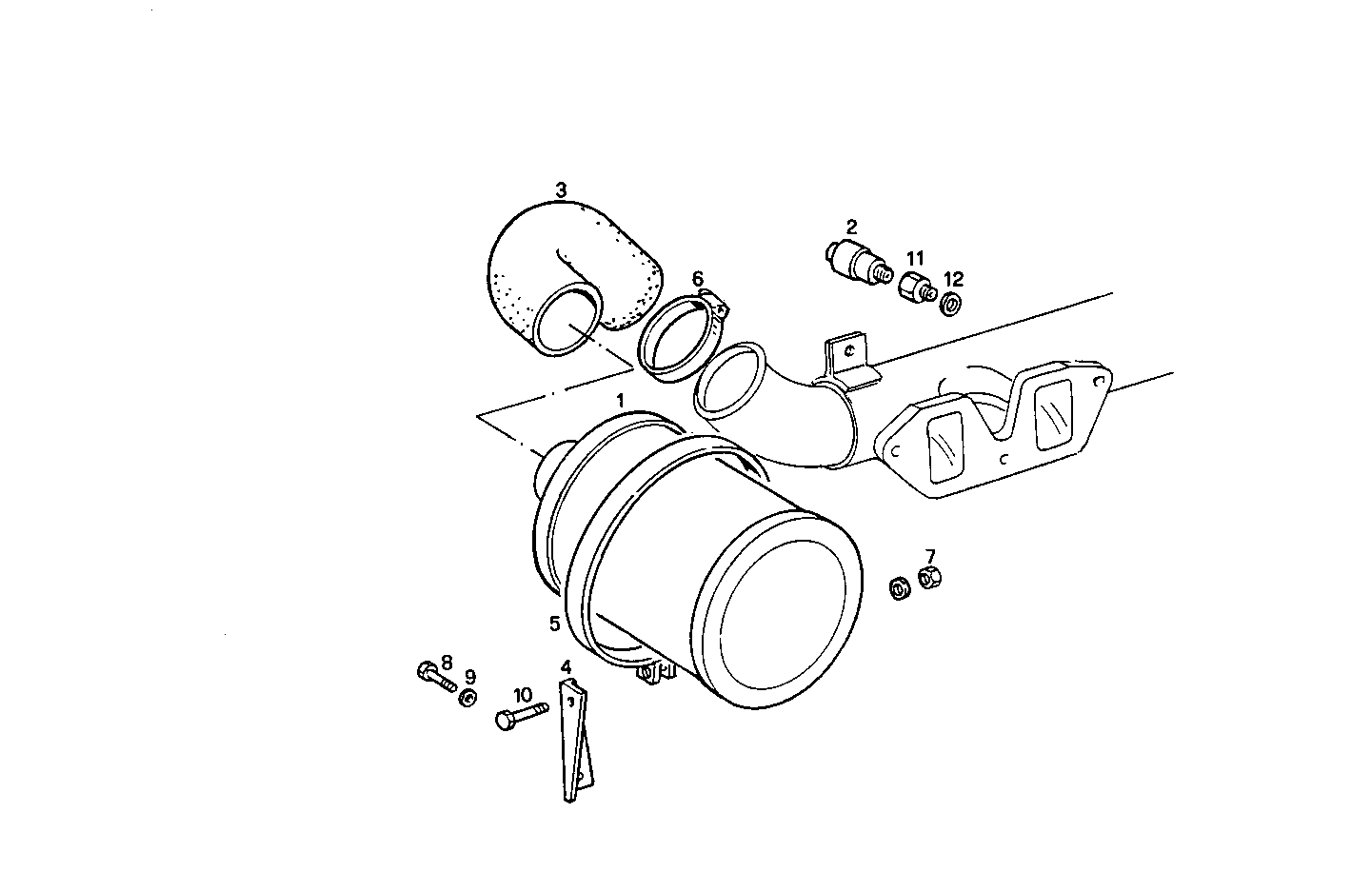

A21200001 DRY AIR CLEANER - with mechanical clogging gauge
| Item | Part number | Description |
|---|---|---|
| 1 | 8008189 | AIR CLEANER |
| 2 | 4936137 | CHOCKED FILTER INDIC. MECHANICAL |
| 3 | 8102906 | RUBBER SLEEVE |
| 4 | 8008191 | TIE ROD |
| 5 | 8008190 | CLIP |
| 6 | 17765092 | CLIP Ø60-80 MM |
| 7 | 16104111 | HEXAGON NUT M8 |
| 8 | 11307021 | HEXAGON BOLT M10X40 MM |
| 9 | 8109544 | SPACING BAR [from 05-96] |
| 10 | 16043621 | HEXAGON BOLT M8X25 MM |
| 11 | 8008034 | PIPE SOCKET |
| 12 | 11271460 | GASKET Ø21X26X1,5 MM |
