8031i05.05

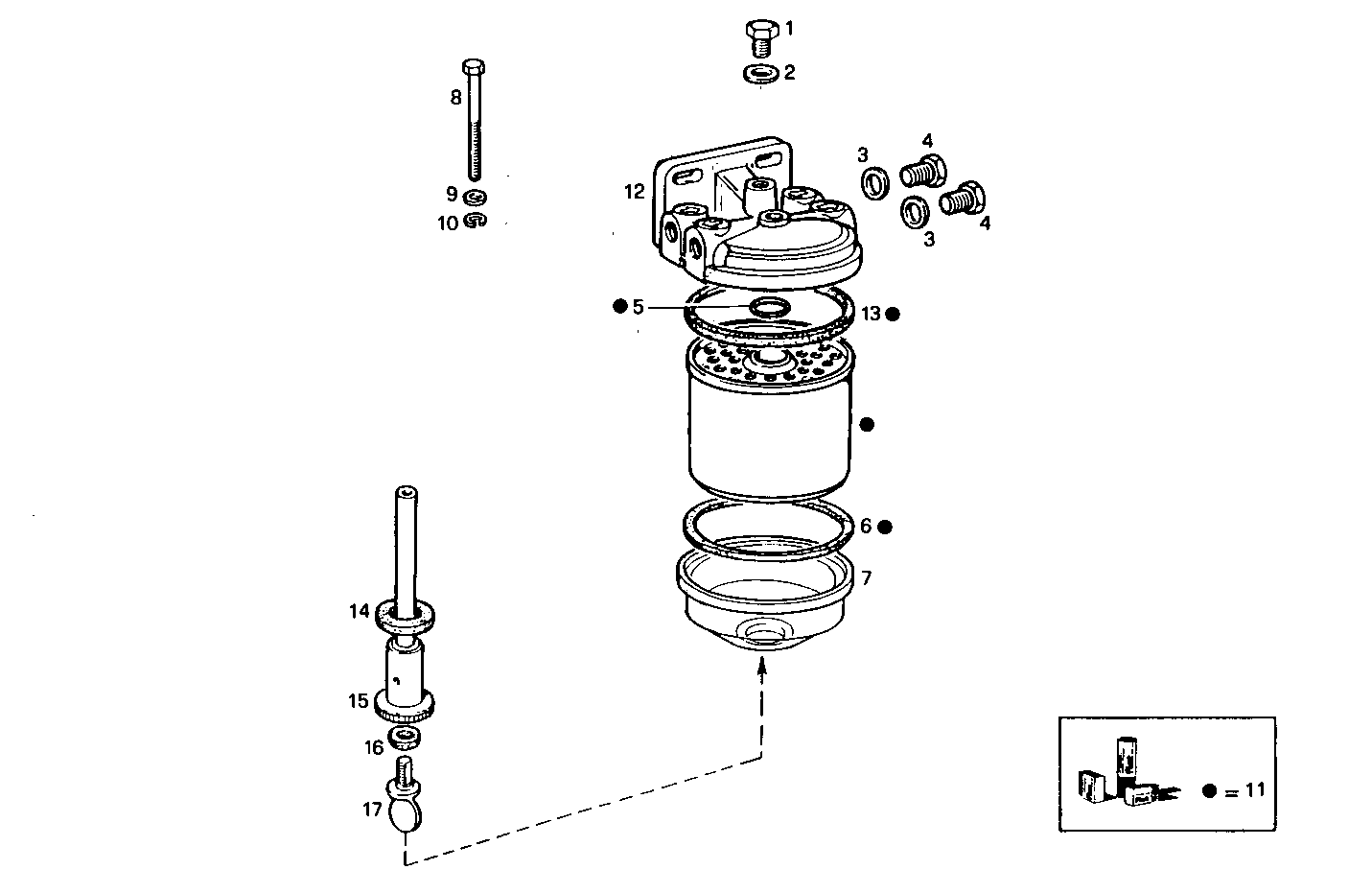

T1504001 FUEL FILTER - (components)
| Item | Part number | Description |
|---|---|---|
| 1 | 4617973 | SCREW CONNECTOR |
| 2 | 9918107 | WASHER |
| 3 | 9918104 | WASHER |
| 4 | 9918111 | THREADED PLUG |
| 5 | 14457189 | O-RING Ø2,62X13,94 MM |
| 6 | 79020891 | WASHER BOTTOM |
| 7 | 9918123 | FILTER BOWL |
| 8 | 9927915 | SCREW |
| 9 | 9927911 | SPRING WASHER |
| 10 | 9917950 | WASHER |
| 11 | 1909100 | FUEL FILTER ELEM. |
| 12 | 9927916 | FILTER SUPPORT |
| 13 | 79020892 | WASHER TOP |
| 14 | 9918124 | WASHER |
| 15 | 9919164 | STUD |
| 16 | 9918145 | WASHER |
| 17 | 9918125 | SCREW |
