8031i06.05

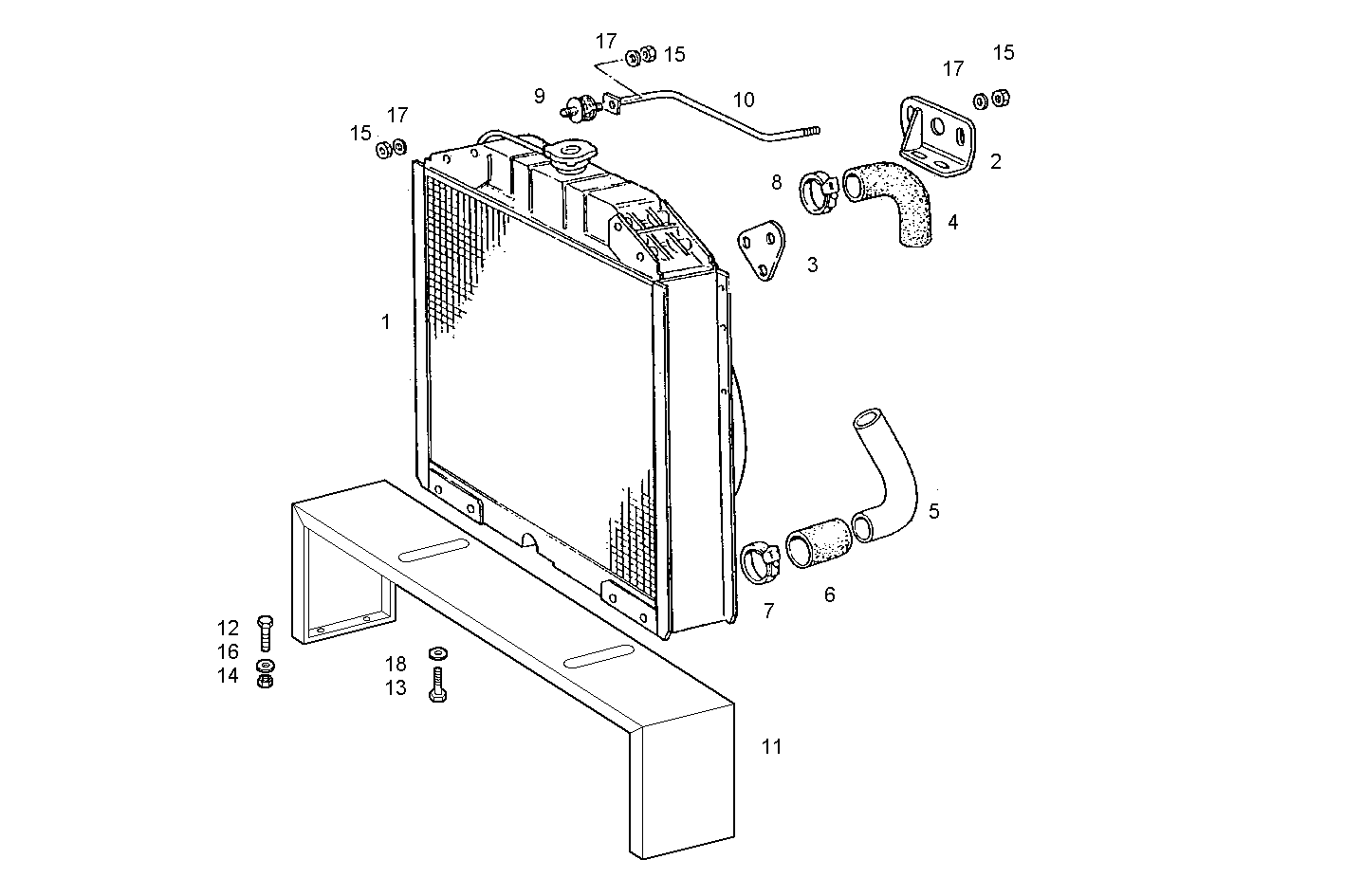

A22060024 OVERSIZE RADIATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8008817 | WATER RADIATOR ASSY |
| 2 | 8023950 | SUPPORT |
| 3 | 8023980 | PLATE |
| 4 | 8026743 | RUBBER SLEEVE |
| 5 | 8077105 | WATER PIPE |
| 6 | 8570621 | WATER HOSE |
| 7 | 17764791 | CLIP Ø32/50 MM |
| 8 | 17764892 | PIPE CLIP Ø40-60 MM |
| 9 | 4927883 | RUBBER PAD |
| 10 | 8023991 | TIE ROD |
| 11 | 8031244 | SUPPORT |
| 12 | 10902633 | HEXAGON BOLT M6X1X25 MM |
| 13 | 16607625 | SCREW M10X25 |
| 14 | 17037821 | HEXAGON NUT M6X1 |
| 15 | 17037931 | HEXAGON NUT M8X1,25 |
| 16 | 17088474 | WASHER Ø6X12 MM |
| 17 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 18 | 17090174 | SPRING WASHER Ø10X20 MM |
| 19 | 4935488 | RADIATOR PLUG |
