8031i40.05

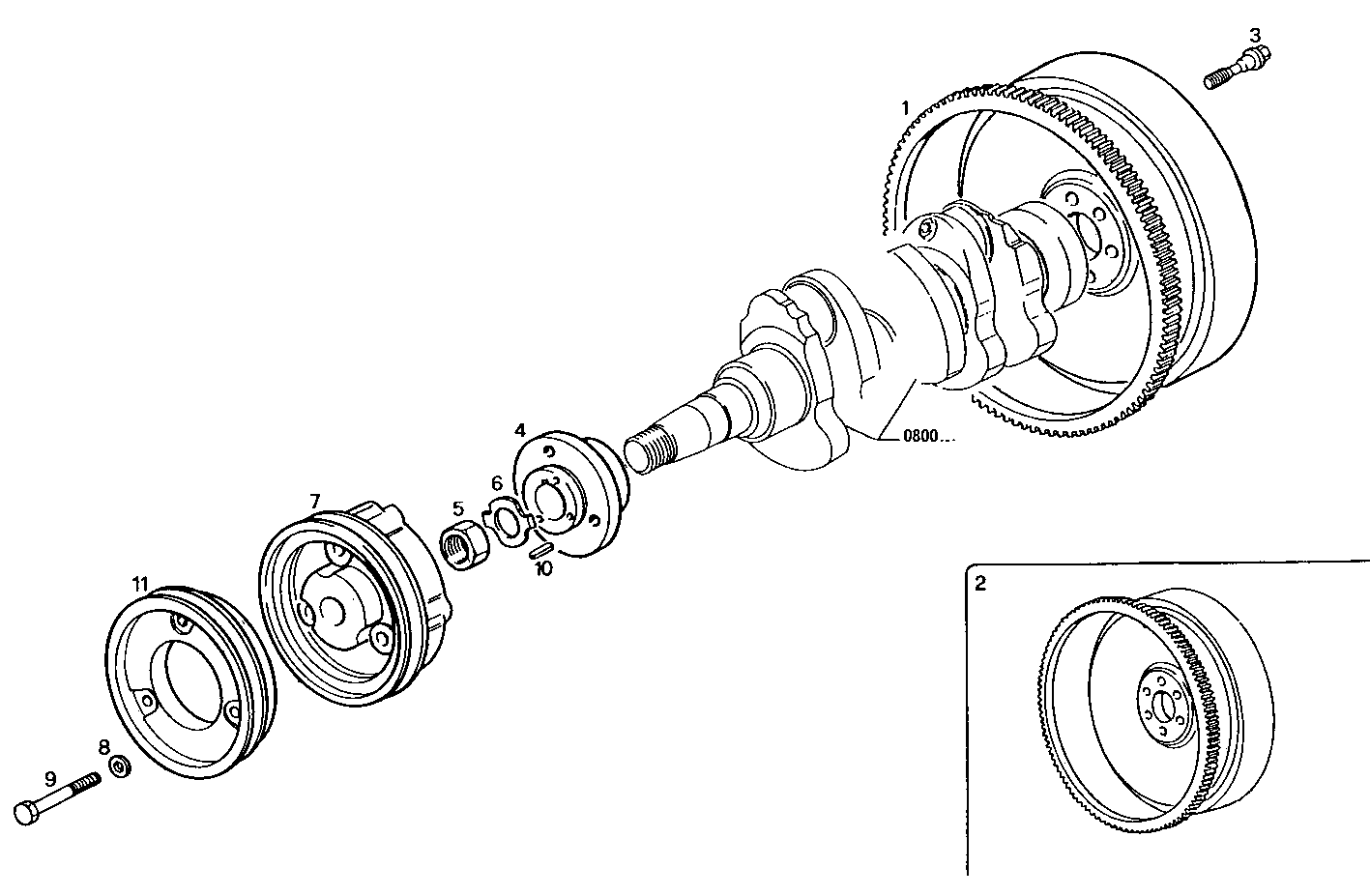

0830.162 ENGINE FLYWHEEL - DAMPER
| Item | Part number | Description |
|---|---|---|
| 1 | 4862411 | RING GEAR |
| 2 | 500323946 | FLYWHEEL ASSY |
| 3 | 4779122 | HEXAGON BOLT |
| 4 | 4655915 | HUB |
| 5 | 4600189 | NUT |
| 6 | 4600190 | LOCKING PLATE |
| 7 | 8015477 | PULLEY |
| 8 | 17090174 | SPRING WASHER Ø10X20 MM |
| 9 | 15888821 | HEXAGON BOLT M10X1,25X70 MM |
| 10 | 17254970 | DOWEL PIN Ø5 MM |
| 11 | 8012051 | PULLEY |
