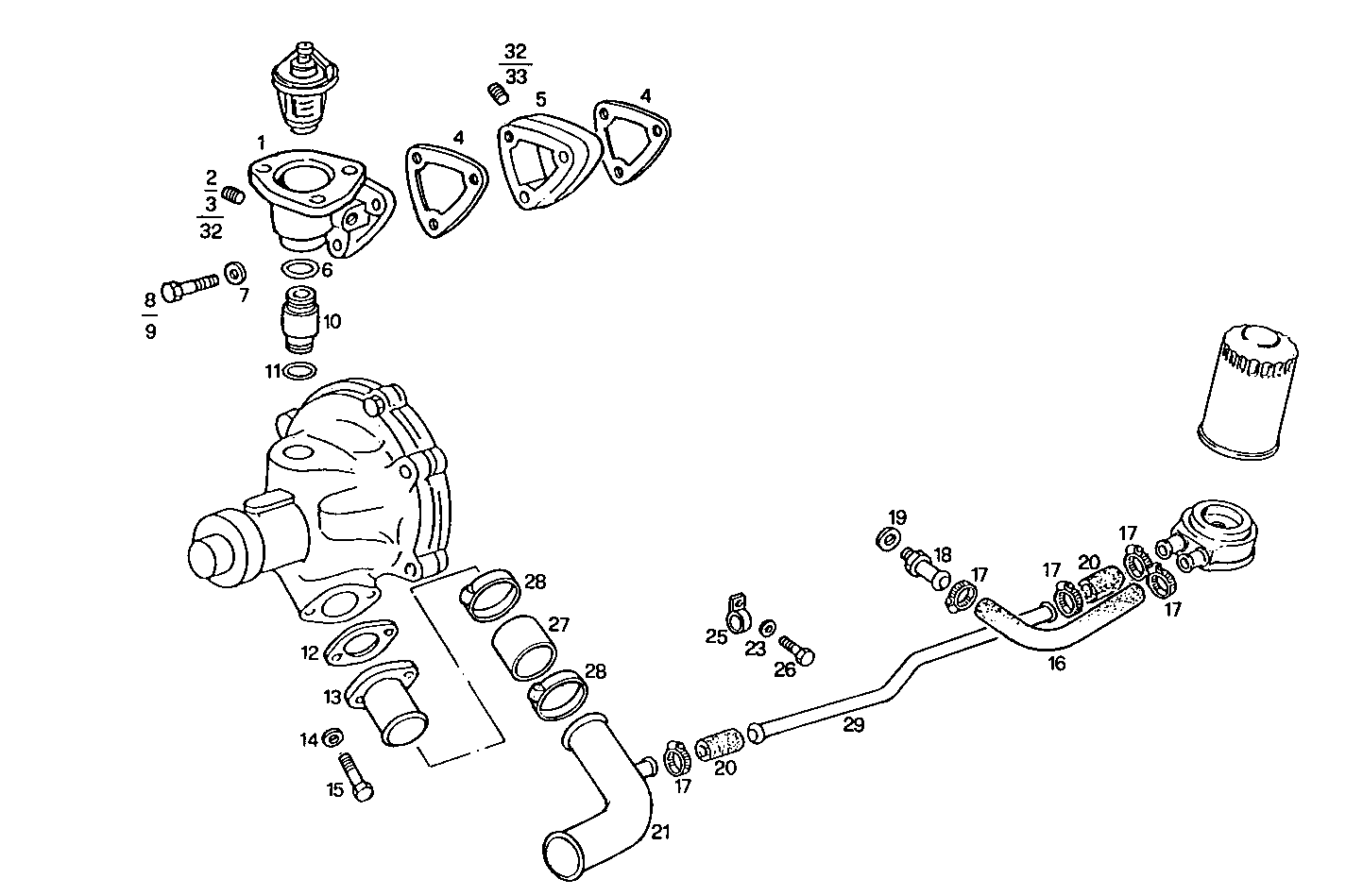

| Item |
Part number |
Description |
|
1 |
4823616 |
THERMOSTAT BODY |
|
2 |
16997611 |
THREADED PLUG M20X1,5 |
|
3 |
16997711 |
LOCK PLUG M22X1,5 |
|
4 |
4851926 |
FLAT ENGINE GASKET |
|
5 |
4651371 |
SPACING BAR |
|
6 |
17288681 |
O-RING �24,9 MM SP=3,5 MM |
|
7 |
17095104 |
WASHER �10X21X2 MM |
|
8 |
15971424 |
HEXAGON BOLT M10X80 MM |
|
9 |
15971721 |
SCREW M10X1,25X95 |
|
10 |
98415712 |
PIPE SOCKET [from 657424] |
|
11 |
17282281 |
O-RING 2,62x23,47 |
|
12 |
4852556 |
FLAT ENGINE GASKET |
|
13 |
4697838 |
WATER PIPE |
|
14 |
17094914 |
WASHER 8x16 |
|
15 |
98401723 |
HEXAGON BOLT M8X1,25X12 MM |
|
16 |
8019449 |
WATER HOSE |
|
17 |
18088391 |
CLIP �16/25 MM |
|
18 |
98418647 |
PIPE SOCKET |
|
19 |
10263460 |
WASHER �22X28X1,5 MM |
|
20 |
17737187 |
WATER HOSE |
|
21 |
8028323 |
WATER PIPE |
|
23 |
17090174 |
SPRING WASHER �10X20 MM |
|
25 |
4763572 |
FASTENING BRACKET |
|
26 |
16609824 |
HEXAGON BOLT M12X1,75X25 MM |
|
27 |
4927830 |
RUBBER SLEEVE |
|
28 |
17764791 |
CLIP �32/50 MM |
|
29 |
8028324 |
WATER PIPE |
|
32 |
16997411 |
THREADED PLUG M16X1,5 |
|
33 |
99434231 |
THREADED PLUG M10X1,25 |
