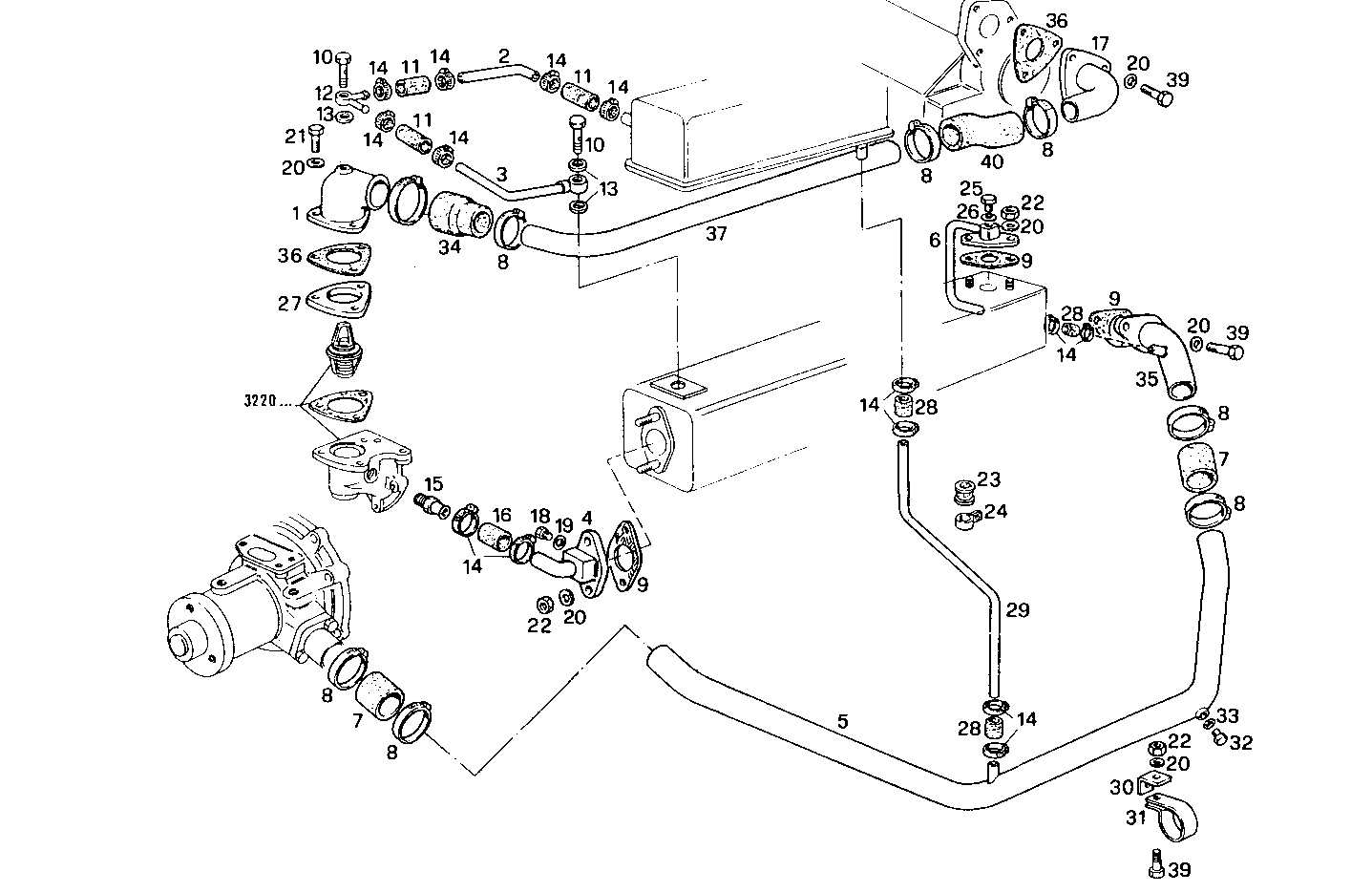

| Item |
Part number |
Description |
|
1 |
8107202 |
WATER PIPE |
|
2 |
8107519 |
WATER PIPE |
|
3 |
8008873 |
WATER PIPE |
|
4 |
8107731 |
WATER PIPE |
|
5 |
8107742 |
WATER PIPE |
|
6 |
8107732 |
WATER PIPE |
|
7 |
17742887 |
RUBBER SLEEVE |
|
8 |
17764793 |
CLIP Ø32/50 MM |
|
9 |
8009640 |
GASKET |
|
10 |
8009696 |
SCREW CONNECTOR M12X1,5X25 |
|
11 |
4927825 |
WATER HOSE |
|
12 |
8016190 |
PIPE SOCKET |
|
13 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
14 |
17764593 |
CLIP Ø20/32 MM |
|
15 |
4760312 |
THREADED UNION |
|
16 |
98418717 |
WATER HOSE Ø18 MM |
|
17 |
8107720 |
PIPE SOCKET |
|
18 |
16992340 |
THREADED PLUG M14X1,5 |
|
19 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
20 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
21 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
22 |
17037931 |
HEXAGON NUT M8X1,25 |
|
23 |
4757122 |
RUBBER PAD |
|
24 |
4763804 |
FASTENING BRACKET |
|
25 |
16992440 |
THREADED PLUG M16X1,5 |
|
26 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
27 |
8107226 |
SPACING BAR |
|
28 |
17737687 |
WATER HOSE |
|
29 |
8107523 |
WATER PIPE |
|
30 |
4934319 |
RETAINER |
|
31 |
4936741 |
CLIP |
|
32 |
16992140 |
PLUG M10X1 |
|
33 |
4858606 |
GASKET Ø10X14X1 MM |
|
34 |
98447313 |
WATER HOSE Ø45 MM/Ø38 MM |
|
35 |
8107759 |
WATER PIPE |
|
36 |
98420754 |
FLAT ENGINE GASKET SP=0,5 MM |
|
37 |
8107734 |
WATER PIPE |
|
39 |
16045624 |
SCREW M8X120 |
|
40 |
4927830 |
RUBBER SLEEVE |
