8031M06.01

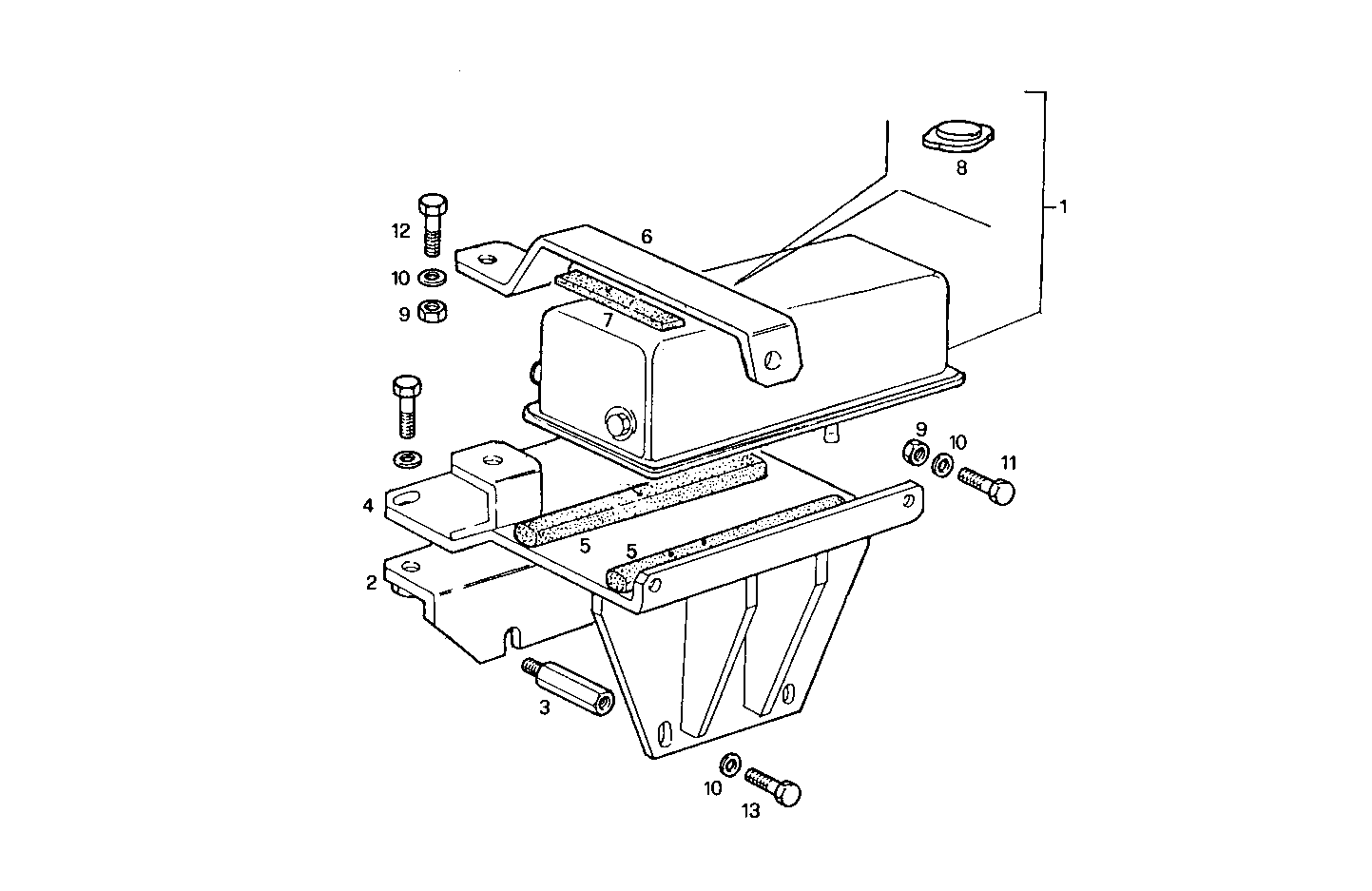

3290.002 EXPANSION TANK
| Item | Part number | Description |
|---|---|---|
| 1 | 8108827 | WATER EXPANSION TANK |
| 2 | 8108822 | RETAINER |
| 3 | 8107490 | STUD |
| 4 | 8108828 | SUPPORT |
| 5 | 8108830 | FELT |
| 6 | 8108829 | CLIP |
| 7 | 8109039 | FELT |
| 8 | 8109172 | PLUG |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 11 | 16605424 | SCREW M8X16 MM (8.8) |
| 12 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 13 | 16605524 | HEXAGON BOLT M8X20 MM |
