8035.05M.940

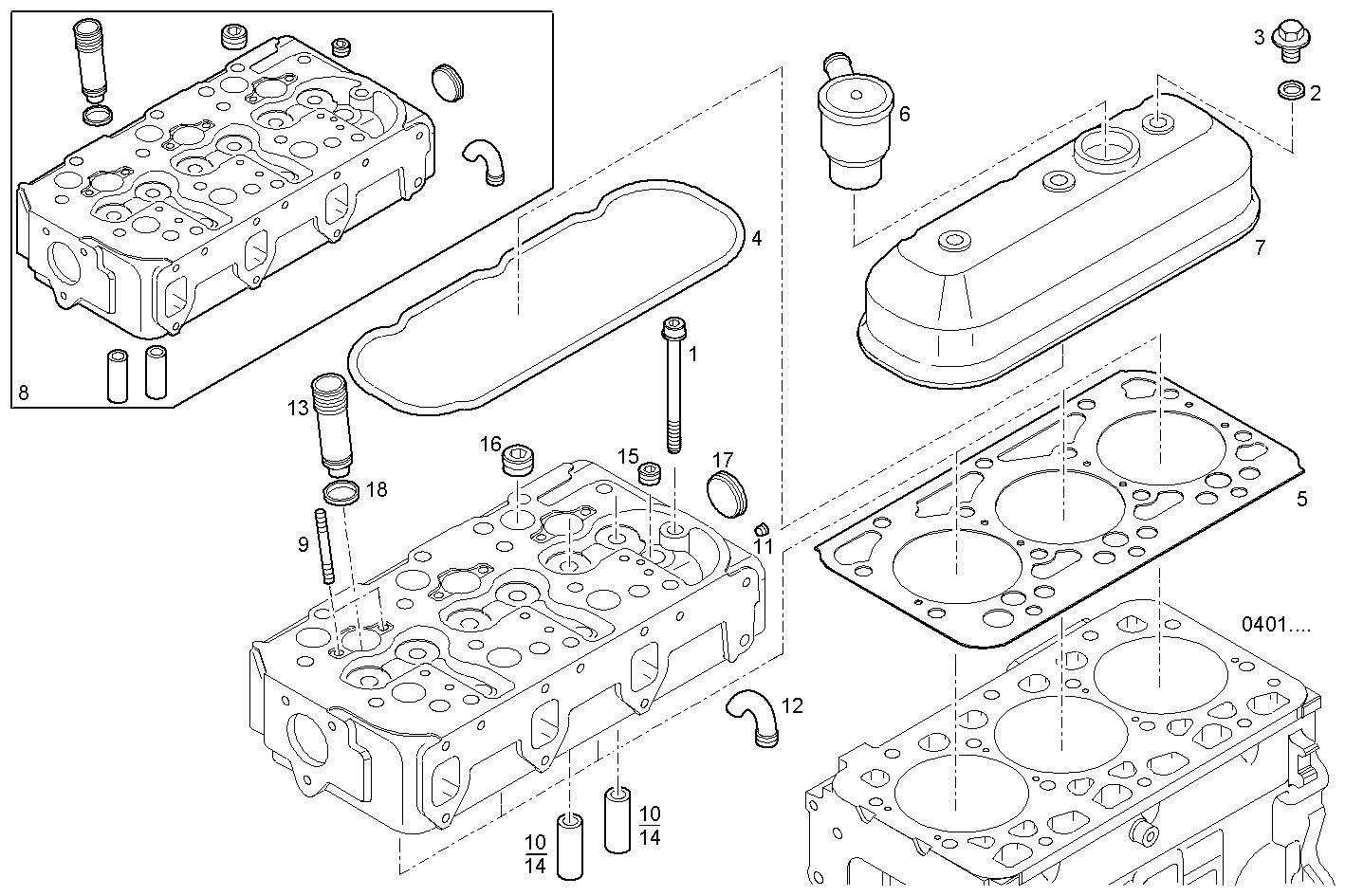

0610.035/01 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 4796457 CYL.HEAD STUD
2 98416134 WASHER [from 555940]
3 98417659 NUT [from 555940]
4 99460554 HEAD COVER GASKET
5 99481361 CYL.HEAD GASKET SP=1,55 MM
5 98472011 CYL.HEAD GASKET SP=1,35 MM
6 504058466 BREATHER
7 99460556 CYL. HEAD COVER
8 504067369 CYLINDER HEAD ASSY
9 500380521 STUD M8X12X45
10 4802127 VALVE GUIDE +0,2
11 99434231 THREADED PLUG M10X1,25
12 4818862 WATER CONVEYOR
13 4770859 NOZZLE HOLDER SEAT
14 4802126 VALVE GUIDE
15 14282170 LOCK PLUG Ø20 MM
16 16990870 LOCK PLUG Ø28 MM
17 16991370 LOCK PLUG Ø45 MM
18 17278981 O-RING Ø25,12 MM SP=1,78 MM
