8035.05M.940

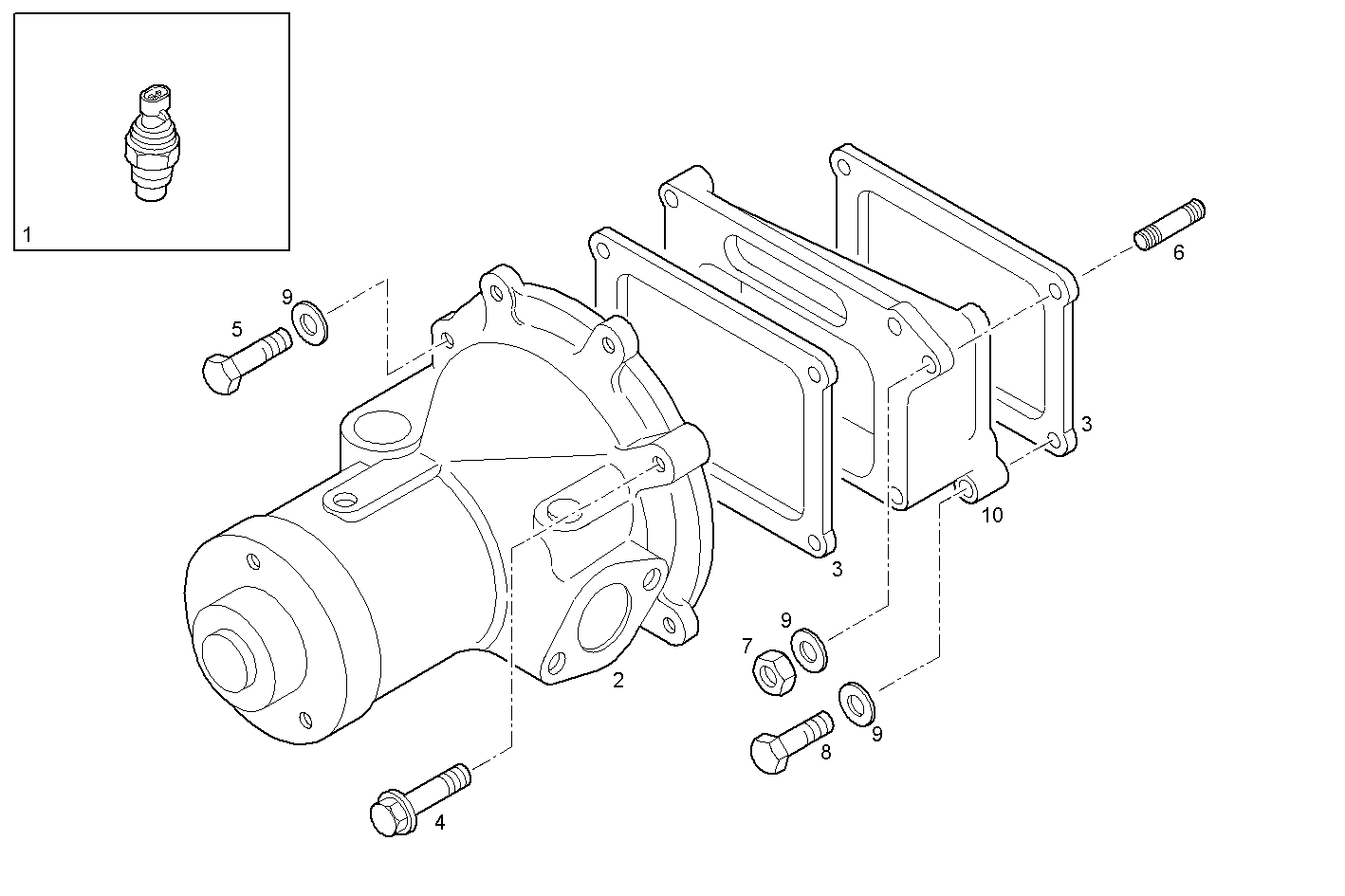

3201.025 WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504101267 | THERMOSWITCH |
| 2 | 504065104 | WATER PUMP |
| 3 | 98400776 | FLAT ENGINE GASKET |
| 4 | 10923624 | SCREW |
| 5 | 15888734 | HEXAGON BOLT M10X1,25X55 MM |
| 6 | 13449910 | STUD M10X1,25X40 MM |
| 7 | 12164740 | HEXAGON NUT M10X1,25 |
| 8 | 11234731 | HEXAGON BOLT M10X1,25X45 MM |
| 9 | 17090174 | SPRING WASHER Ø10X20 MM |
| 10 | 4840211 | SUPPORT [from 02-97] |
