8035.05M.940

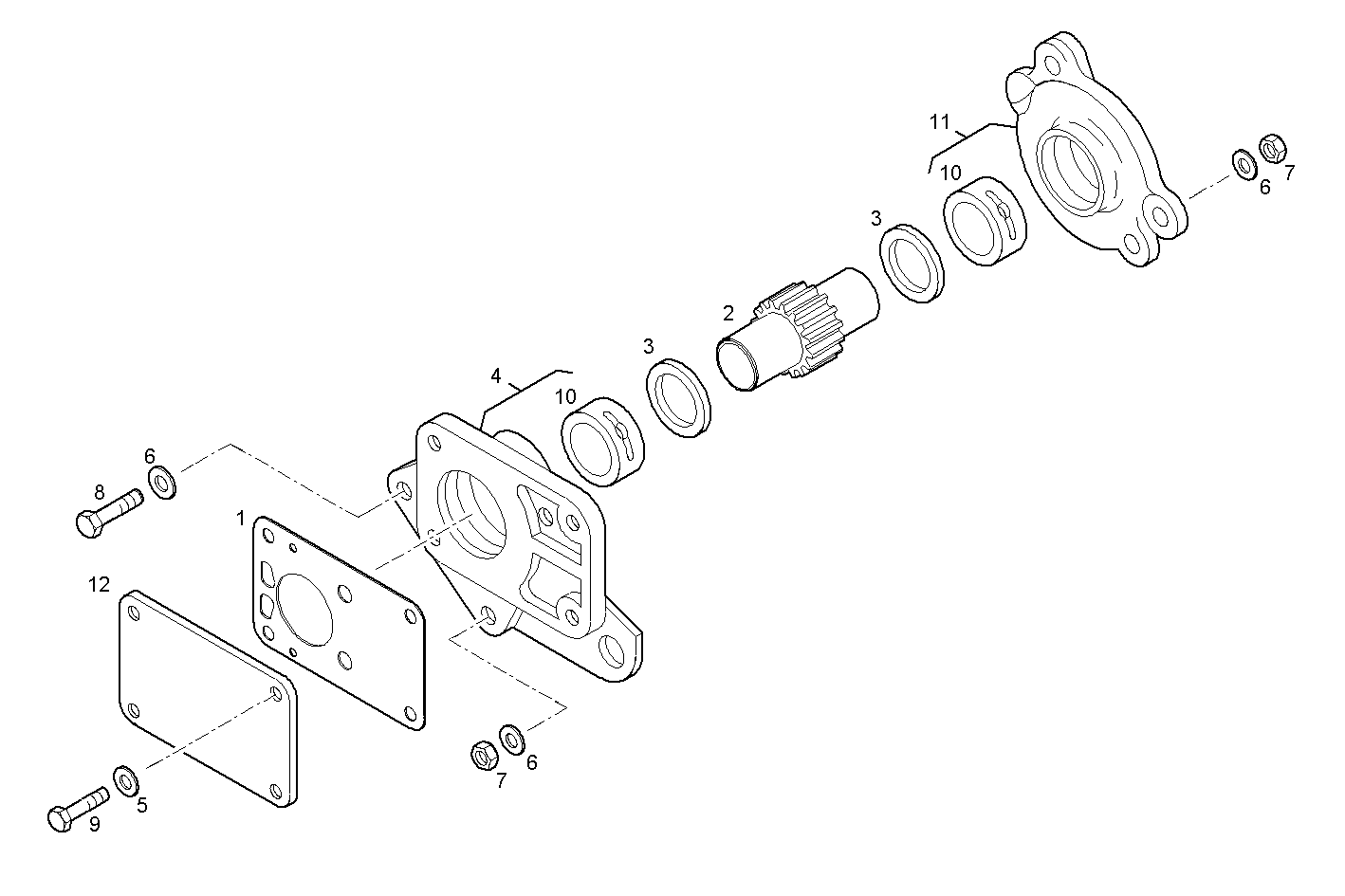

3500.012 POWER TAKE OFF
| Item | Part number | Description |
|---|---|---|
| 1 | 504092108 | FLAT ENGINE GASKET |
| 2 | 504077391 | POWER TAKE OFF SHAFT |
| 3 | 500330052 | RING |
| 4 | 98469090 | SUPPORT ASSY |
| 5 | 17798174 | SPRING WASHER Ø6,1X11,8 MM |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 17037925 | HEXAGON NUT M8X1,25 |
| 8 | 16606424 | HEXAGON BOLT M8X65 MM |
| 9 | 10902321 | HEXAGON BOLT M6X18 MM (8.8) |
| 10 | 4788087 | BUSH VANDERVELL |
| 11 | 4771242 | SUPPORT ASSY |
| 12 | 564530 | COVER |
