8035E00.00

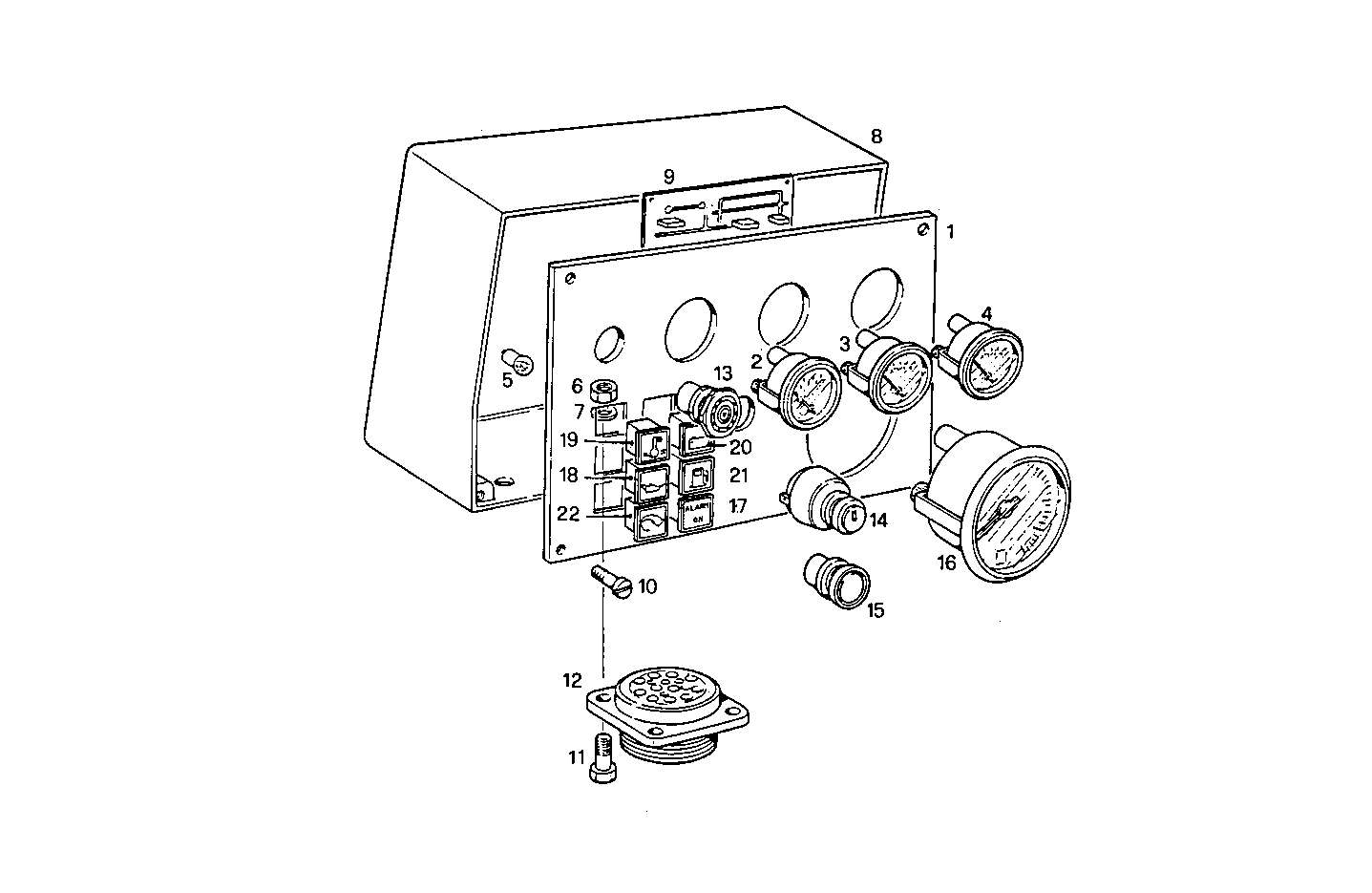

T3867005 ELECTRIC INSTRUMENTS PANEL - (components)
| Item |
Part number |
Description |
|
1 |
8006043 |
PLATE |
|
2 |
8025335 |
PRESSURE GAUGE |
|
3 |
8025333 |
THERMOMETER |
|
4 |
8025337 |
VOLTMETER |
|
5 |
14143990 |
LAMP |
|
6 |
17037621 |
HEXAGON NUT M4 |
|
7 |
17094204 |
WASHER Ø4X8X0,8 MM |
|
8 |
8103656 |
COVER |
|
9 |
8005916 |
ELECTRONIC CARD |
|
10 |
18019514 |
SCREW M4X10 |
|
11 |
17130814 |
SCREW |
|
12 |
8100339 |
CONNECTION |
|
13 |
8005918 |
ACOUSTIC HORN |
|
14 |
8113712 |
SWITCH |
|
15 |
8105611 |
PUSH BUTTON STOP |
|
16 |
8025330 |
REVOLUTION COUNTER |
|
17 |
8005919 |
WARNING LIGHT |
|
18 |
8005920 |
WARNING LIGHT |
|
19 |
8005921 |
WARNING LIGHT |
|
20 |
8005922 |
LUMINOUS INDICATOR |
|
21 |
8005923 |
WARNING LIGHT |
|
22 |
8005924 |
WARNING LIGHT |
