8035E00.01

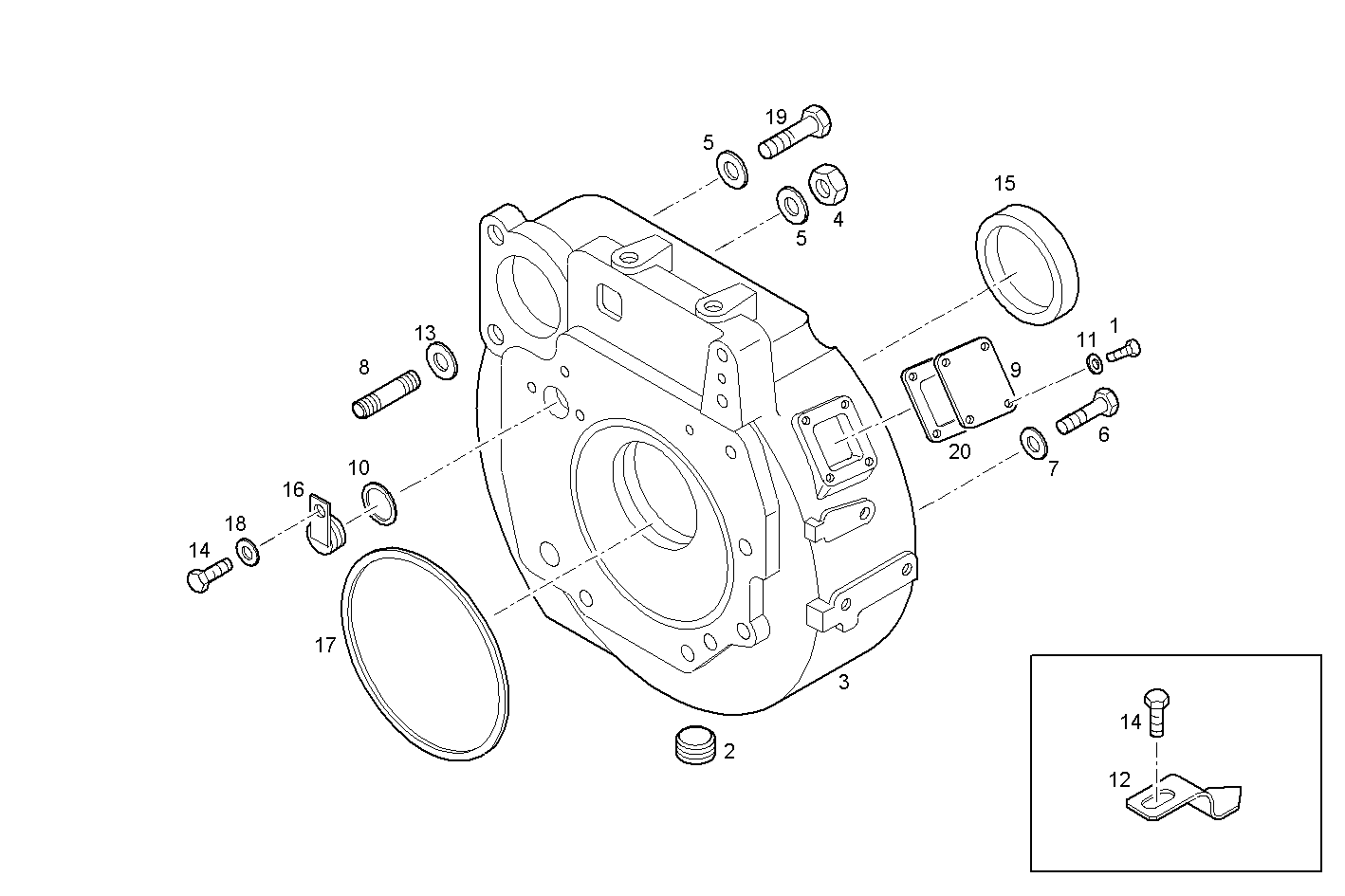

0430.006/02 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 15000724 HEXAGON BOLT M8X22 MM (8.8)
2 14325601 LOCK PLUG M35X1,5
3 500331916 FLYWHEEL HOUSING
4 17038725 NUT M14
5 17091974 SPRING WASHER Ø14X32 MM SP=3,4 MM
6 11306924 HEXAGON BOLT M10X1,25X30 MM
7 17090174 SPRING WASHER Ø10X20 MM
8 10839710 DOWEL PIN Ø10X15 MM
9 500330791 COVER
10 17289281 O-RING Ø34,5 MM SP=3,53 MM
11 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
12 4607466 CONNECTING PLATE
13 17094904 WASHER Ø8X16X1,6 MM
14 16605424 SCREW M8X16 MM (8.8)
15 99457401 SHAFT SEAL CORCOS
16 4718740 PLUG
17 14483081 O-RING Ø5,33X196,2 MM
18 17089574 WASHER Ø8X16 MM
19 16612324 HEXAGON BOLT M14X35 MM
20 98417986 FLAT ENGINE GASKET
