8035E00.01

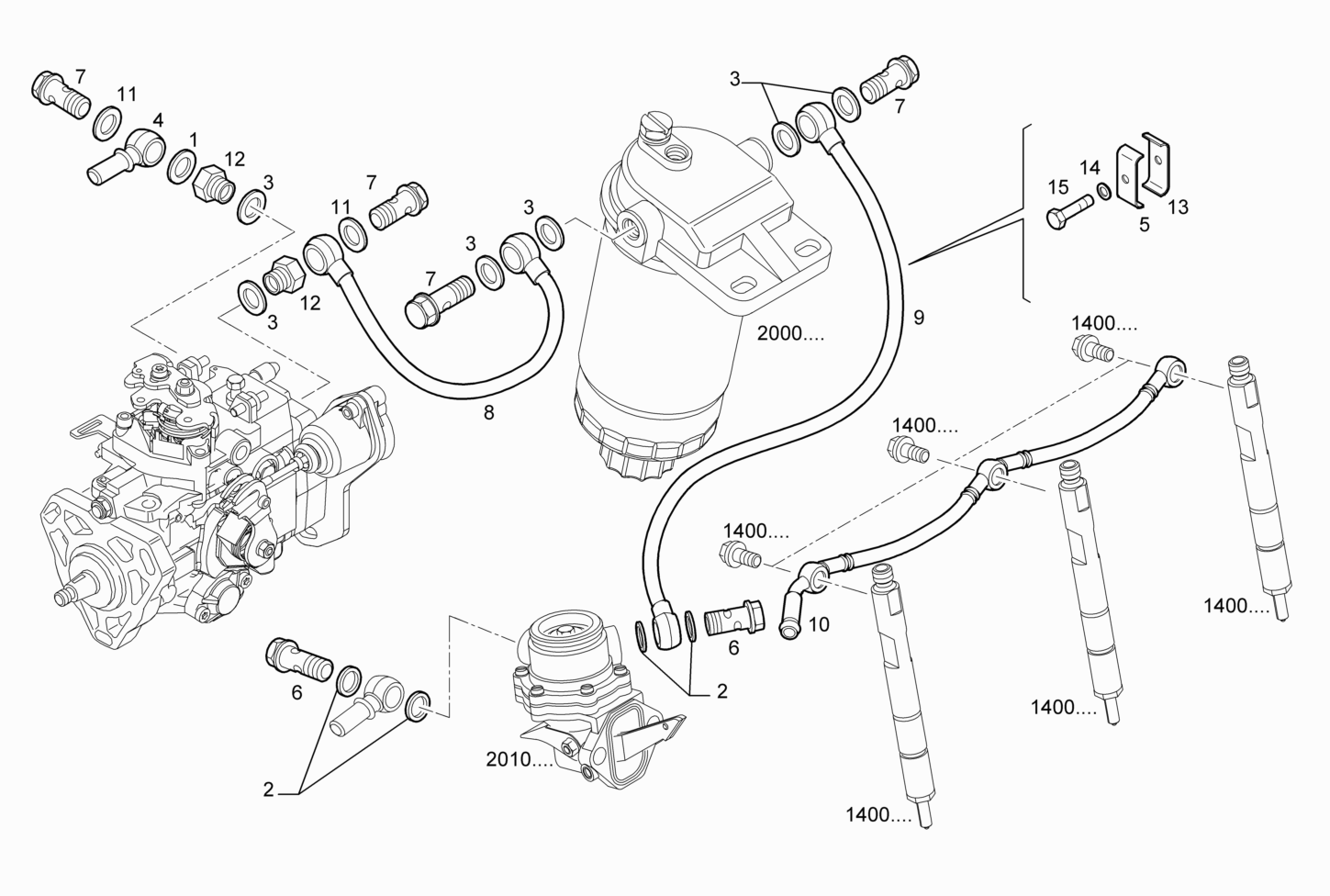

2030.022 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 99489017 | SEAL GASKET Ø12X20 MM SP=1,5 MM |
| 2 | 98474308 | SEAL GASKET Ø14X22 MM |
| 3 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
| 4 | 98416591 | SWIVEL COUPLING |
| 5 | 607942 | CLIP |
| 6 | 504081282 | SCREW CONNECTOR M16X1,5 |
| 7 | 504081281 | SCREW CONNECTOR M12X1,5 |
| 8 | 504047459 | FUEL LINE |
| 9 | 504047458 | FUEL LINE |
| 10 | 500319350 | FUEL LINE |
| 11 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 12 | 4802434 | THREADED UNION M12X1,5 |
| 13 | 4002890 | CLIP |
| 14 | 17088471 | SPRING WASHER Ø6X12 MM SP=1,2 MM |
| 15 | 16603625 | HEXAGON BOLT M6X16 MM |
