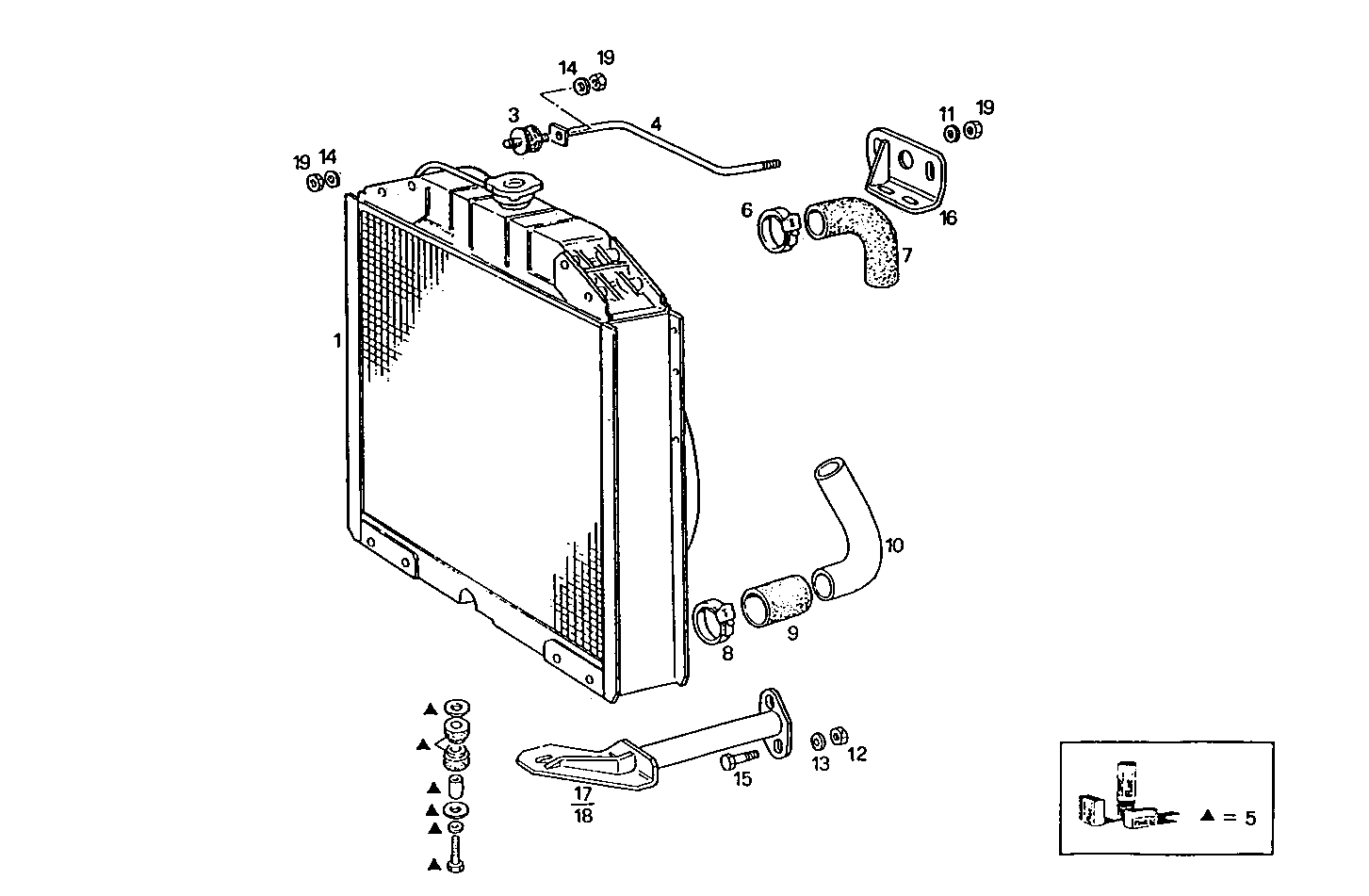

| Item |
Part number |
Description |
|
1 |
8007472 |
WATER RADIATOR ASSY |
|
3 |
4927882 |
RUBBER PAD |
|
4 |
8023991 |
TIE ROD |
|
5 |
8090341 |
KIT-RADIATOR A.S. COMPLETE |
|
6 |
17764891 |
CLIP Ø40/60 MM |
|
7 |
8026743 |
RUBBER SLEEVE |
|
8 |
17764791 |
CLIP Ø32/50 MM |
|
9 |
596152 |
RUBBER SLEEVE |
|
10 |
8077105 |
WATER PIPE |
|
11 |
17089774 |
SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
|
12 |
17038721 |
NUT M14X2 [from ...] |
|
13 |
17091674 |
WASHER Ø14X27X3,0 MM |
|
14 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
15 |
16612324 |
HEXAGON BOLT M14X35 MM |
|
16 |
8023950 |
SUPPORT |
|
17 |
8030252 |
SUPPORT RIGHT |
|
18 |
8030253 |
SUPPORT LEFT |
|
19 |
17037931 |
HEXAGON NUT M8X1,25 |
