8035E15.00A500

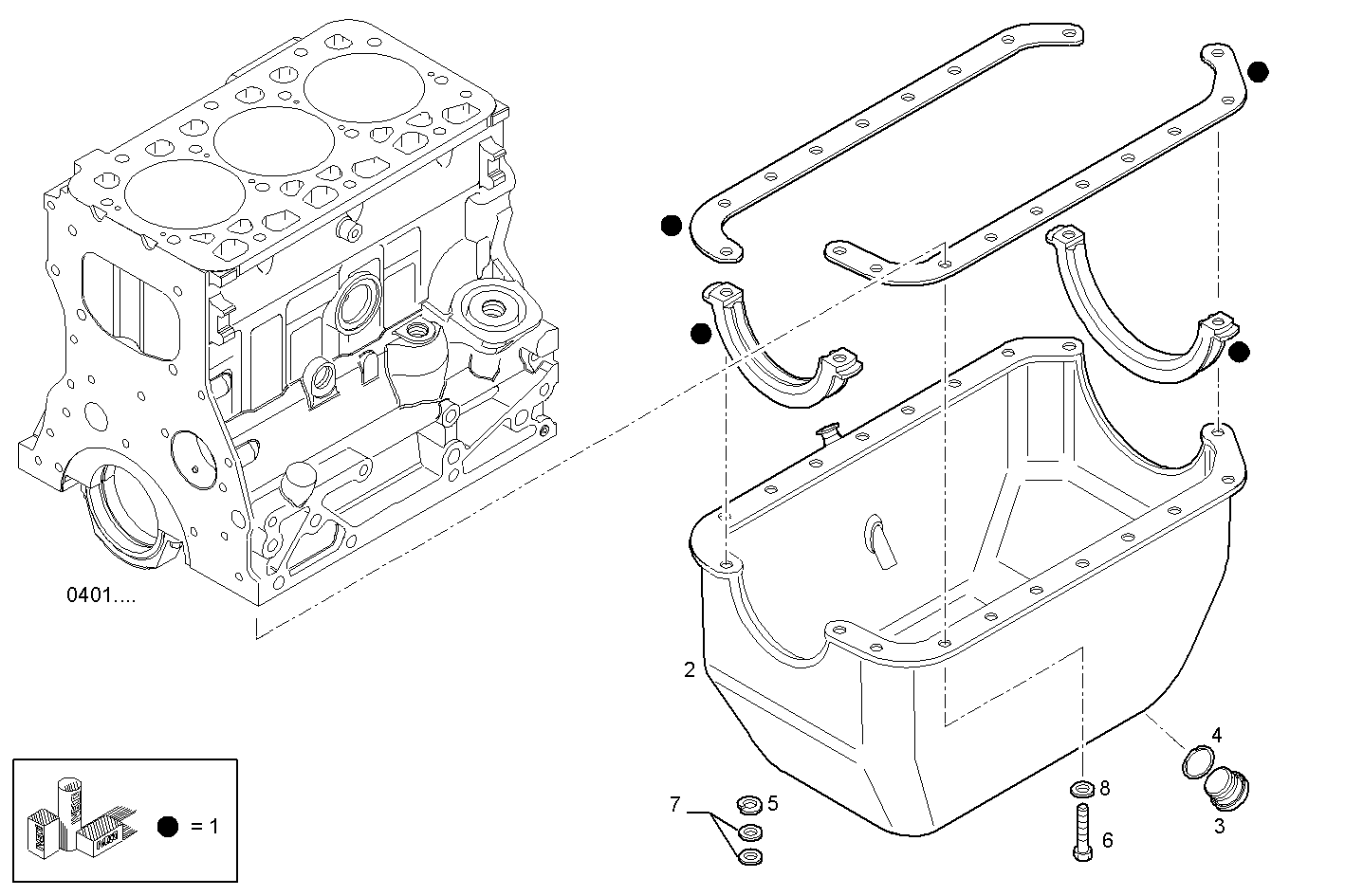

0420.007 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8093451 | KIT-OILSUMP GASKET |
| 2 | 500376485 | OIL SUMP ASSY |
| 3 | 4847102 | THREADED PLUG |
| 4 | 17282180 | O-RING Ø21,8 MM SP=2,6 MM |
| 5 | 17798274 | SPRING WASHER Ø8,2X14,9 MM |
| 6 | 10923024 | HEXAGON BOLT M10X1,25X20 MM |
| 7 | 17094914 | WASHER 8x16 |
| 8 | 17095014 | WASHER Ø10X18 MM |
