8035M06.01

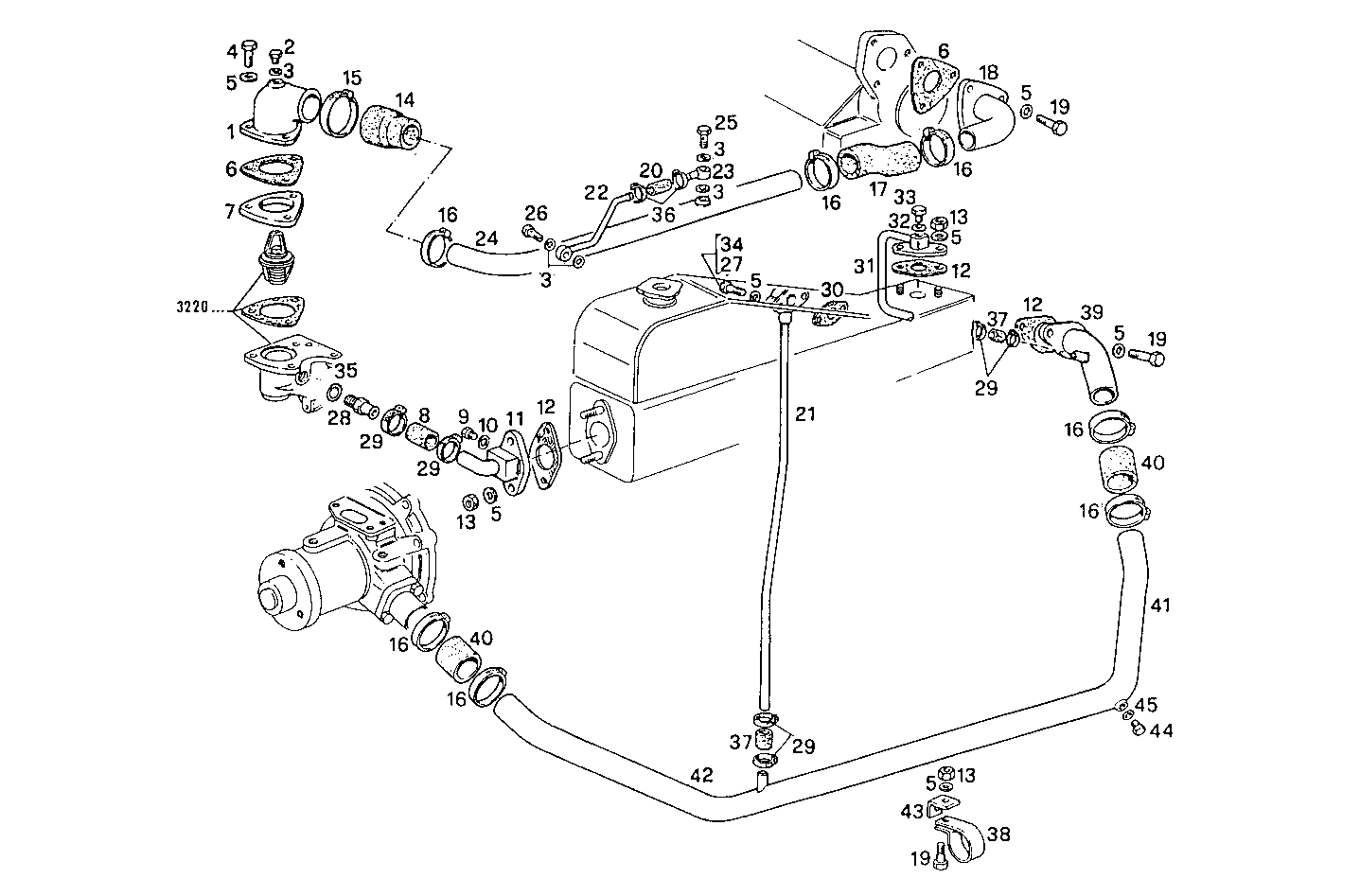

3210.213/02 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8107202 WATER PIPE
2 16992240 THREADED PLUG M12X1,5
3 4858607 WASHER Ø12X17 MM SP=1,5 MM
4 16605734 HEXAGON BOLT M8X30 MM
5 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
6 98482590 GASKET
7 8107226 SPACING BAR
8 98418717 WATER HOSE Ø18 MM
9 16992340 THREADED PLUG M14X1,5
10 4858608 SEAL GASKET dia.14x19,5x1,5
11 8107731 WATER PIPE
12 8009640 GASKET
13 17037931 HEXAGON NUT M8X1,25
14 98447313 WATER HOSE Ø45 MM/Ø38 MM
15 17764893 CLIP Ø40/60 MM
16 17764793 CLIP Ø32/50 MM
17 4927830 RUBBER SLEEVE
18 8107720 PIPE SOCKET
19 16605624 HEXAGON BOLT M8X25 MM (8.8)
20 4927825 WATER HOSE
21 8029673 WATER PIPE
22 8011350 WATER PIPE
23 98434018 THREADED UNION
24 8029672 WATER PIPE
25 4864082 BANJO BOLT M12X1,5X25 MM
26 8009696 SCREW CONNECTOR M12X1,5X25
27 16605824 HEXAGON BOLT M8X35 MM
28 4760312 THREADED UNION
29 17764593 CLIP Ø20/32 MM
30 4853970 FLAT ENGINE GASKET
31 8107732 WATER PIPE
32 4858609 WASHER Ø16X22 MM SP=1,5 MM
33 16992440 THREADED PLUG M16X1,5
34 16605524 HEXAGON BOLT M8X20 MM
35 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
36 18088293 CLIP Ø12/20 MM
37 17737687 WATER HOSE
38 4936741 CLIP
39 8107759 WATER PIPE
40 17742887 RUBBER SLEEVE
41 8110284 WATER PIPE
42 8021599 WATER PIPE
43 4934319 RETAINER
44 16992140 PLUG M10X1
45 4858606 GASKET Ø10X14X1 MM
