8035U00.01

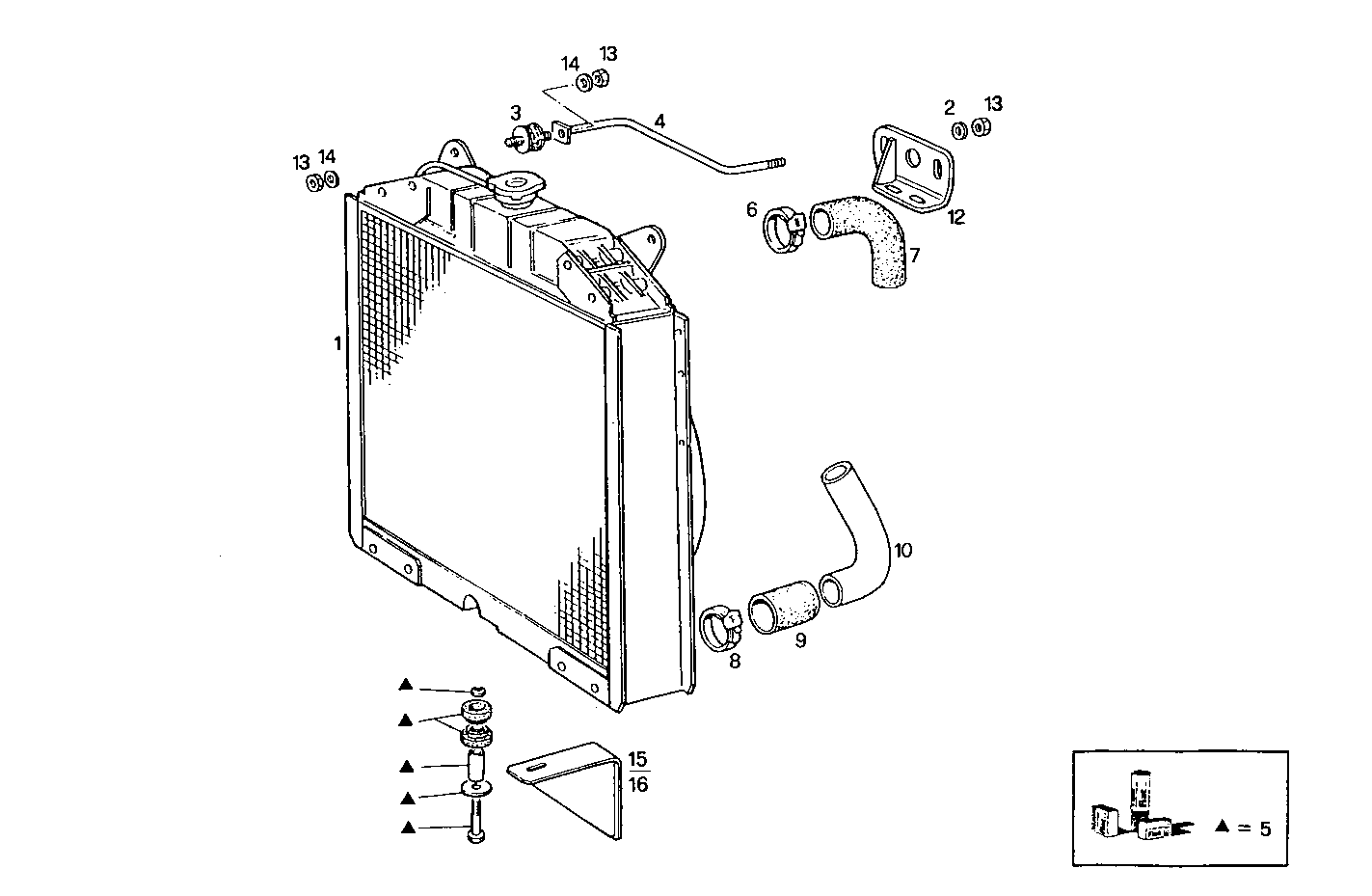

A22010058 RADIATOR FOR SETTING TILL MAX POWER
| Item | Part number | Description |
|---|---|---|
| 1 | 8007472 | WATER RADIATOR ASSY |
| 2 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 3 | 4927882 | RUBBER PAD |
| 4 | 8023991 | TIE ROD |
| 5 | 8090341 | KIT-RADIATOR A.S. COMPLETE |
| 6 | 17764891 | CLIP Ø40/60 MM |
| 7 | 8026743 | RUBBER SLEEVE |
| 8 | 17764791 | CLIP Ø32/50 MM |
| 9 | 596152 | RUBBER SLEEVE |
| 10 | 8077105 | WATER PIPE |
| 12 | 8023950 | SUPPORT |
| 13 | 17037931 | HEXAGON NUT M8X1,25 |
| 14 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 15 | 8104250 | SUPPORT RIGHT |
| 16 | 8104274 | SUPPORT LEFT |
