8035U00.01A800

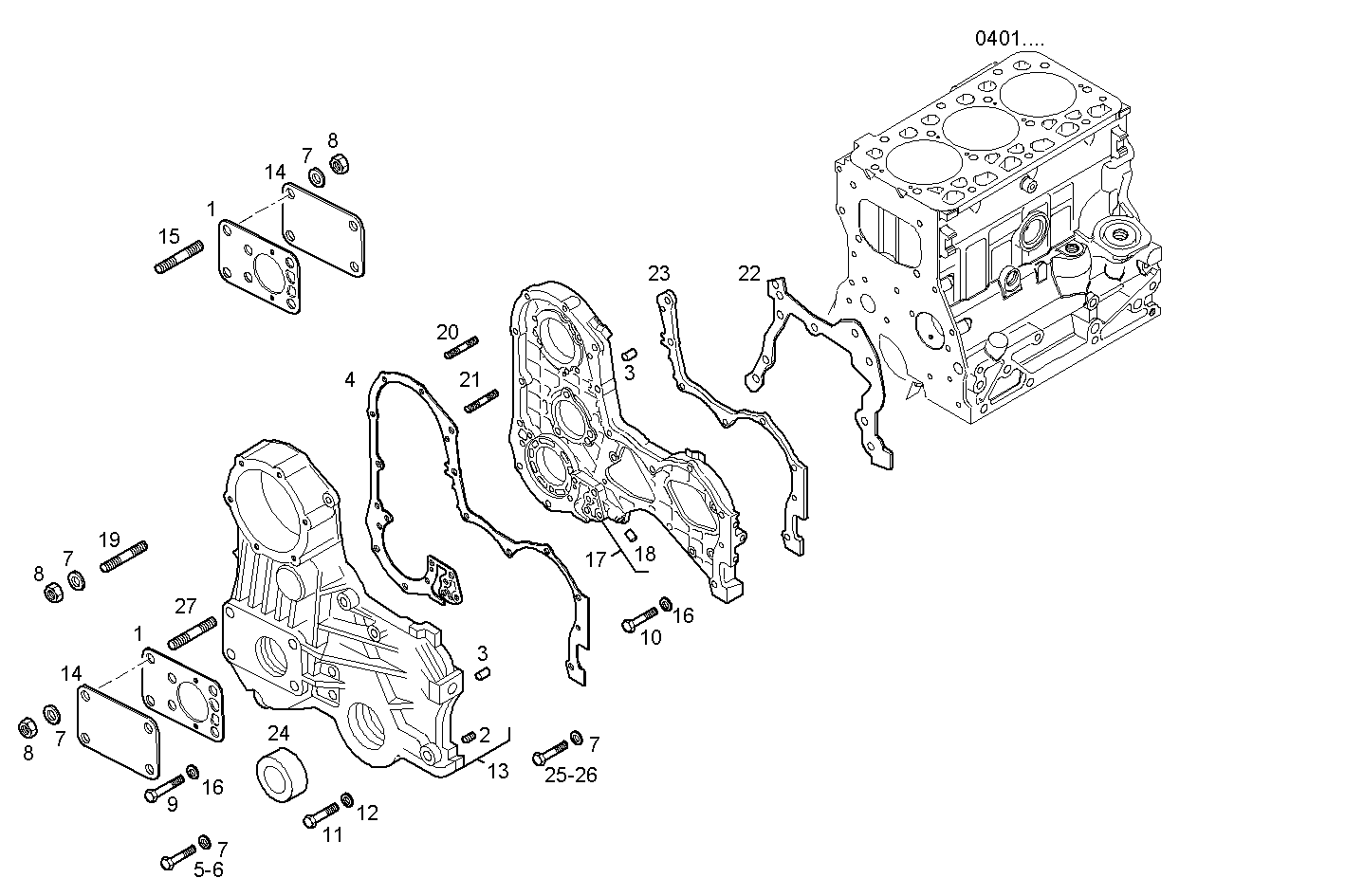

0430.002/01 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 504092108 FLAT ENGINE GASKET
2 13526170 THREADED INSERT M10X1,25X20 MM
3 10839610 DOWEL PIN Ø8 MM
4 98418138 FLAT ENGINE GASKET
5 16044924 SCREW M8X1,25X85 MM
6 16606524 HEXAGON BOLT M8X70 MM
7 17094904 WASHER Ø8X16X1,6 MM
8 17037925 HEXAGON NUT M8X1,25
9 16606124 HEXAGON BOLT M8X50 MM
10 16605824 HEXAGON BOLT M8X35 MM
11 15888824 HEXAGON BOLT M10X1,25X70 MM
12 17095014 WASHER Ø10X18 MM
13 99479056 FRONT C.CASE COVER ASSY
14 500315902 COVER
15 16729324 STUD M8X12X20 MM
16 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
17 504120950 TIMINGGEAR HOUSIN ASSY
18 4605220 OIL NOZZLE
19 13543624 STUD M8X16X30
20 13546921 STUD M8X12X22 MM
21 504122008 STUD M8X1,25X18X22 MM
22 98424046 FLAT ENGINE GASKET
23 98432469 FLAT ENGINE GASKET
24 99469265 SHAFT SEAL CORCOS
25 15000724 HEXAGON BOLT M8X22 MM (8.8)
26 16605734 HEXAGON BOLT M8X30 MM
27 13517630 STUD M8X1,25X50 MM
