8035U00.01A800

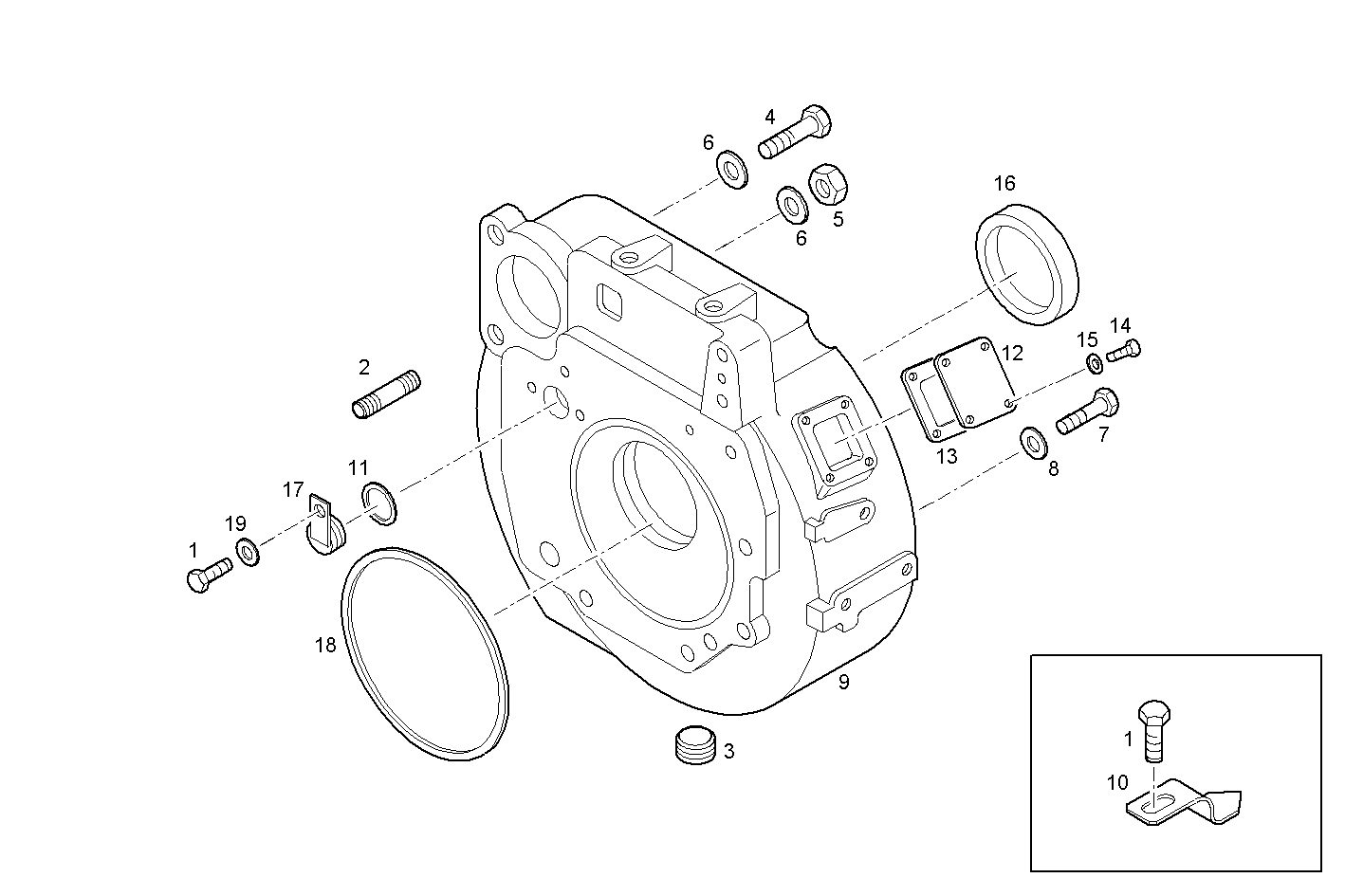

0430.002/02 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 16605424 SCREW M8X16 MM (8.8)
2 10839710 DOWEL PIN Ø10X15 MM
3 14325601 LOCK PLUG M35X1,5
4 16612324 HEXAGON BOLT M14X35 MM
5 17038725 NUT M14
6 17091974 SPRING WASHER Ø14X32 MM SP=3,4 MM
7 11306924 HEXAGON BOLT M10X1,25X30 MM
8 17090174 SPRING WASHER Ø10X20 MM
9 500331916 FLYWHEEL HOUSING
10 4607466 CONNECTING PLATE
11 17289281 O-RING Ø34,5 MM SP=3,53 MM
12 500330791 COVER
13 98417986 FLAT ENGINE GASKET
14 15000724 HEXAGON BOLT M8X22 MM (8.8)
15 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
16 99457401 SHAFT SEAL CORCOS
17 4718740 PLUG
18 14483081 O-RING Ø5,33X196,2 MM
19 17089574 WASHER Ø8X16 MM
