8035U00.01A800

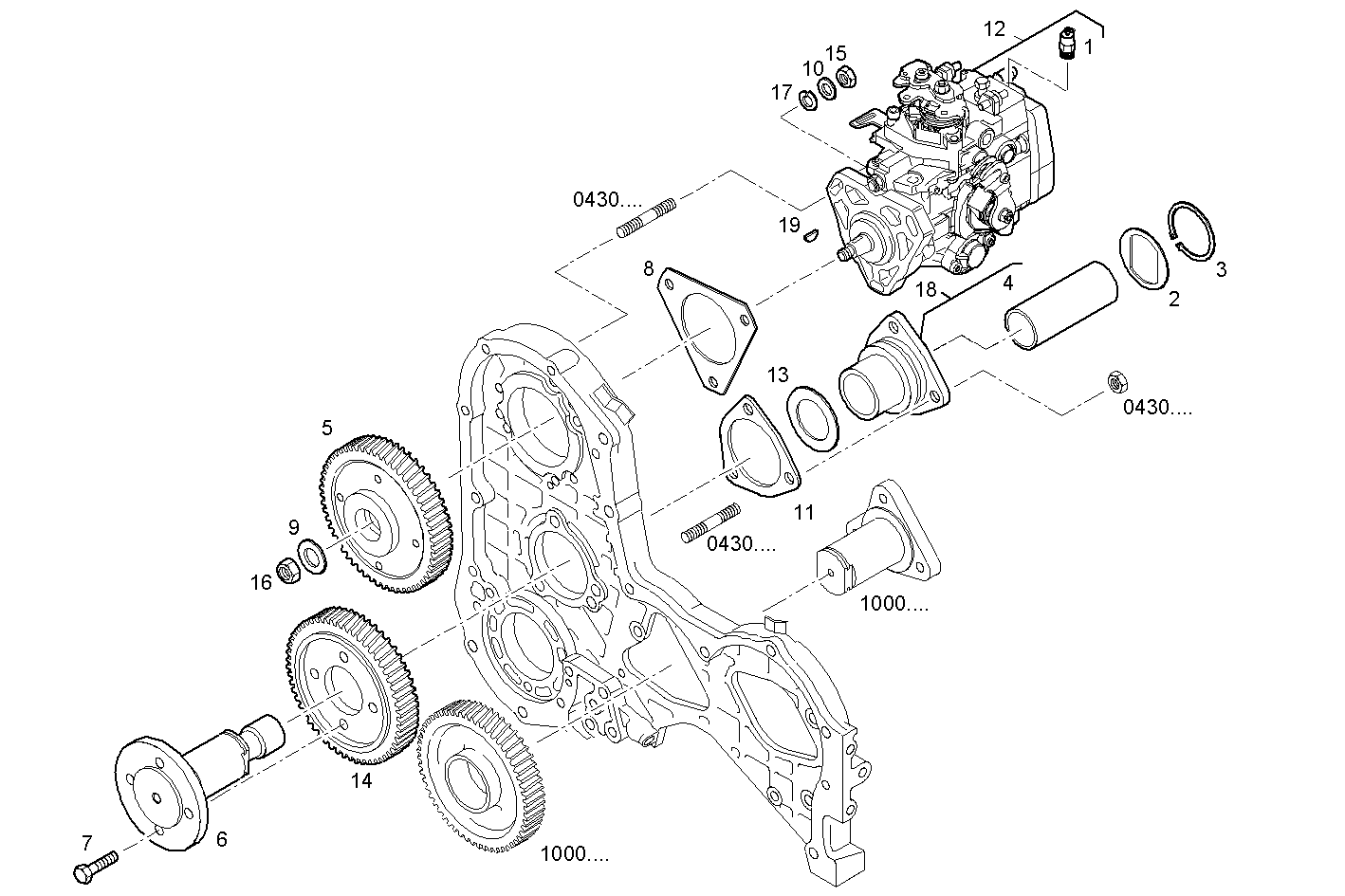

1400.076/02 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 8100253 | ELECTROVALVE 12V |
| 2 | 4667452 | SUPPORT RING |
| 3 | 4769420 | CIRCLIP |
| 4 | 4769418 | BUSH |
| 5 | 98459486 | GEAR |
| 6 | 4784054 | INJECT.PUMP SPIND REAR |
| 7 | 4798845 | SCREW |
| 8 | 4851923 | FLAT ENGINE GASKET |
| 9 | 11194179 | SPRING WASHER �15 MM |
| 10 | 12647124 | WASHER �8X20 MM |
| 11 | 98400787 | FLAT ENGINE GASKET |
| 12 | 99472099 | DISTRIB.INJ.PUMP ASSY |
| 13 | 4769419 | WASHER |
| 14 | 4770056 | INJ.PUMP DRIV.GEA REAR |
| 15 | 17037921 | HEXAGON NUT M8X1,25 |
| 16 | 12164021 | HEXAGON NUT M14X1,5 |
| 17 | 17089474 | SPRING WASHER �8X16 MM SP=1,4 MM |
| 18 | 4784055 | SUPPORT ASSY |
| 19 | 17221020 | KEY M12X110 MM |
