8035U00.01A800

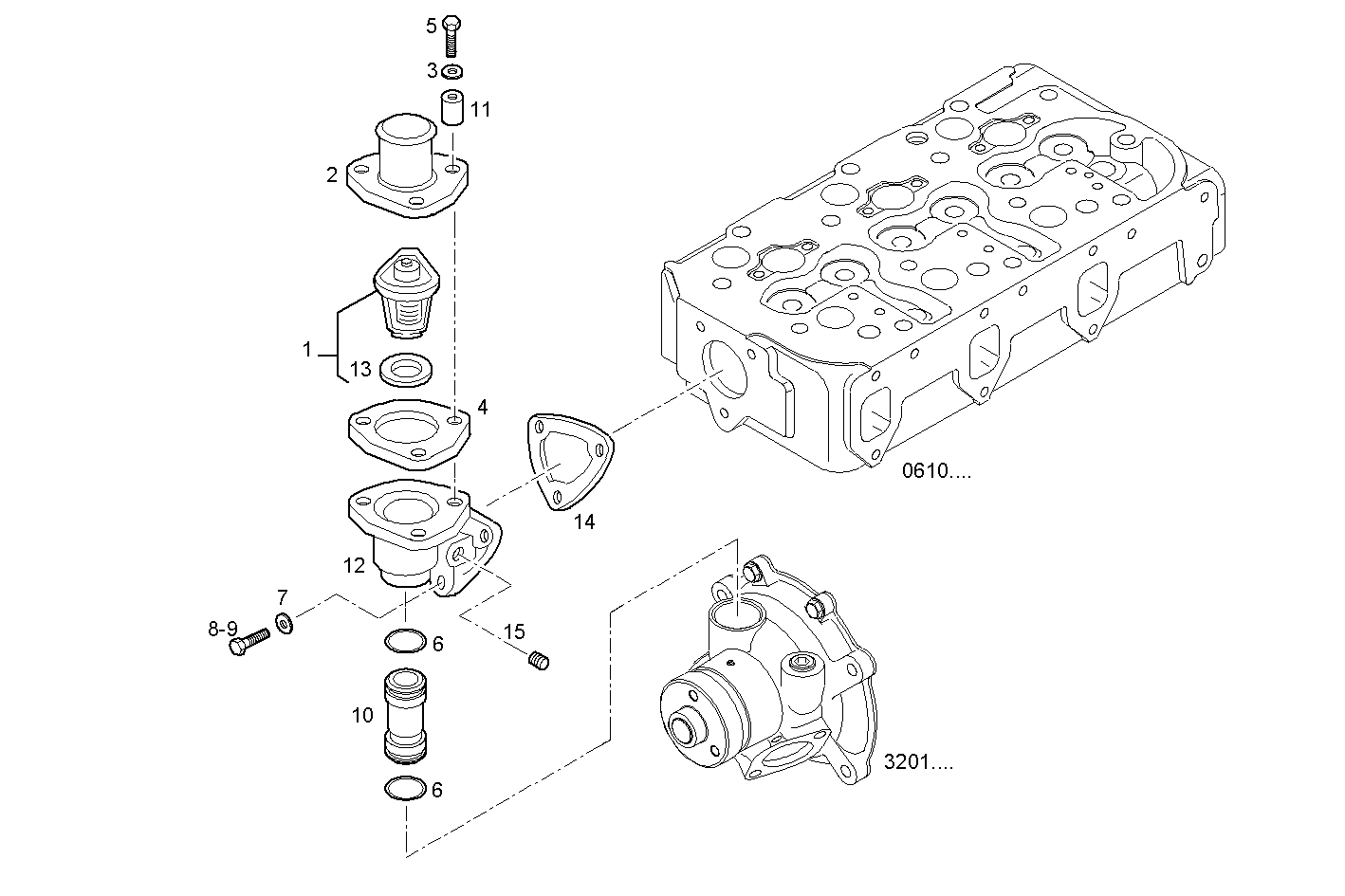

3260.057 TEMPERATURE REGULATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 98463637 | THERMOSTAT ASSY |
| 2 | 4661543 | COVER |
| 3 | 17089574 | WASHER �8X16 MM |
| 4 | 98482590 | GASKET |
| 5 | 16605625 | HEXAGON BOLT M8X25 |
| 6 | 17282281 | O-RING 2,62x23,47 |
| 7 | 17090174 | SPRING WASHER �10X20 MM |
| 8 | 11234731 | HEXAGON BOLT M10X1,25X45 MM |
| 9 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 10 | 504123603 | PIPE SOCKET |
| 11 | 13605711 | SPACER �8,5x18 MM |
| 12 | 4823619 | THERMOSTAT BODY |
| 13 | 4823212 | RUBBER GASKET |
| 14 | 4851926 | FLAT ENGINE GASKET |
| 15 | 16997611 | THREADED PLUG M20X1,5 |
