8035U06.05A800

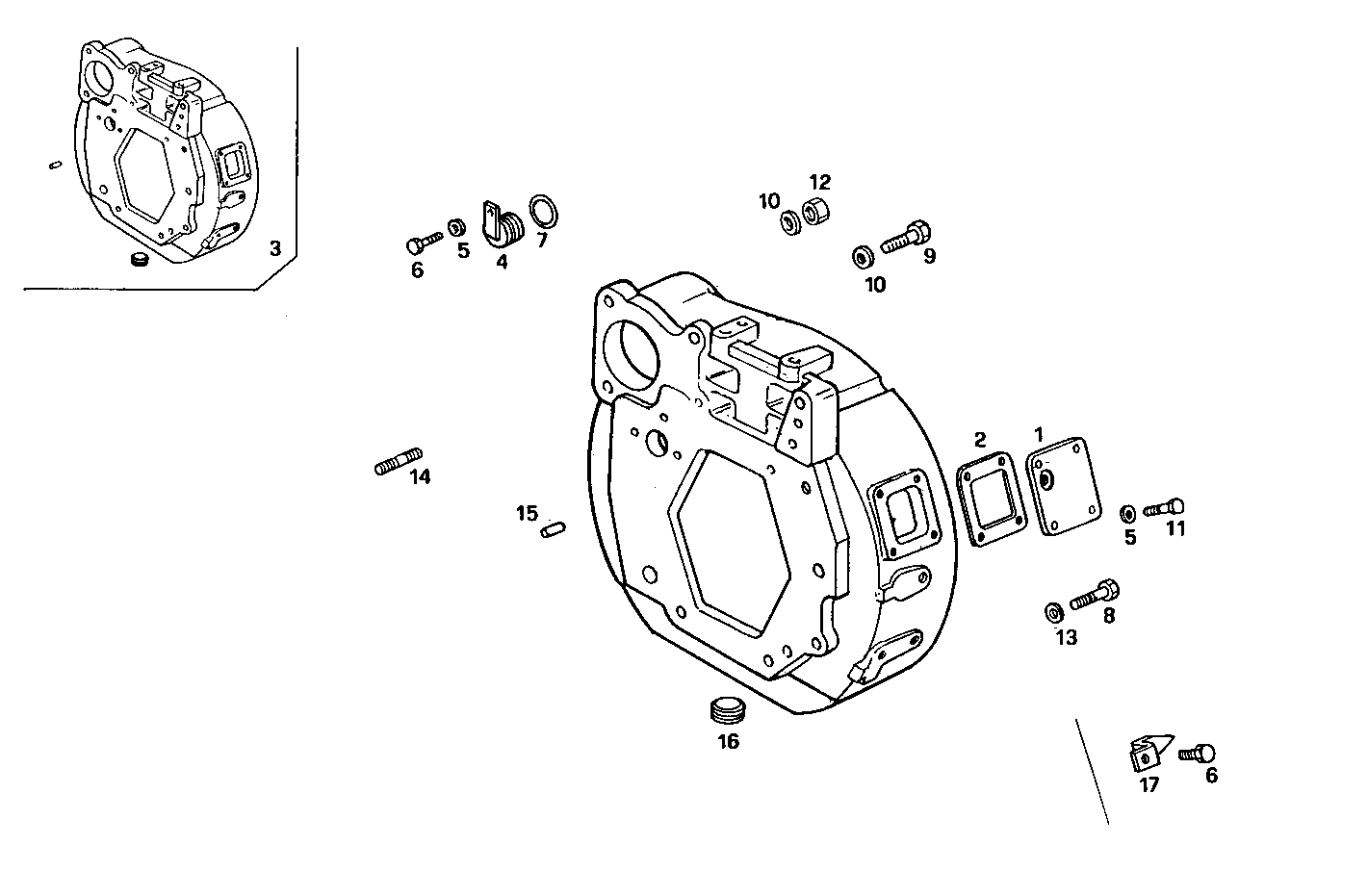

0430.190/02 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 8025809 COVER
2 98417986 FLAT ENGINE GASKET
3 8031534 FLYWHEEL HOUSING ASSY
4 4718740 PLUG
5 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
6 16605424 SCREW M8X16 MM (8.8)
7 17289281 O-RING Ø34,5 MM SP=3,53 MM
8 11306921 SCREW M10X1,25X30
9 16612324 HEXAGON BOLT M14X35 MM
10 17091974 SPRING WASHER Ø14X32 MM SP=3,4 MM
11 16043521 SCREW M8X22
12 17038721 NUT M14X2 [from ...]
13 17090274 WASHER Ø10X20 MM
14 16735724 STUD M14X20X55 [from ...]
15 17275510 DOWEL PIN Ø10 MM
16 16998011 PLUG M35X1,5
17 4607466 CONNECTING PLATE
