8040SC25.00

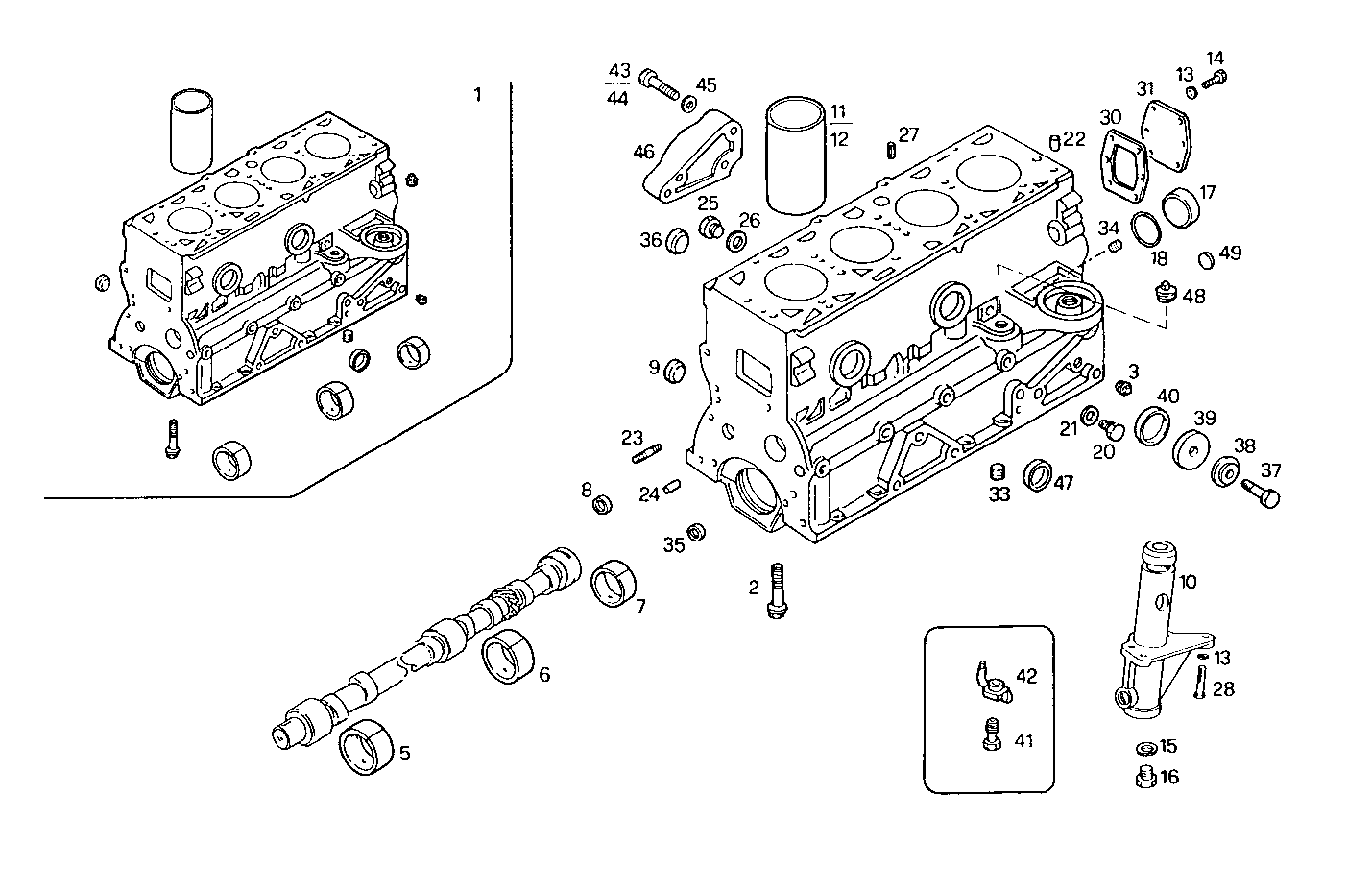

0400.093 CRANKCASE

Iveco/FPT CRANKCASE

Item Part number Description
1 99445753 CRANKCASE ASSY
2 4792169 SCREW
3 99434231 THREADED PLUG M10X1,25
5 4603449 CAMSHAFT BEARING MOGUL
6 4603450 CAMSHAFT BEARING CLEVITE
7 4603451 CAMSHAFT BEARING MOGUL
8 14328201 LOCK PLUG M10
9 14282770 LOCK PLUG Ø36 MM
10 500301680 SUPPORT
11 4803030 CYLINDER LINER
12 4803031 CYLINDERLINER +0.2
13 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
14 16043324 HEXAGON BOLT M8X18 MM
15 10296260 SEAL GASKET Ø28X36 MM SP=1,5 MM
16 10278311 THREADED PLUG M28X1,5
17 98412737 LOCK PLUG [from ...]
18 17284481 O-RING Ø58,4 MM SP=2,6 MM [from ...]
20 10300511 LOCK PLUG M12X1,5
21 10298460 SEAL GASKET Ø12X18 MM SP=1,5 MM
22 4846850 DOWEL PIN
23 16730124 STUD M8X60 MM
24 17275410 DOWEL PIN Ø8 MM
25 4665029 LOCK PLUG M42X1,5
26 10265460 SEAL GASKET Ø42X49 MM SP=1,5 MM
27 17254970 DOWEL PIN Ø5 MM
28 16605624 HEXAGON BOLT M8X25 MM (8.8)
30 99445564 FLAT ENGINE GASKET SP=1,5 MM
31 4653282 REAR C.CASE COVER
33 4824539 THREADED PLUG M16X1,5
34 4782452 DOWEL PIN
35 14328501 LOCK PLUG Ø16 MM
36 14327401 PLUG Ø13 MM
37 16605924 SCREW M8X40 MM
38 4716734 WASHER
39 4811892 COVER
40 4600893 GASKET
41 98475228 SCREW CONNECTOR [from 674995]
42 98475474 OIL NOZZLE [from 674995]
43 16610824 SCREW M12X80
44 16611224 HEXAGON BOLT M12X120 MM
45 17095304 WASHER Ø12X24 MM
46 4848295 BRACKET RIGHT
47 14329901 LOCK PLUG Ø40 MM
48 14323811 LOCK PLUG Ø20 MM SP=1,5 MM
49 10160701 LOCK PLUG Ø60 MM [up to ...]
