8040SC25.00

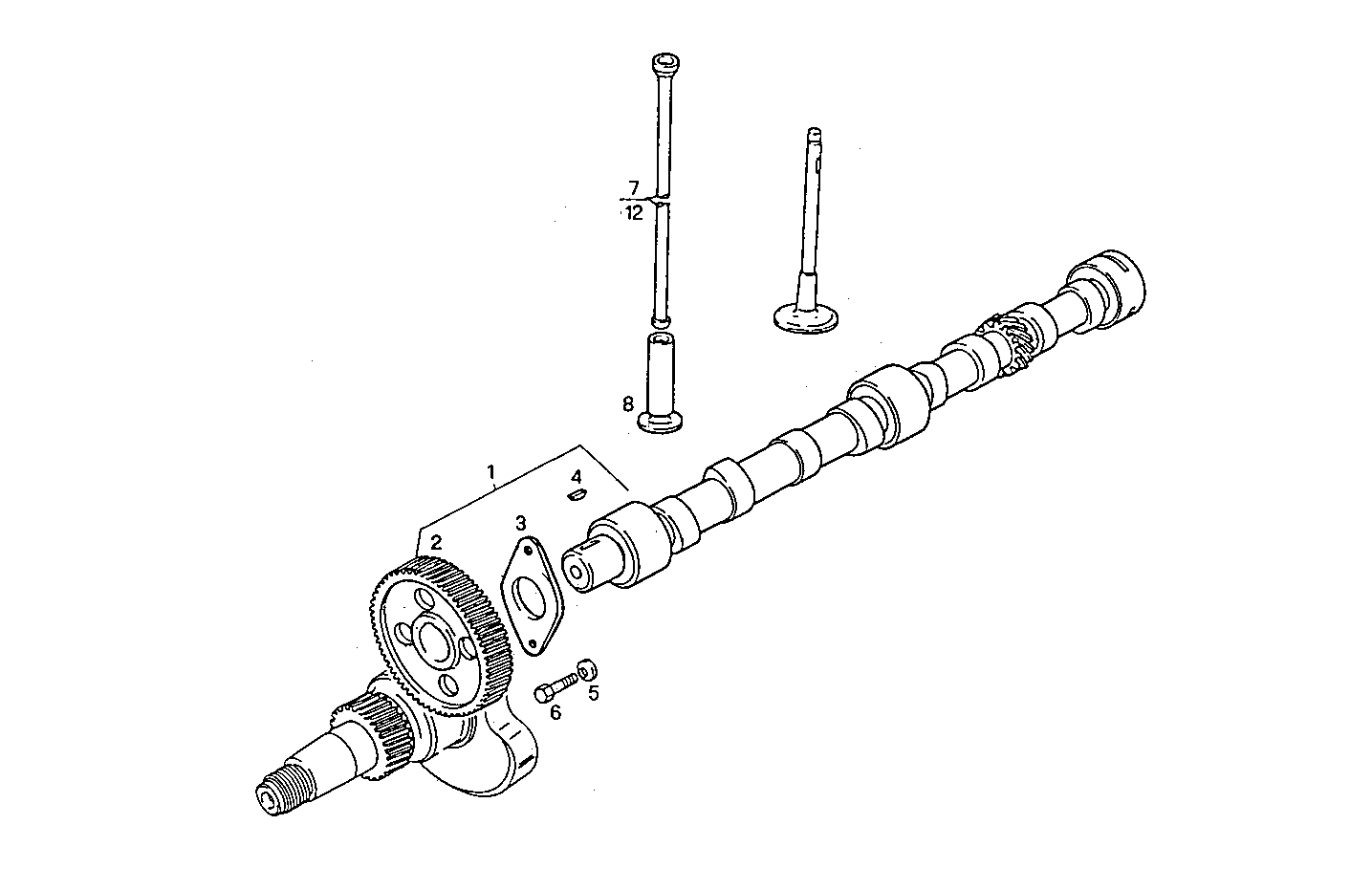

1250.061 TIMING PARTS
| Item | Part number | Description |
|---|---|---|
| 1 | 98420188 | CAMSHAFT ASSY |
| 2 | 98418420 | TIMING INTERM.GEA |
| 3 | 4599398 | PLATE |
| 4 | 17221220 | KEY 5X9 MM |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 16707134 | SOCKET-HEAD SCREW M8X20 MM |
| 7 | 4770454 | PUSHROD |
| 8 | 4689881 | VALVE TAPPET +0,0 MM |
| 12 | 4770455 | PUSHROD |
