8040SC25.00

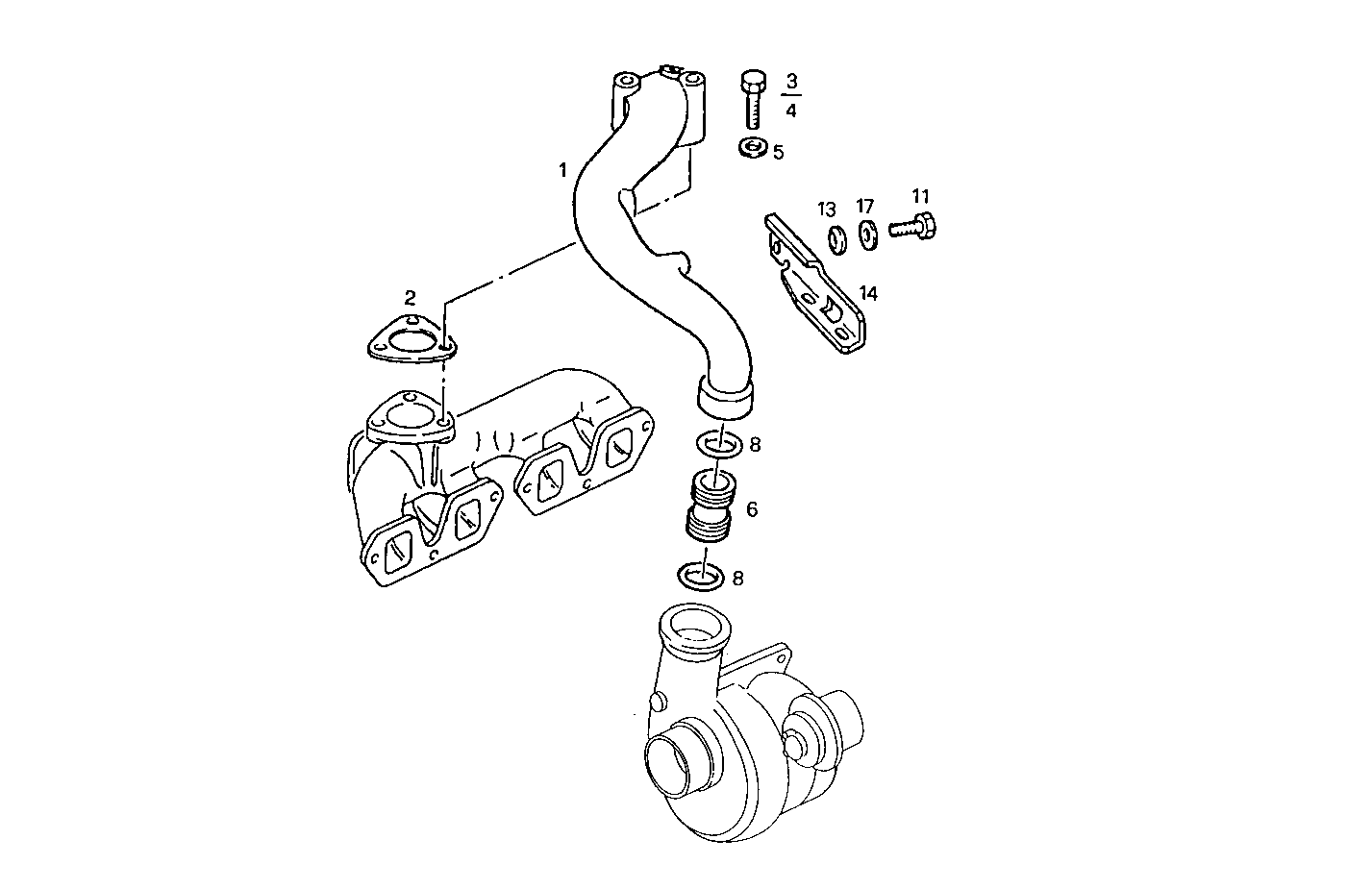

2420.124 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4820097 | SUCTION LINE |
| 2 | 4848529 | FLAT ENGINE GASKET |
| 3 | 15970911 | HEXAGON BOLT M10X1,25X35 MM |
| 4 | 15971421 | HEXAGON BOLT M10X1,25X80 MM |
| 5 | 17095104 | WASHER Ø10X21X2 MM |
| 6 | 4848530 | CONNECTOR SLEEVE |
| 8 | 17295581 | O-RING Ø40,6 MM SP=5,3 MM |
| 11 | 16043521 | SCREW M8X22 |
| 13 | 17090174 | SPRING WASHER Ø10X20 MM |
| 14 | 98416738 | RETAINER |
| 17 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
