8040SC25.00A007

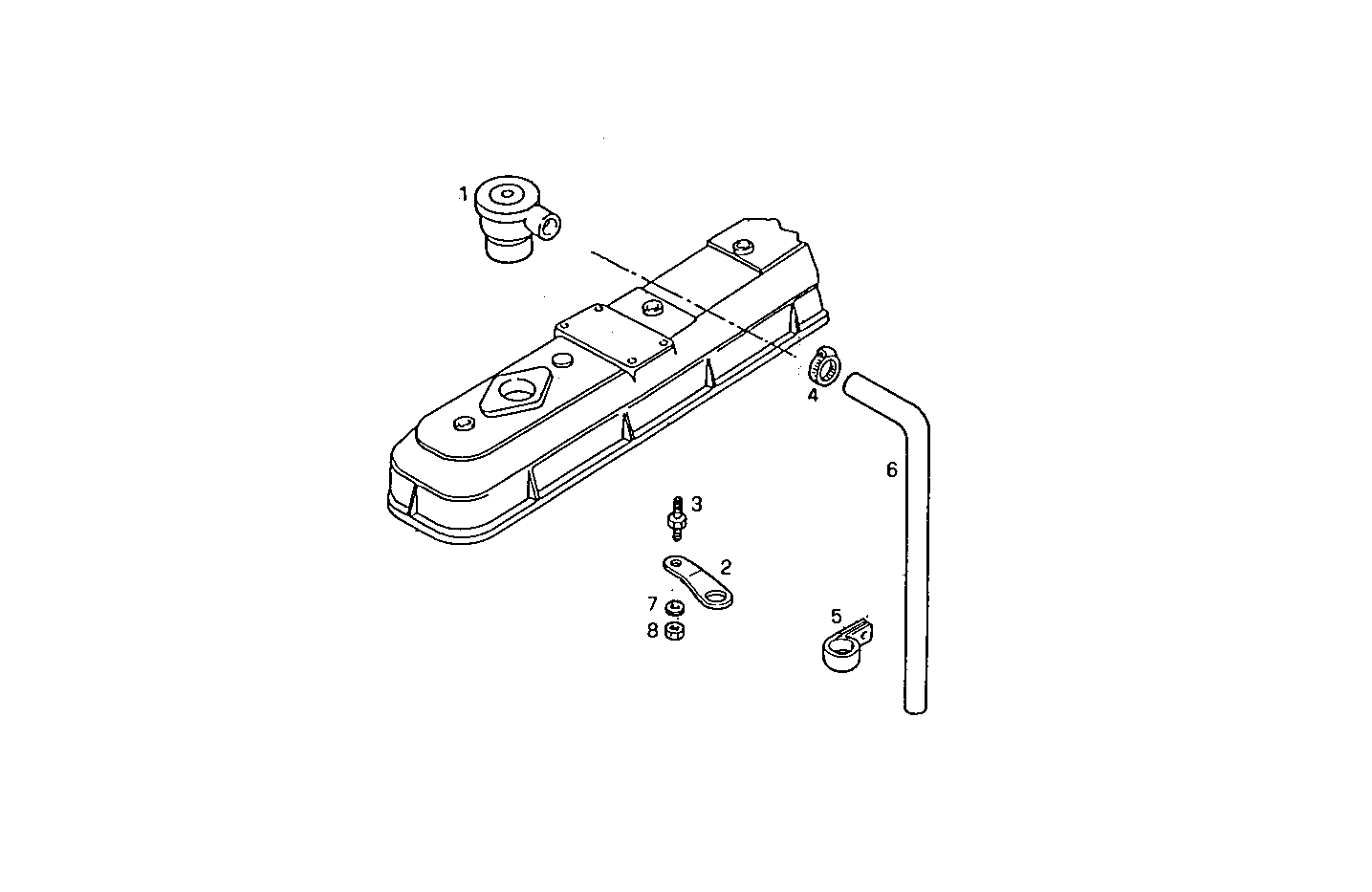

0450.109 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 4812047 BREATHER
2 4735644 RETAINER
3 98424203 HEXAGON BOLT M10X1,25X42
4 17764691 CLIP Ø25/40 MM
5 10450890 PIPE CLIP Ø24 MM
6 98446778 RUBBER SLEEVE
7 17089471 SPRING WASHER Ø16X8 MM SP=1,4 MM
8 17037931 HEXAGON NUT M8X1,25
