8040SC25.00A007

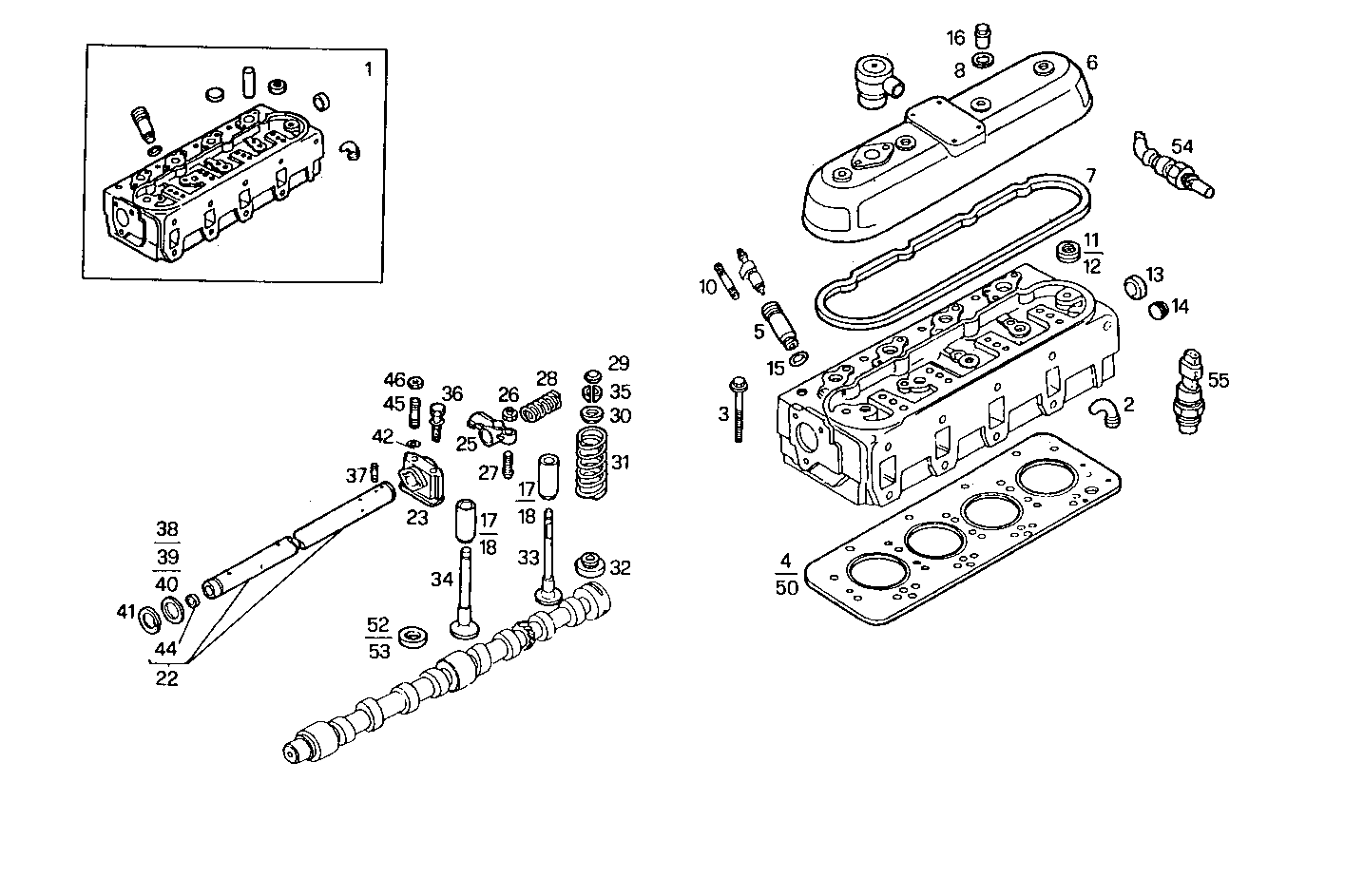

0600.118 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 99452265 CYLINDER HEAD ASSY
2 4818862 WATER CONVEYOR
3 4796457 CYL.HEAD STUD
4 1907835 CYL.HEAD GASKET SP=1,35 MM
5 4770859 NOZZLE HOLDER SEAT
6 99452321 CYL. HEAD COVER [from 266175]
7 500301351 HEAD COVER GASKET L=1178 MM [from 266175]
8 98416134 WASHER [from 555940]
10 13517630 STUD M8X1,25X50 MM
11 14282470 LOCK PLUG Ø28 MM
12 14282170 LOCK PLUG Ø20 MM
13 14282970 LOCK PLUG Ø45 MM
14 14323911 LOCK PLUG M10X1,25
15 14453981 O-RING Ø25,12 MM SP=1,78 MM
16 98417659 NUT [from 555940]
17 4802126 VALVE GUIDE
18 4802127 VALVE GUIDE +0,2
22 4842403 ROCKER SHAFT ASSY
23 4601295 ROCKER BRACKET
25 4848973 ROCKER ARM ASSY
26 4338920 ADJUSTING NUT
27 4699783 ROCKER ARM SCREW
28 4601296 ROCKER ARM SPRING
29 4838680 VALVE CAP
30 4780558 SPRING CAP TOP
31 4812347 ENGINE VALV.SPRING
32 4817424 SPRING CAP BOTTOM
33 1904656 INLET VALVE
34 1904654 EXHAUST VALVE
35 14196670 VALVE CONE Ø7,85 MM
36 16044521 HEXAGON BOLT M8X65 MM
37 4846851 SPIGOT SCREW
38 4639661 SUPPORT RING SP=1 MM
39 4570798 SUPPORT RING SP=0,7 MM
40 4570799 SUPPORT RING SP=0,5 MM
41 11066676 CIRCLIP Ø18 MM
42 17094914 WASHER 8x16
44 14328301 LOCK PLUG Ø12 MM
45 98458149 STUD [from 608189]
46 17037931 HEXAGON NUT M8X1,25
50 1907837 CYL.HEAD GASKET SP=1,58 MM
52 4803956 VALVE SEAT +0.05
53 98495493 VALVE SEAT STD.
54 4857250 TRANSMITTER
55 4837951 TEMP. TRANSMITTER CEBI
