8040SC25.00A007

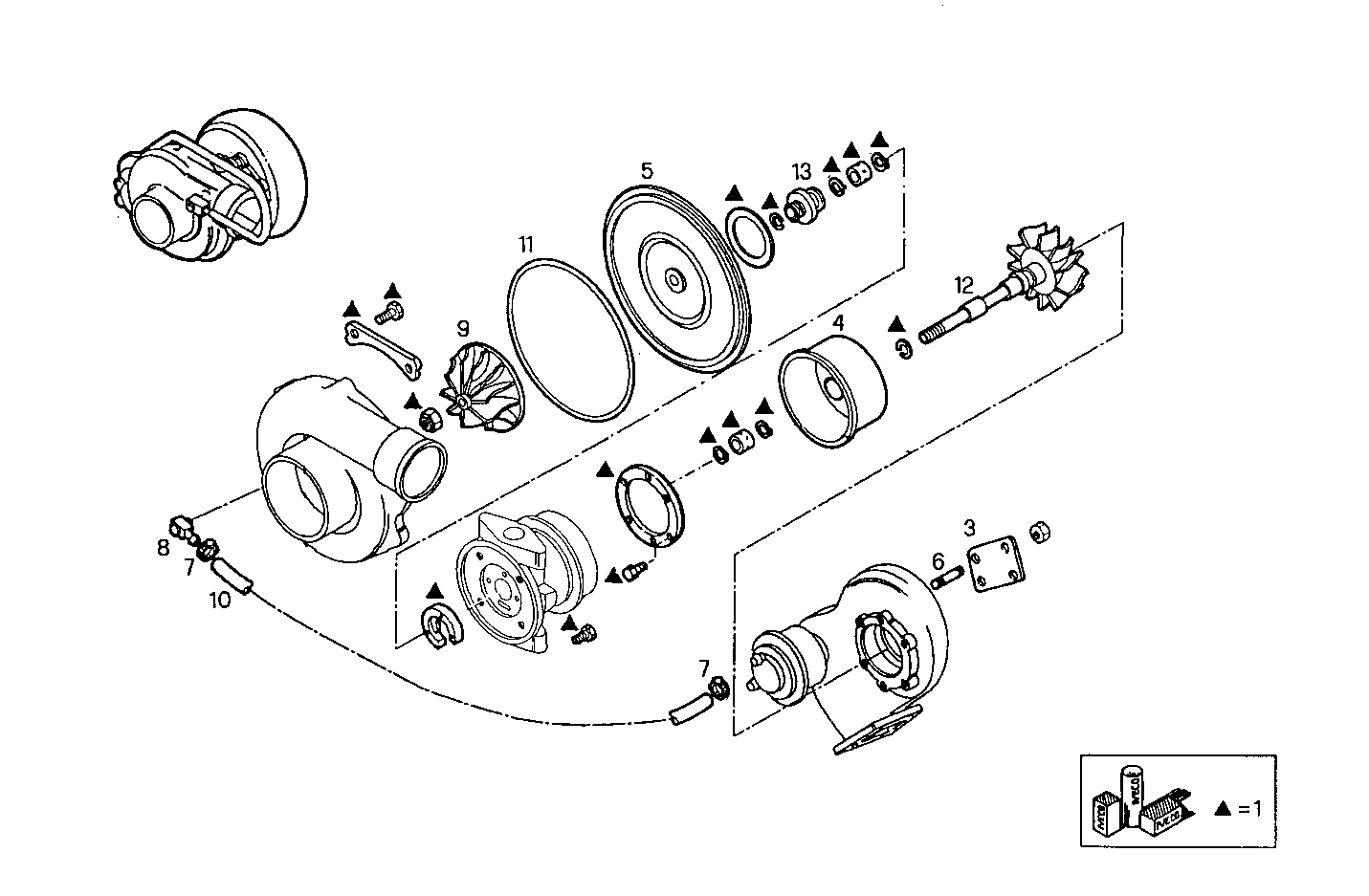

2430.021 TURBOCHARGER - components
| Item | Part number | Description |
|---|---|---|
| 1 | 8124722 | KIT-TURBOCHARGER |
| 3 | 8198409 | GASKET |
| 4 | 8198412 | COVER |
| 5 | 8198413 | PLATE |
| 6 | 8198414 | STUD |
| 7 | 93160135 | CLIP |
| 8 | 93160133 | HOSE NIPPLE |
| 9 | 8198581 | TURBINE WHEEL M10X30 MM |
| 10 | 93160132 | HOSE |
| 11 | 93158157 | WASHER |
| 12 | 93158158 | TURBINE WHEEL |
| 13 | 93158159 | THREADED UNION |
