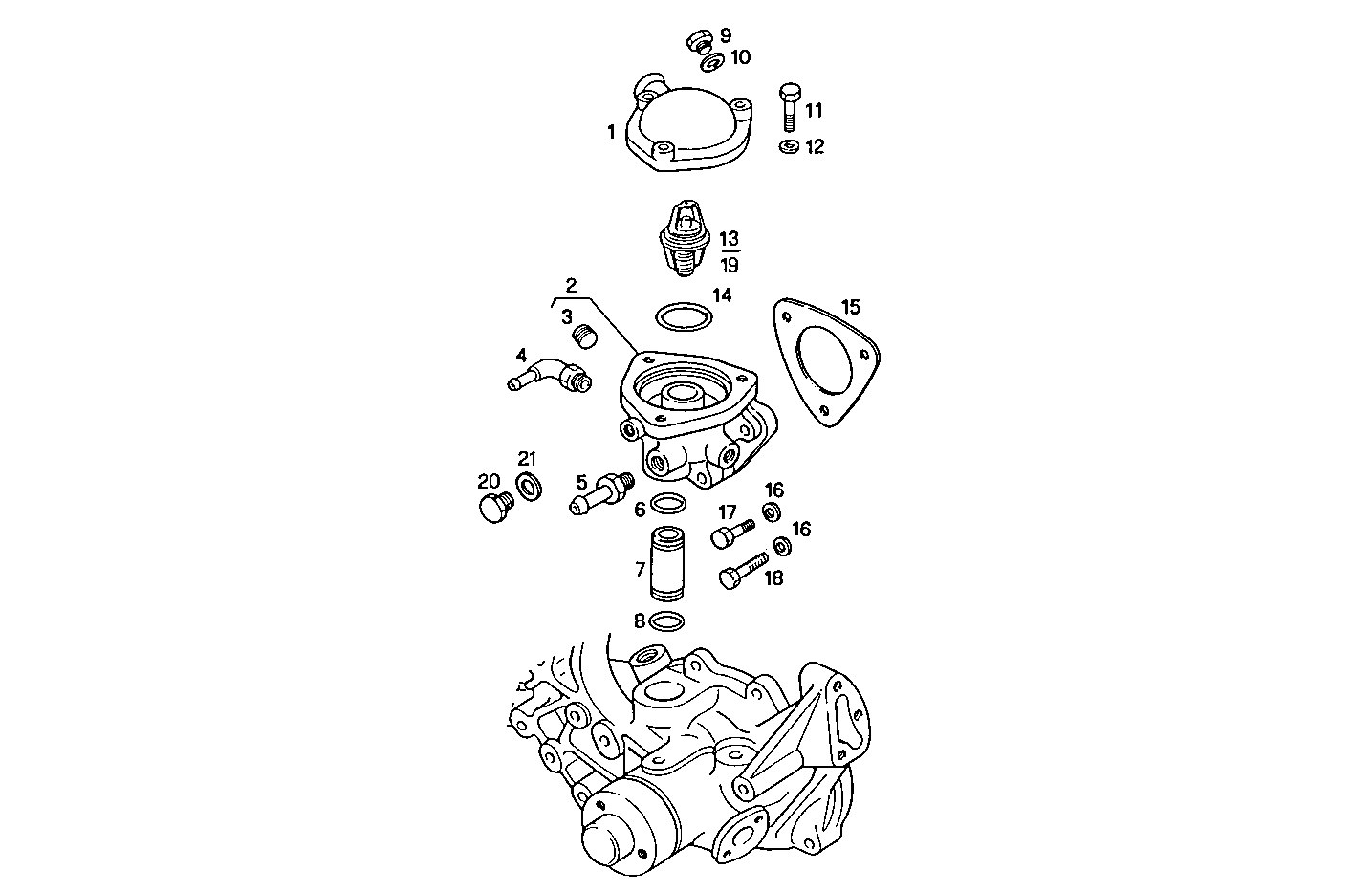

| Item |
Part number |
Description |
|
1 |
4804320 |
COVER |
|
2 |
98434833 |
THERMOSTAT BODY ASSY |
|
3 |
14325301 |
LOCK PLUG Ø22 MM |
|
4 |
98435915 |
ELBOW COUPLING |
|
5 |
98420965 |
THREADED UNION |
|
6 |
17288681 |
O-RING Ø24,9 MM SP=3,5 MM |
|
7 |
98415712 |
PIPE SOCKET [from 657424] |
|
8 |
17282381 |
O-RING Ø25,07 MM SP=2,62 MM |
|
9 |
11903111 |
LOCK PLUG M10X1,25 |
|
10 |
10298360 |
SEAL GASKET Ø10X16 MM SP=1 MM |
|
11 |
16606024 |
SCREW M8X45 MM |
|
12 |
17094914 |
WASHER 8x16 |
|
13 |
98432310 |
THERMOSTAT ASSY |
|
14 |
4863995 |
O-RING |
|
15 |
4851926 |
FLAT ENGINE GASKET |
|
16 |
17095104 |
WASHER Ø10X21X2 MM |
|
17 |
11234724 |
HEXAGON BOLT M10X1,25X45 MM |
|
18 |
98459852 |
HEXAGON BOLT M10X45 MM |
|
19 |
98467516 |
THERMOSTAT GILARDINI |
|
20 |
1190311 |
PLUG |
