8040SC25.00A007

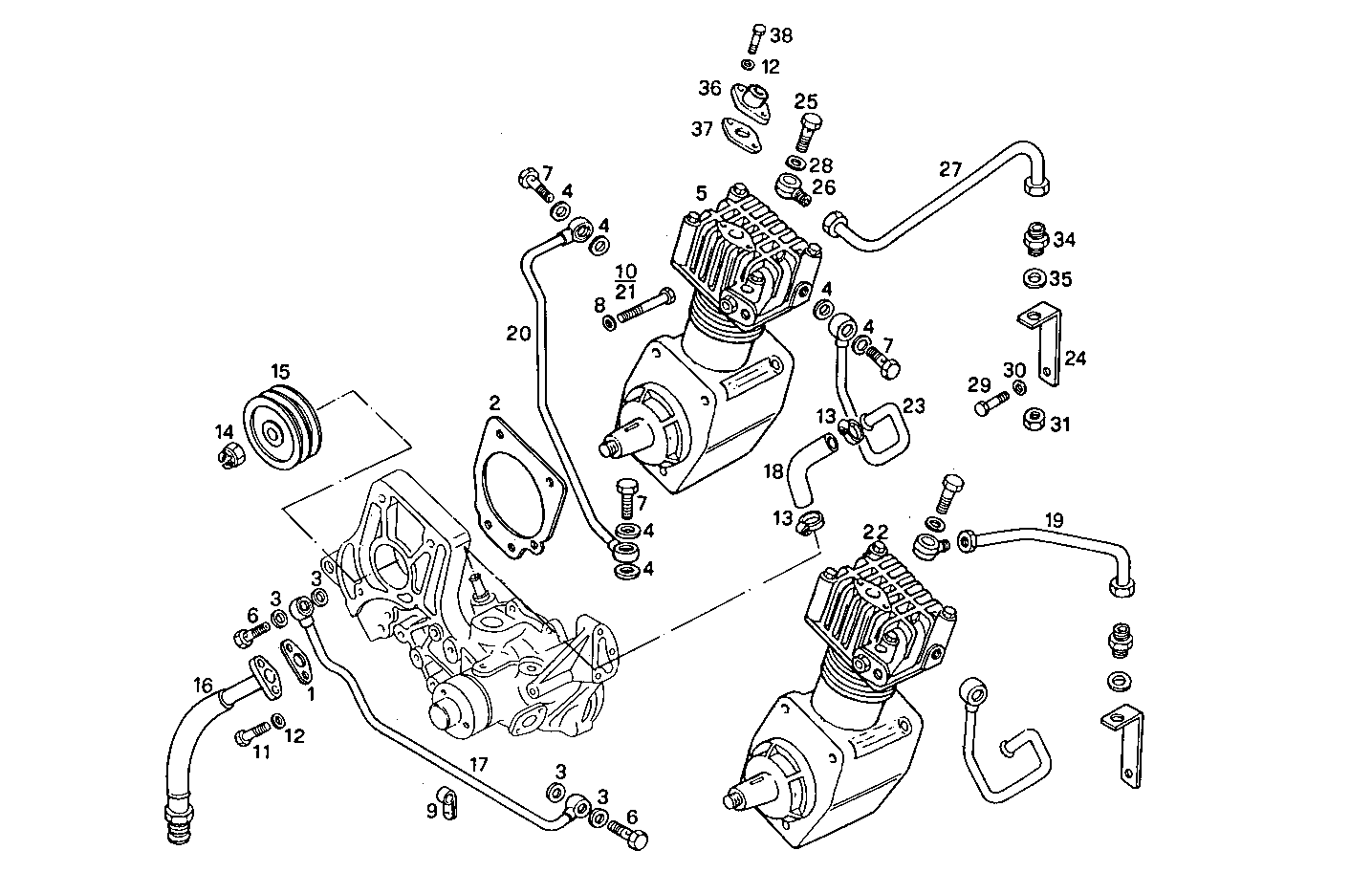

3800.016 AIR COMPRESSOR

Iveco/FPT AIR COMPRESSOR

Item Part number Description
1 4842490 FLAT ENGINE GASKET
2 99445563 FLAT ENGINE GASKET
3 4858606 GASKET Ø10X14X1 MM
4 4858609 WASHER Ø16X22 MM SP=1,5 MM
5 98464999 AIR COMPRESSOR ASSY BENDIX
6 4864080 SCREW CONNECTOR M10X1,25
7 4864084 BANJO BOLT M16X1,5
8 17095004 WASHER Ø10X18X2 MM
9 38800263 FASTENING BRACKET
10 15972224 HEXAGON BOLT M10X1,25X120 MM
11 16043521 SCREW M8X22
12 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
13 17764492 CLIP Ø16-25 MM
14 98413776 NUT
15 98419182 COMPRESSOR PULLEY
16 98424277 OIL LINE
17 98424575 OIL LINE
18 98425477 WATER HOSE
19 98456174 WATER PIPE FOR BENDIX [up to 810887]
20 98430342 WATER PIPE
21 15970924 HEXAGON BOLT M10X1,25X35 MM
22 99436216 AIR COMPRESSOR ASSY WABCO
23 98455714 WATER PIPE
24 98426506 FASTENING BRACKET [up to 810887]
25 98454664 BANJO BOLT [up to 810887]
26 98454675 SWIVEL COUPLING [up to 810887]
27 98455782 WATER PIPE FOR WABCO [up to 810887]
28 16508060 SEAL GASKET Ø12X15,5 MM
29 15004021 HEXAGON BOLT M10X1,25X25 MM
30 17095114 WASHER Ø10X21 MM
31 16508611 NUT M12X1,5
34 16502214 THREADED UNION
35 17710374 WASHER Ø12 MM
36 98405618 PIPE
37 98418772 FLAT ENGINE GASKET
38 16605924 SCREW M8X40 MM
