8040SRC20.00

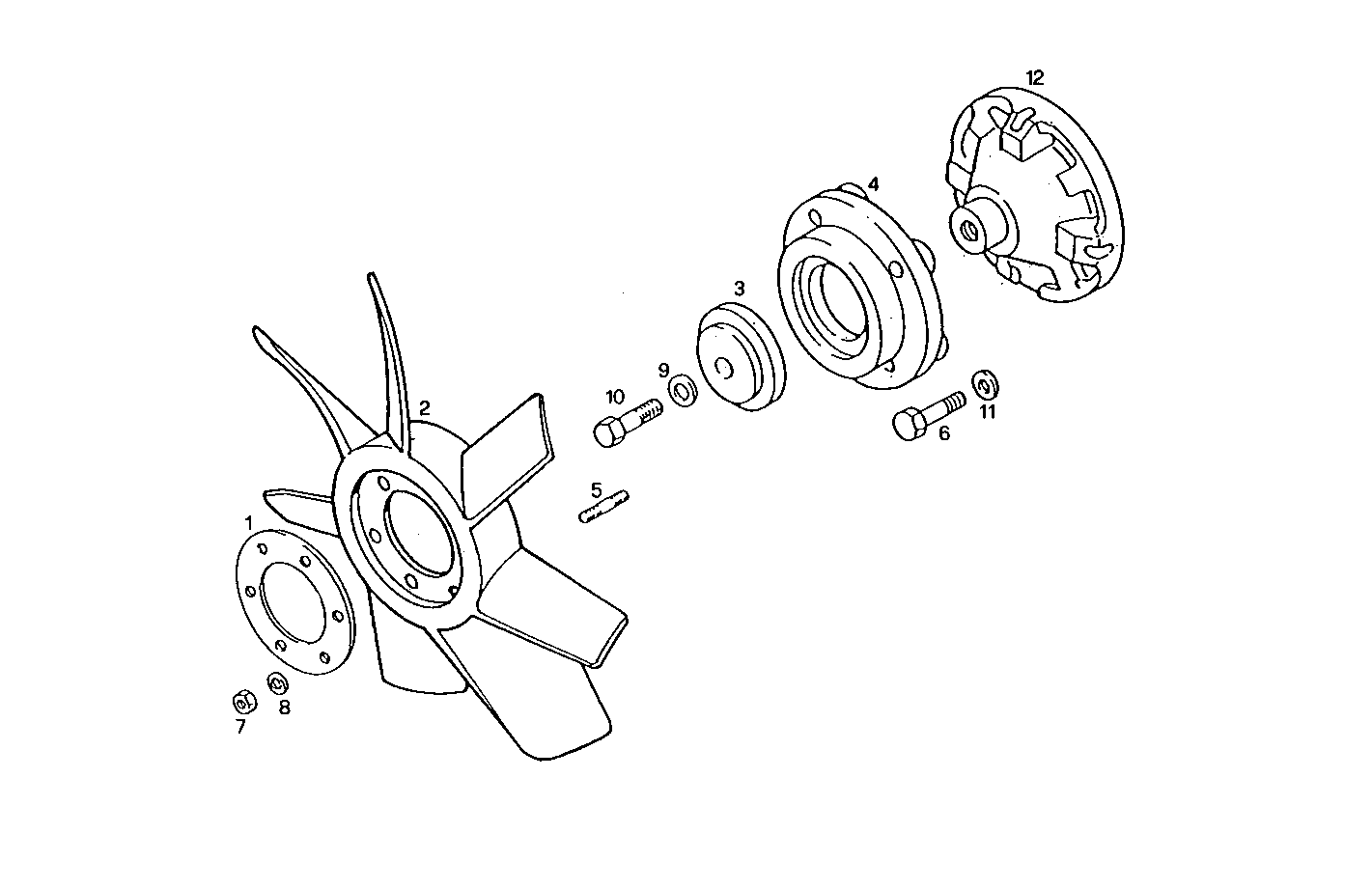

A08000044 PULLER FAN - on engine axis
| Item | Part number | Description |
|---|---|---|
| 1 | 4629908 | SUPPORT RING |
| 2 | 4800475 | BLOWER Ø450 MM |
| 3 | 4791015 | WASHER |
| 4 | 4815299 | HUB |
| 5 | 13546621 | STUD M10X1,25X20X35 MM |
| 6 | 16043721 | HEXAGON BOLT M8X28 MM |
| 7 | 17038221 | HEXAGON NUT M10 |
| 8 | 17090174 | SPRING WASHER Ø10X20 MM |
| 9 | 17092474 | SPRING WASHER Ø16X34 MM SP=4,4 MM |
| 10 | 15237821 | HEXAGON BOLT M16X1,5X80 MM |
| 11 | 17094914 | WASHER 8x16 |
| 12 | 98419024 | SPACING BAR |
