8040SRC20.00

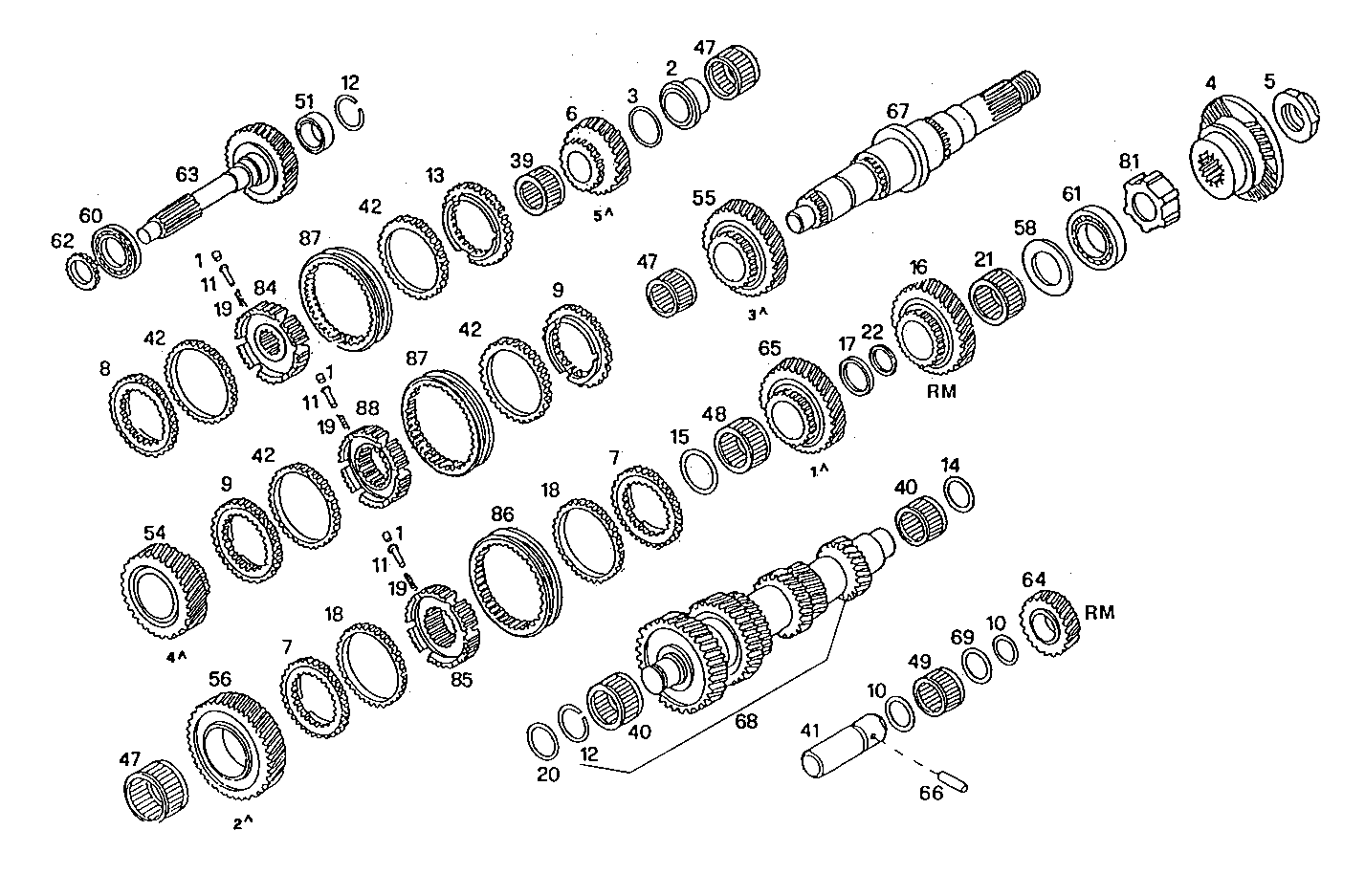

A27530002/04 TRANSMISSION - 2845.6

Iveco/FPT TRANSMISSION

Item Part number Description
1 8856938 PARALLEL ROLLER
2 8861547 PLUG-IN SLEEVE
3 8860778 SET OF SHIMS SP=1,95-2,15 MM
4 8859401 SHIFT SLEEVE ASSY GKN
5 8858586 NUT M33X1,5
6 8859269 SPLITTER GEAR 5TH SPEED
7 8861583 SYNCHRONIZER
8 8861579 SYNCHRONIZER
9 8861581 SYNCHRONIZER
10 8860343 STOP WASHER
11 8860354 CONTROL PISTON
12 8860774 SHIM KIT
13 8861580 SYNCHRONIZER
14 8861597 SPACING BAR
15 8860775 REVERSE GEAR
16 8859759 REVERSE GEAR
17 8859329 GEAR BOX HUB
18 8867447 SYNCHRONIZER 4TH SPEED
19 8860357 SPRING
20 8860777 SET OF SHIMS KIT
21 1905243 ROLLER CAGE Ø55X63 MM SP=32 MM
22 8860776 SET OF SHIMS
39 1905242 ROLLER CAGE Ø53X46 MM SP=36 MM
40 1905252 GEARBOX BEARINGS Ø40X75 MM SP=26 MM
41 8861569 RETURN SHAFT REVERSE
42 8867446 SYNCHRONIZER
47 1905241 ROLLER CAGE Ø74X66 MM SP=36 MM
48 1905253 ROLLER CAGE Ø60X68 MM SP=34 MM
49 1905254 ROLLER CAGE Ø60X68 MM SP=34 MM
51 1905251 ROLLER CAGE Ø42X26 MM SP=26 MM
54 8859268 SPLITTER GEAR 4TH SPEED
55 8859267 SPLITTER GEAR 3RD SPEED
56 8859266 SPLITTER GEAR 2ND SPEED
58 8859871 STOP WASHER
60 1905490 GEARBOX BEARINGS Ø60X110 MM SP=22 MM
61 1905396 DRIVE BEARING Ø45X100 MM SP=25 MM
62 8863138 FASTENING RING
63 8859202 INPUT SHAFT
64 8859775 REVERSE GEAR
65 8859757 SPLITTER GEAR 1ST SPEED
66 17259070 DOWEL PIN
67 8859256 MAIN SHAFT
68 99808052 COUNTERSHAFT ASSY
69 17282481 O-RING Ø26,64 MM SP=2,62 MM
81 8859212 WORM
84 8860324 GEAR BOX HUB
85 8860334 GEAR BOX HUB
86 8861582 SLIDING SLEEVE
87 8861673 SLIDING SLEEVE
88 8861677 GEAR BOX HUB
