8040SRC21.10

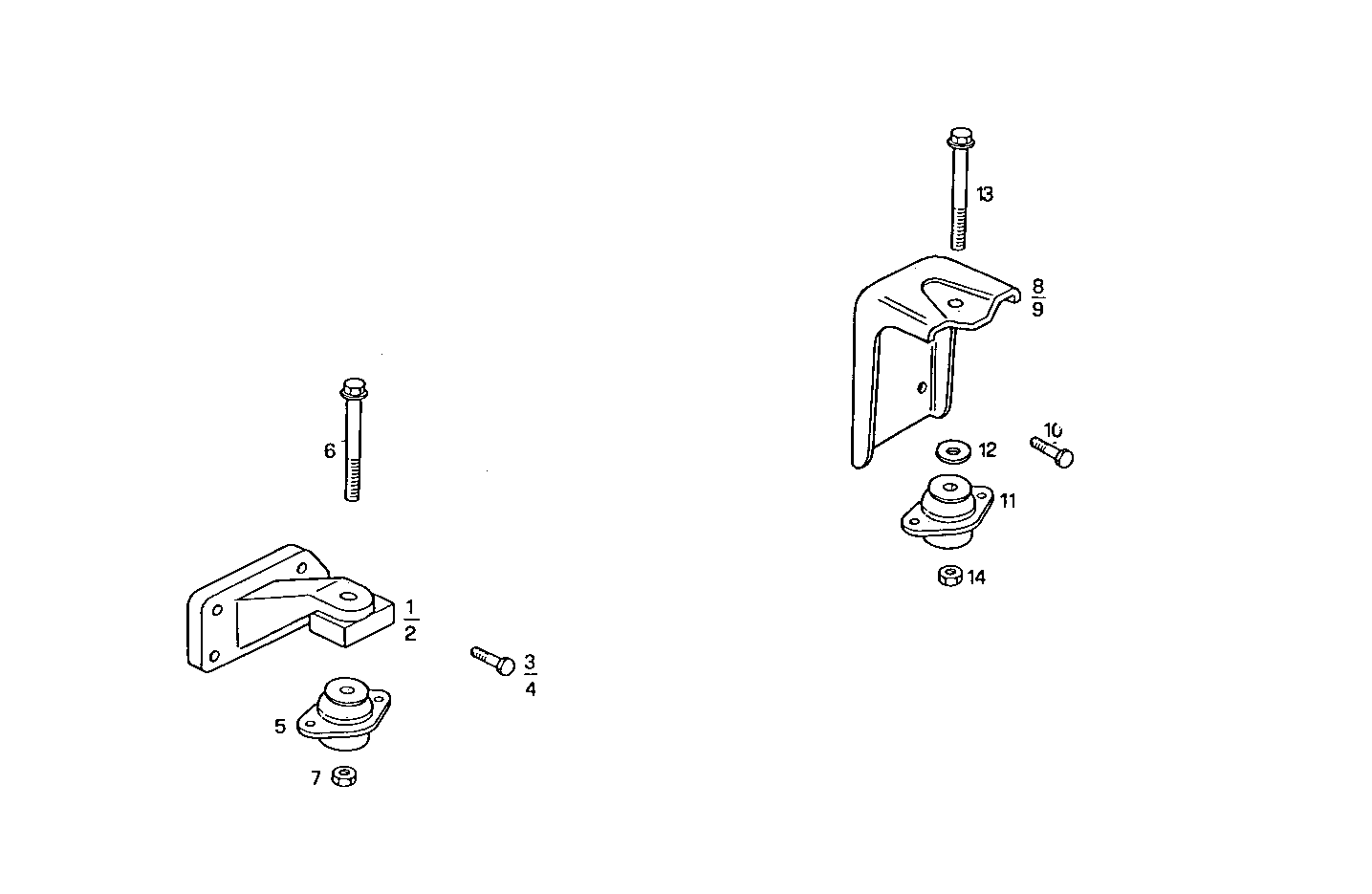

A04110013 ENGINE MOUNTING AND TRANSMISSION - 2855.6

Iveco/FPT ENGINE MOUNTING AND TRANSMISSION

Item Part number Description
1 98420126 FRONT ENG. MOUNT LEFT
2 98420127 FRONT ENG. MOUNT RIGHT
3 16678034 HEXAGON BOLT M12X40 MM
4 16677834 HEXAGON BOLT M12X30 MM
5 98420115 FRONT ENG. MOUNT PIRELLI [from 10-94]
6 16683434 HEXAGON BOLT M16X80 MM
7 17309331 HEXAGON NUT M16
8 4850407 SUPPORT LEFT
9 4849473 SUPPORT RIGHT
10 16675734 HEXAGON BOLT M10X25 MM
11 4826404 ENGINE SILENTBLOCK PIRELLI
12 8127225 WASHER
13 16679134 HEXAGON BOLT M12X100 MM
14 16984431 HEXAGON NUT M12
