8040SRC21.10

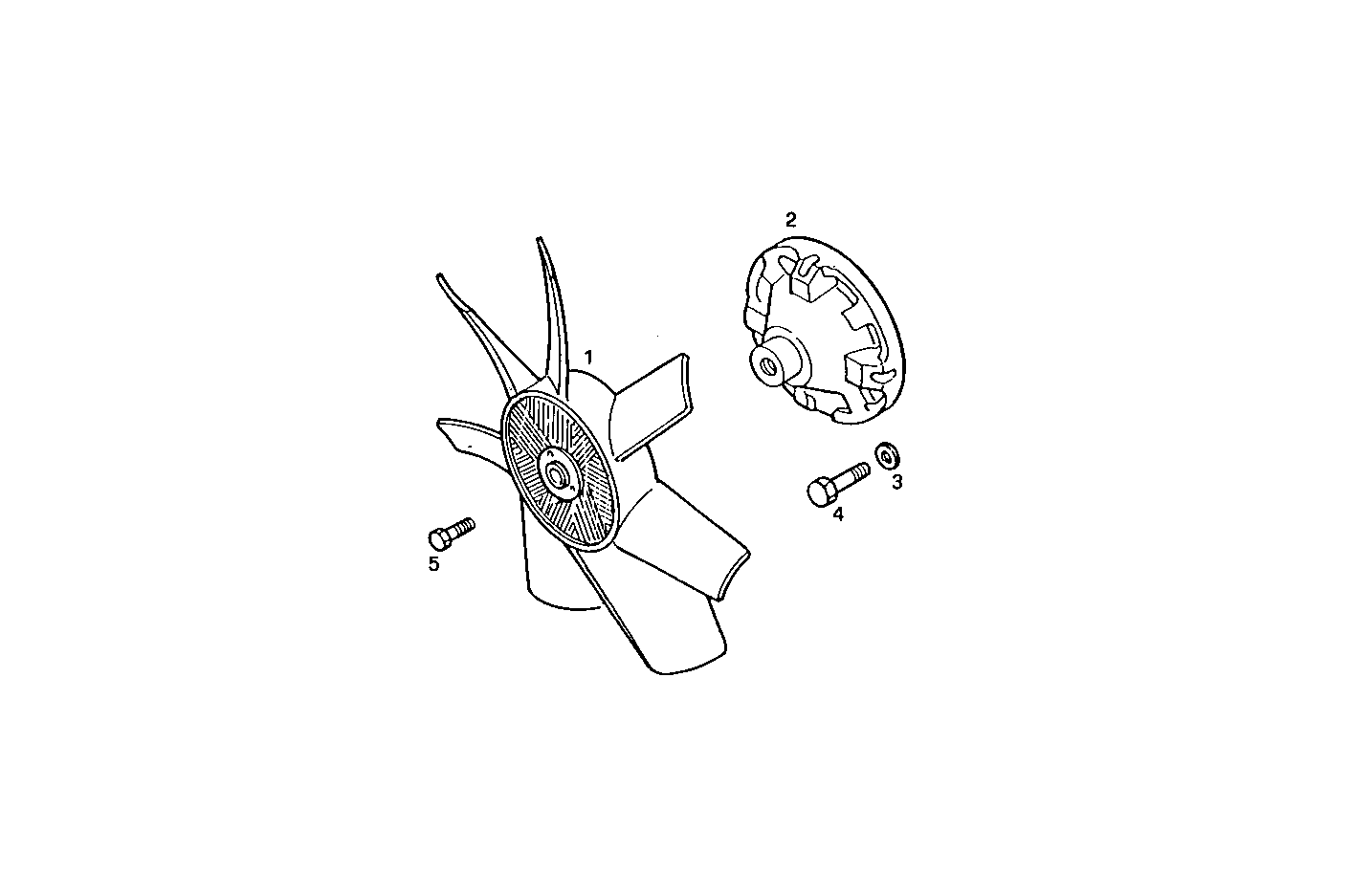

A08110001 VISCOSTATIC PULLER FAN - on engine axis
| Item | Part number | Description |
|---|---|---|
| 1 | 98468660 | BLOWER Ø530 MM 7 BLADES |
| 2 | 98419726 | HUB |
| 3 | 17094914 | WASHER 8x16 |
| 4 | 16043721 | HEXAGON BOLT M8X28 MM |
| 5 | 4779122 | HEXAGON BOLT |
