8040SRC21.10A004

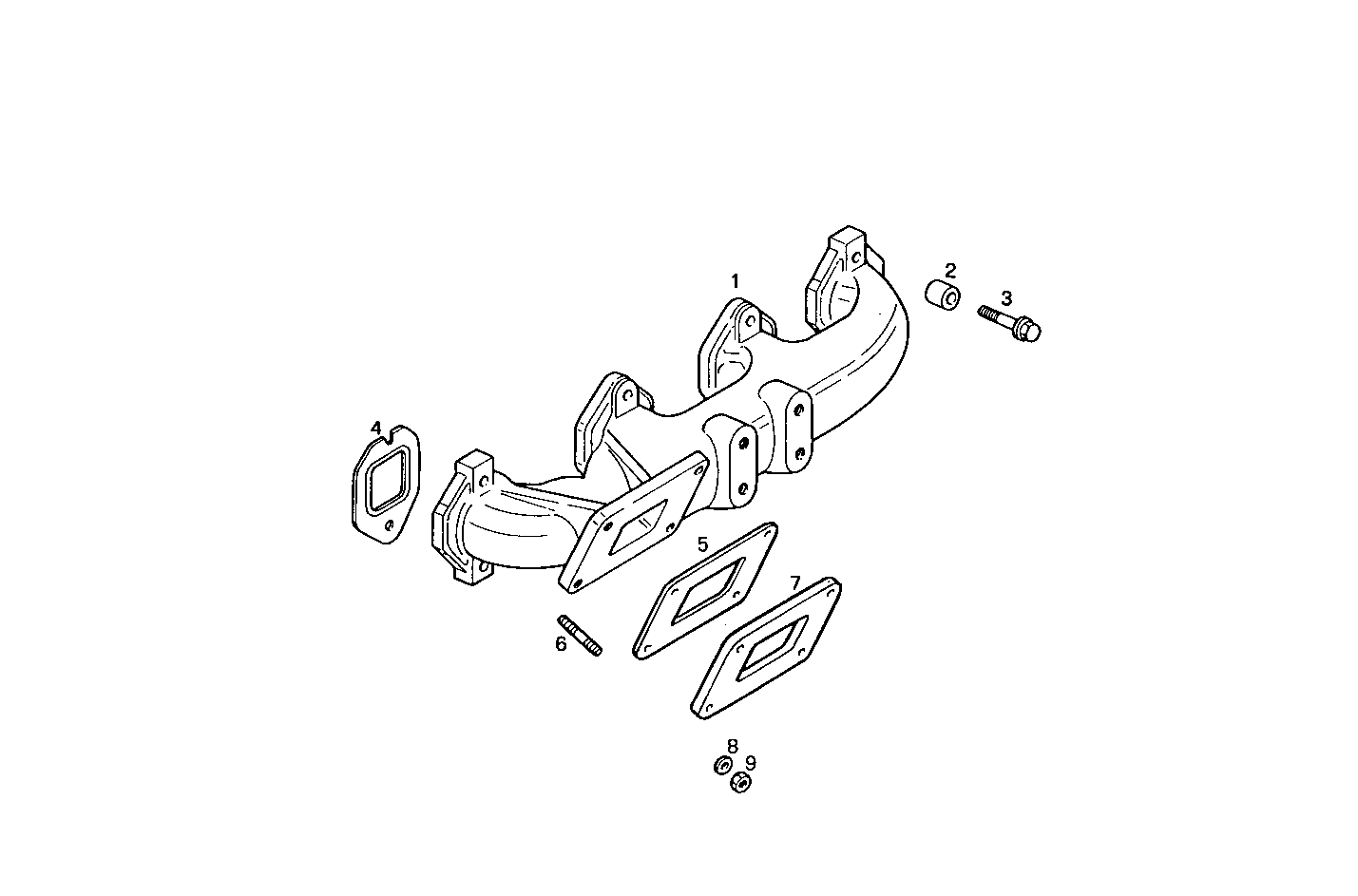

0760.096 EXHAUST MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 4860077 | EXHAUST MANIFOLD |
| 2 | 98486517 | SPACING BAR L=30 MM |
| 3 | 98483027 | HEXAGON BOLT |
| 4 | 98489690 | EXH. MANIFOLD GKT |
| 5 | 98428399 | GASKET |
| 6 | 16729424 | STUD M8X1,25X25 |
| 7 | 8018499 | FLANGE |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
