8040SRC21.10A004

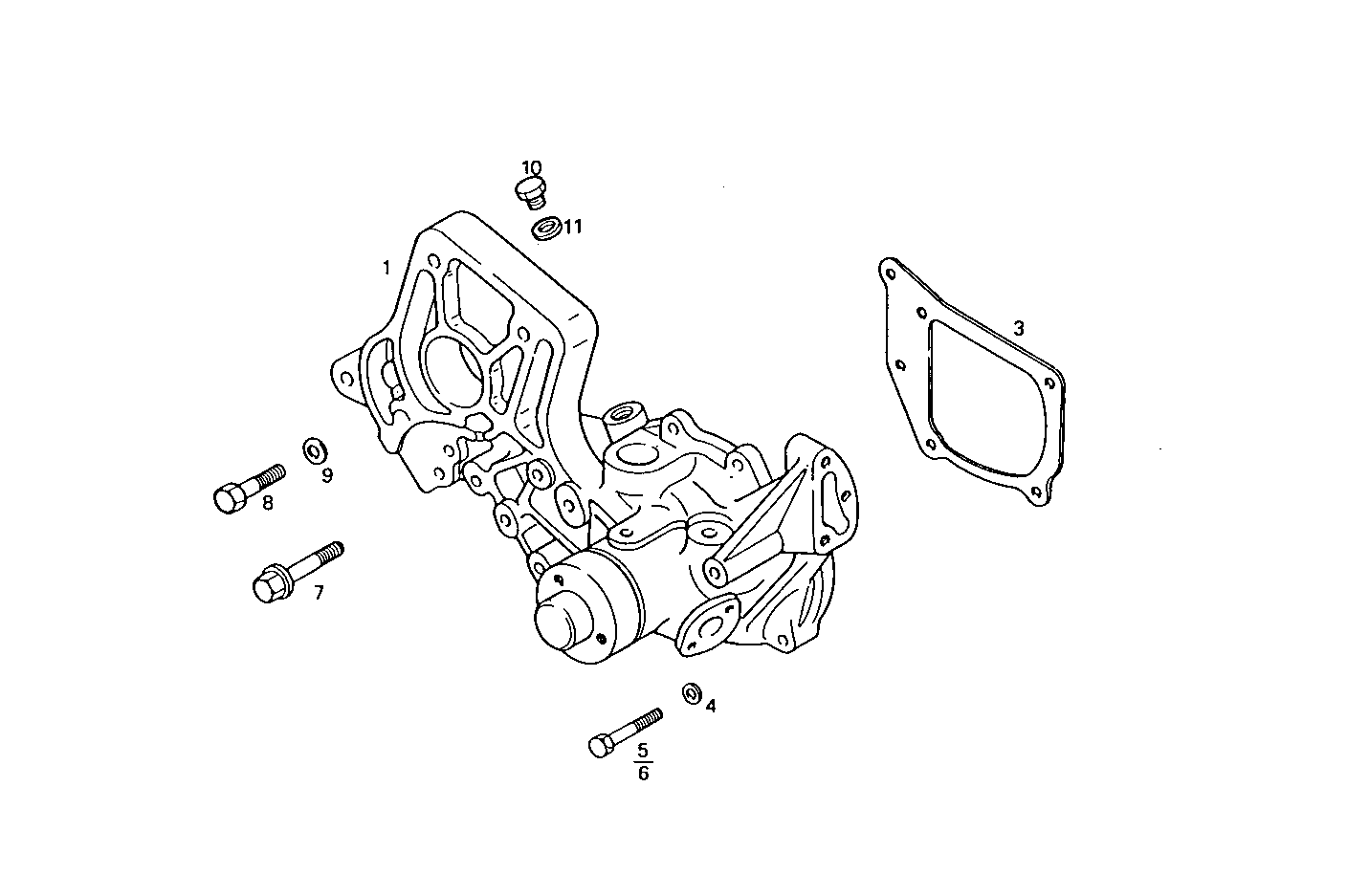

3200.066 WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 98415831 | WATER PUMP ASSY |
| 2 | 4616630 | THREADED UNION |
| 3 | 4842822 | FLAT ENGINE GASKET |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 15972321 | HEXAGON BOLT M10X125 MM |
| 6 | 15971921 | HEXAGON BOLT M10X105 MM |
| 7 | 16288624 | HEXAGON BOLT M10X1,25X35 MM |
| 8 | 16045721 | HEXAGON BOLT M8X125 MM |
| 9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 10 | 16992411 | THREADED PLUG M16X1,5 |
| 11 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
