8040SRC21.10A004

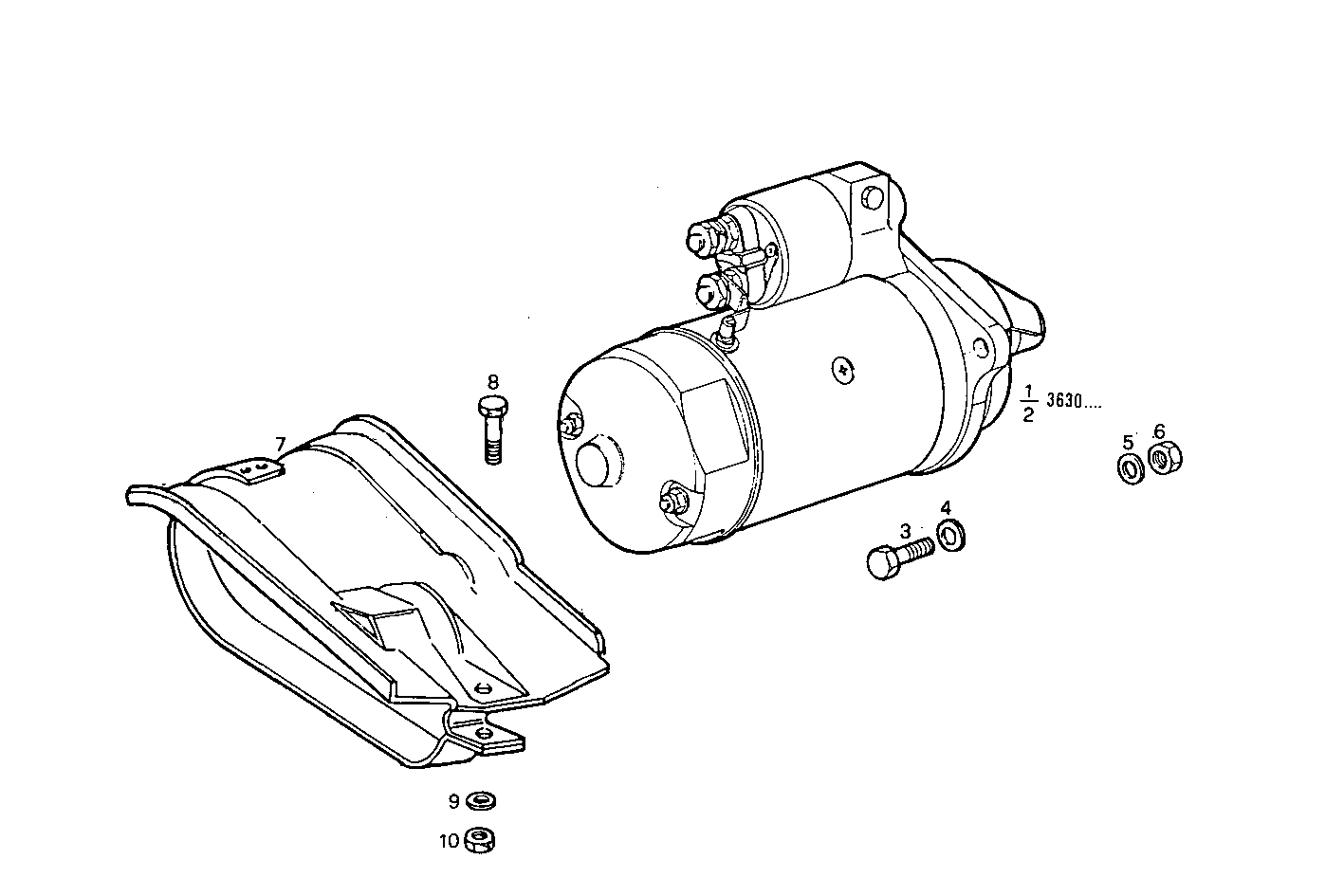

3600.061 STARTER MOTOR
| Item | Part number | Description |
|---|---|---|
| 1 | 4744841 | STARTER MOTOR ASSY BOSCH |
| 2 | 4807377 | STARTER MOTOR ASSY MARELLI |
| 3 | 16608724 | HEXAGON BOLT M10X90 MM |
| 4 | 17095004 | WASHER Ø10X18X2 MM |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 17038121 | HEXAGON NUT M10 |
| 7 | 4721863 | PROTECTION |
| 8 | 16604124 | HEXAGON BOLT M6X40 MM |
| 9 | 17088474 | WASHER Ø6X12 MM |
| 10 | 17037821 | HEXAGON NUT M6X1 |
