8040SRC21.10A004

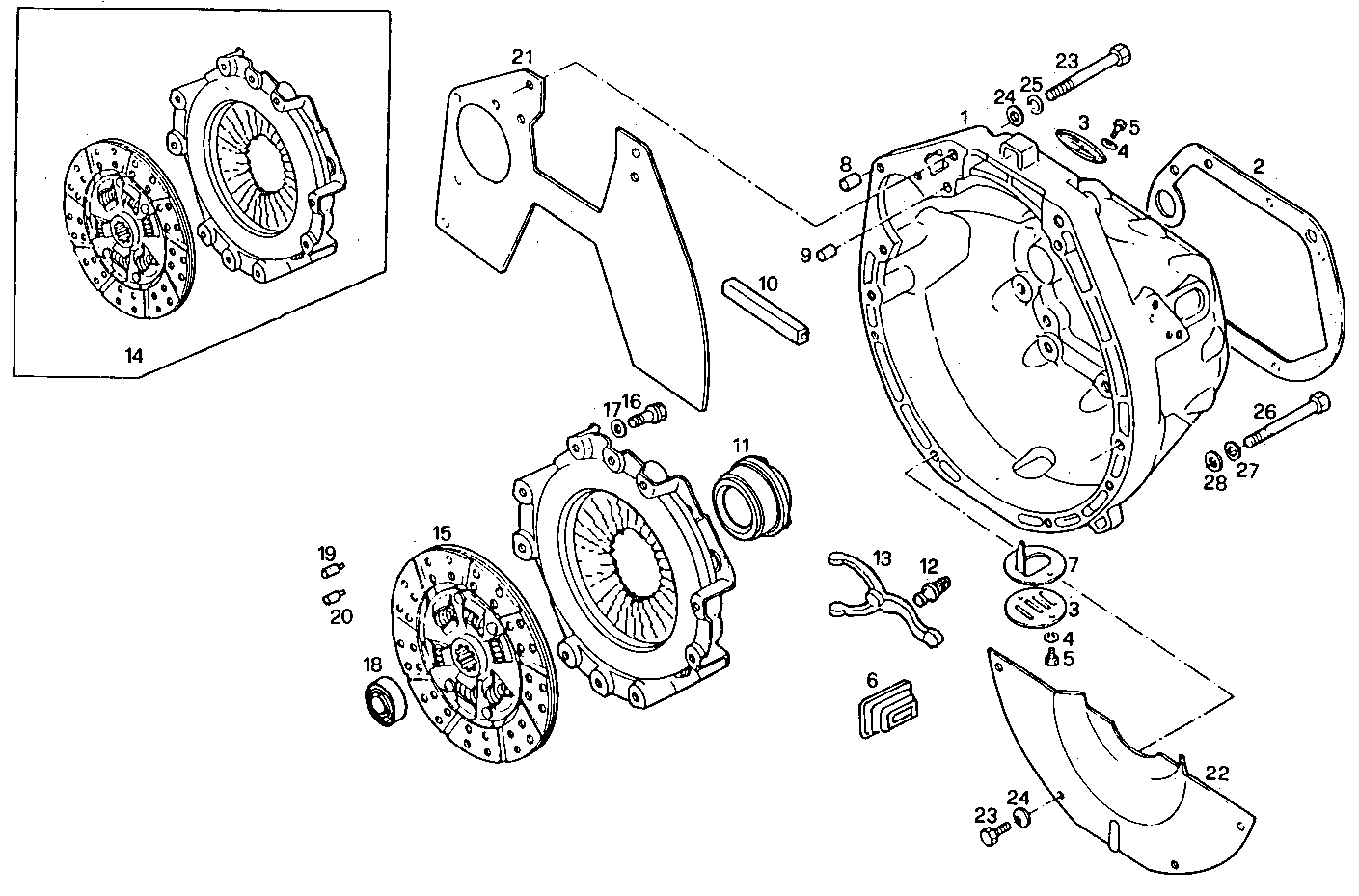

5200.008 CLUTCH

Iveco/FPT CLUTCH

Item Part number Description
1 8022024 COVER
2 4605259 FLAT GEARBOX GKT
3 4540660 COVER
4 17090174 SPRING WASHER Ø10X20 MM
5 11234721 HEXAGON BOLT M10X1,25X45 MM
6 4794012 PROTECTIVE HOOD
7 4606988 CONNECTING PLATE
8 8022015 DOWEL PIN
9 4647524 DOWEL PIN
10 4655043 RUBBER SECTION
11 8585082 RELEASE SLEEVE
12 4577306 BALL-END PIN
13 4773745 CLUTCH LEVER
14 1903920 CLUTCH ASSY
15 4853815 CLUTCH DISC VALEO
16 16605524 HEXAGON BOLT M8X20 MM
17 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
18 500358297 BALL BEARING Ø25X52 MM SP=15 MM
19 570040 DOWEL PIN Ø7,3 MM
20 570041 DOWEL PIN Ø7,8 MM
21 8584073 PROTECTION
22 8584074 PROTECTION
23 16043521 SCREW M8X22
25 17495134 WASHER
26 11116924 HEXAGON BOLT M14X2
27 16613824 SCREW
28 17095504 WASHER Ø14X28 MM
