8040SRC21.11A005

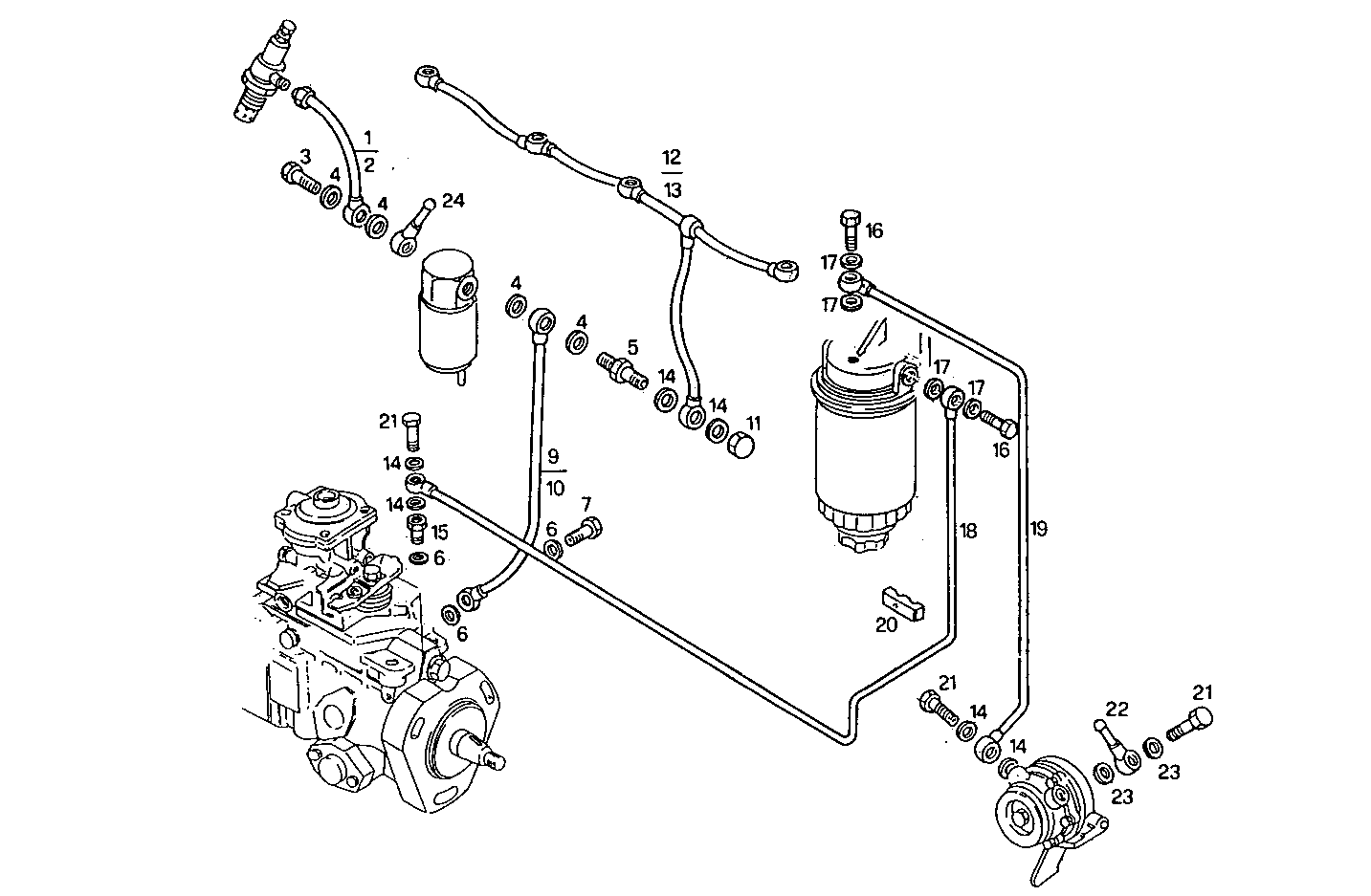

2030.126 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 4848500 FUEL LINE [up to 609902]
2 98460408 FUEL LINE [from 609903]
3 4864079 SCREW CONNECTOR M10X1
4 10298360 SEAL GASKET Ø10X16 MM SP=1 MM
5 4838021 BYPASS VALVE
6 10296160 SEAL GASKET Ø12X18 MM SP=1 MM
7 10181717 SCREW CONNECTOR M12X1,5X23
9 4848502 FUEL LINE [up to 609902]
10 98460653 FUEL LINE [from 609903]
11 10182317 PLUG
12 4848486 FUEL LINE [up to 609902]
13 98460652 FUEL LINE [from 609903]
14 4858607 WASHER Ø12X17 MM SP=1,5 MM
15 4802434 THREADED UNION M12X1,5
16 4864083 SCREW CONNECTOR M14X1,5X30 MM
17 4858608 SEAL GASKET dia.14x19,5x1,5
18 98413809 FUEL LINE M8X1,25X30 MM
19 98413808 FUEL LINE L=30 MM
20 4864292 SPRING CLAMP
21 4864082 BANJO BOLT M12X1,5X25 MM
22 98416591 SWIVEL COUPLING
23 98474306 WASHER Ø12X20 MM SP=1,9 MM
24 8020166 PIPE SOCKET
