8040SRM16.10

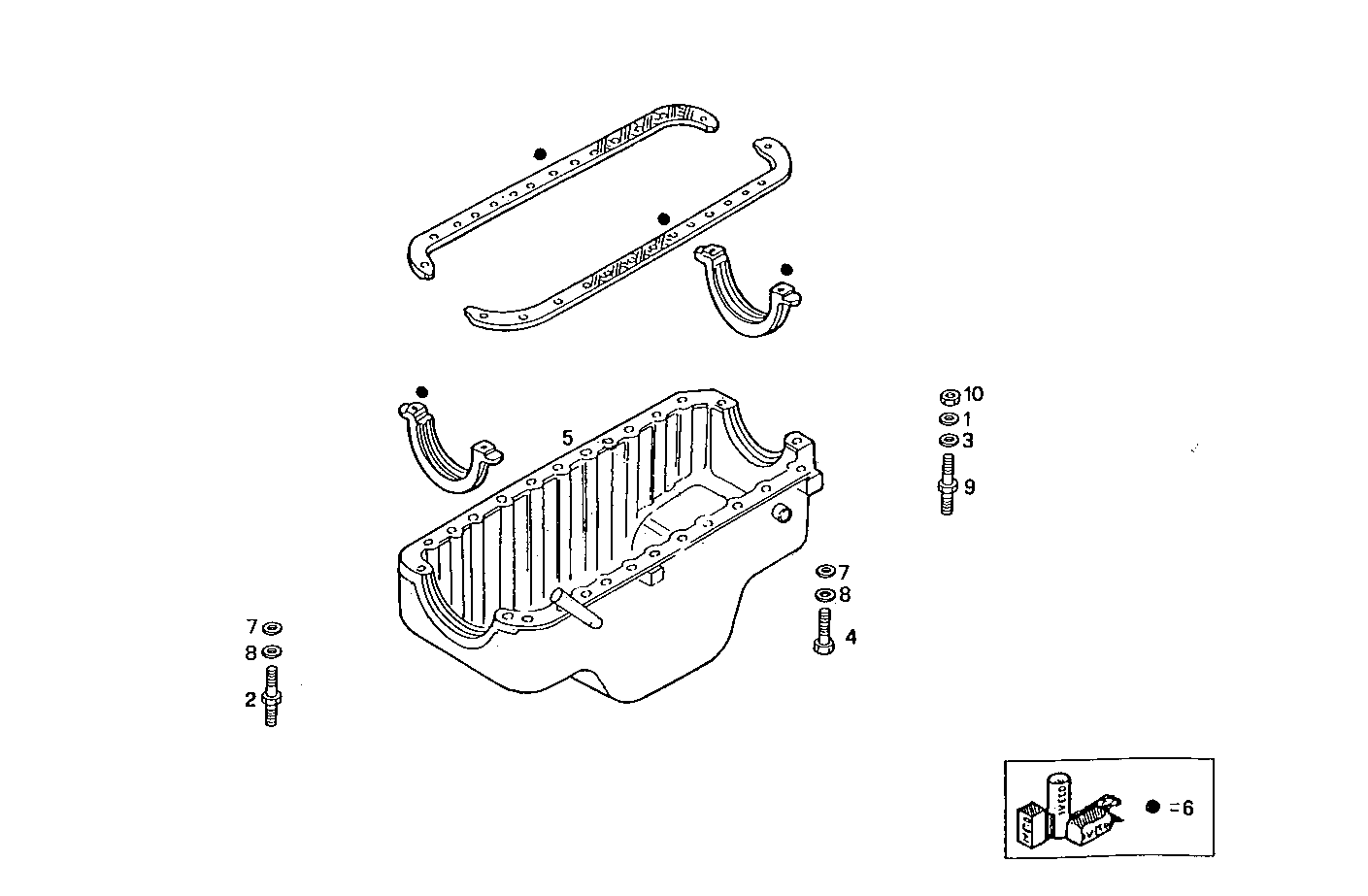

0420.122 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 10516679 | WASHER Ø8X14,8X2 MM |
| 2 | 98424203 | HEXAGON BOLT M10X1,25X42 |
| 3 | 17094914 | WASHER 8x16 |
| 4 | 10923024 | HEXAGON BOLT M10X1,25X20 MM |
| 5 | 8023130 | OIL SUMP ASSY |
| 6 | 1907812 | KIT-OILSUMP GASKET |
| 7 | 17095014 | WASHER Ø10X18 MM |
| 8 | 10516879 | WASHER Ø10X18X2 MM |
| 9 | 98474195 | STUD M10X1,25 - M8X37,5 MM |
| 10 | 17037931 | HEXAGON NUT M8X1,25 |
