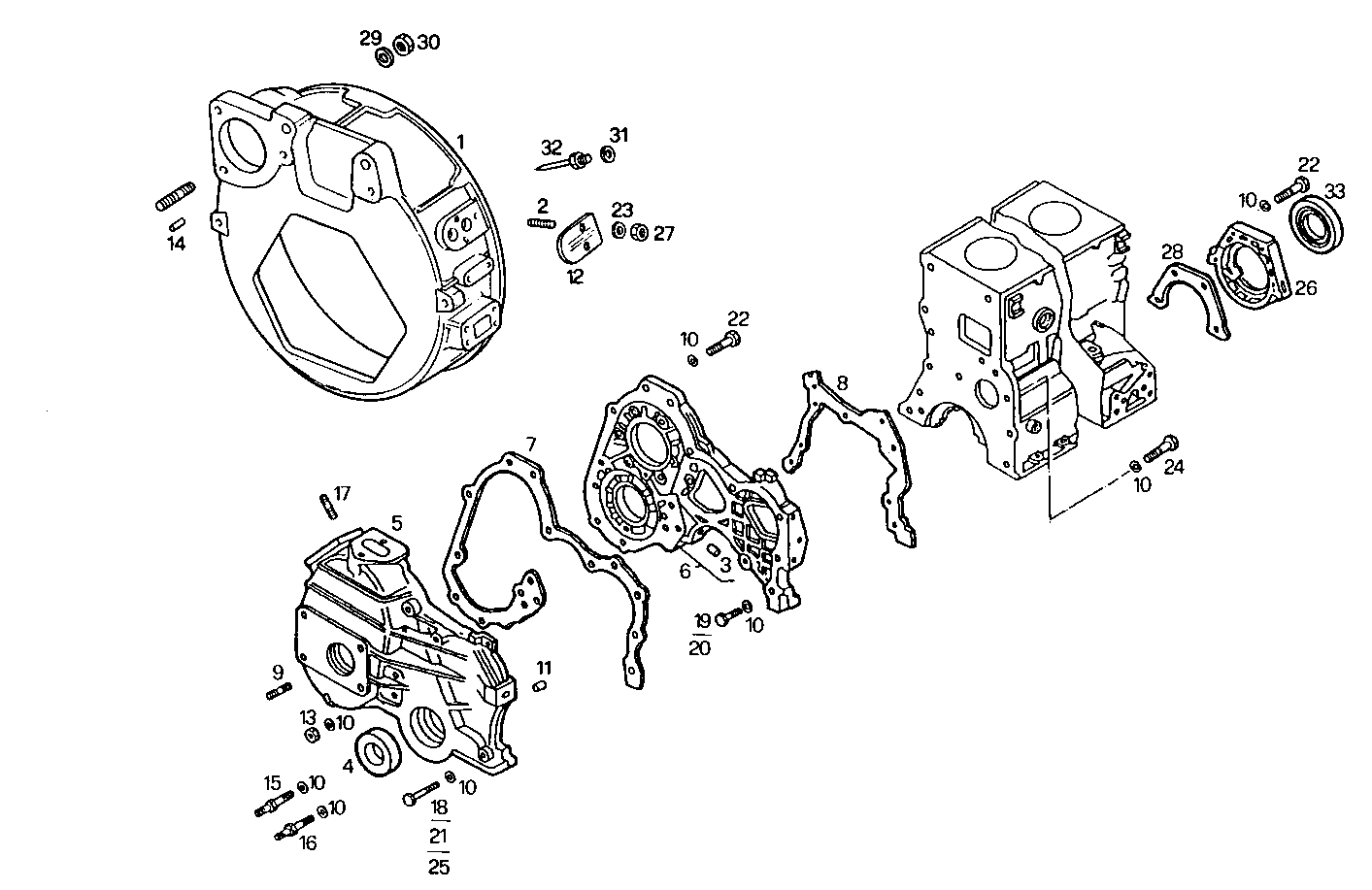

| Item |
Part number |
Description |
|
1 |
8111654 |
FLYWHEEL HOUSING ASSY |
|
2 |
16726124 |
STUD |
|
3 |
4605220 |
OIL NOZZLE |
|
4 |
99469265 |
SHAFT SEAL CORCOS |
|
5 |
4800486 |
FRONT C.CASE COVER ASSY [from ...] |
|
6 |
500321670 |
TIMINGGEAR HOUSIN ASSY REAR |
|
7 |
98424045 |
FLAT ENGINE GASKET |
|
8 |
98424046 |
FLAT ENGINE GASKET |
|
9 |
16745024 |
STUD M6X12X20 MM |
|
10 |
17094914 |
WASHER 8x16 |
|
11 |
17275410 |
DOWEL PIN Ø8 MM |
|
12 |
4540660 |
COVER |
|
13 |
17037931 |
HEXAGON NUT M8X1,25 |
|
14 |
17275510 |
DOWEL PIN Ø10 MM |
|
15 |
4848314 |
HEXAGON BOLT L=110 MM |
|
16 |
4848315 |
HEXAGON BOLT L=79 MM |
|
17 |
16729324 |
STUD M8X12X20 MM |
|
18 |
16044924 |
SCREW M8X1,25X85 MM |
|
19 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
20 |
16043524 |
SCREW M8X22 MM |
|
21 |
16606124 |
HEXAGON BOLT M8X50 MM |
|
22 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
23 |
17494634 |
SPRING WASHER Ø5,1X9,2 MM |
|
24 |
16606524 |
HEXAGON BOLT M8X70 MM |
|
25 |
16606224 |
HEXAGON BOLT M8X55 MM |
|
26 |
98489586 |
REAR C.CASE COVER |
|
27 |
17037721 |
NUT M5X0,8 |
|
28 |
4849994 |
FLAT ENGINE GASKET |
|
29 |
17095504 |
WASHER Ø14X28 MM |
|
30 |
17038721 |
NUT M14X2 [from ...] |
|
31 |
17088474 |
WASHER Ø6X12 MM |
|
32 |
61315560 |
INDICATOR |
|
33 |
99457401 |
SHAFT SEAL CORCOS |
