8040SRM16.10

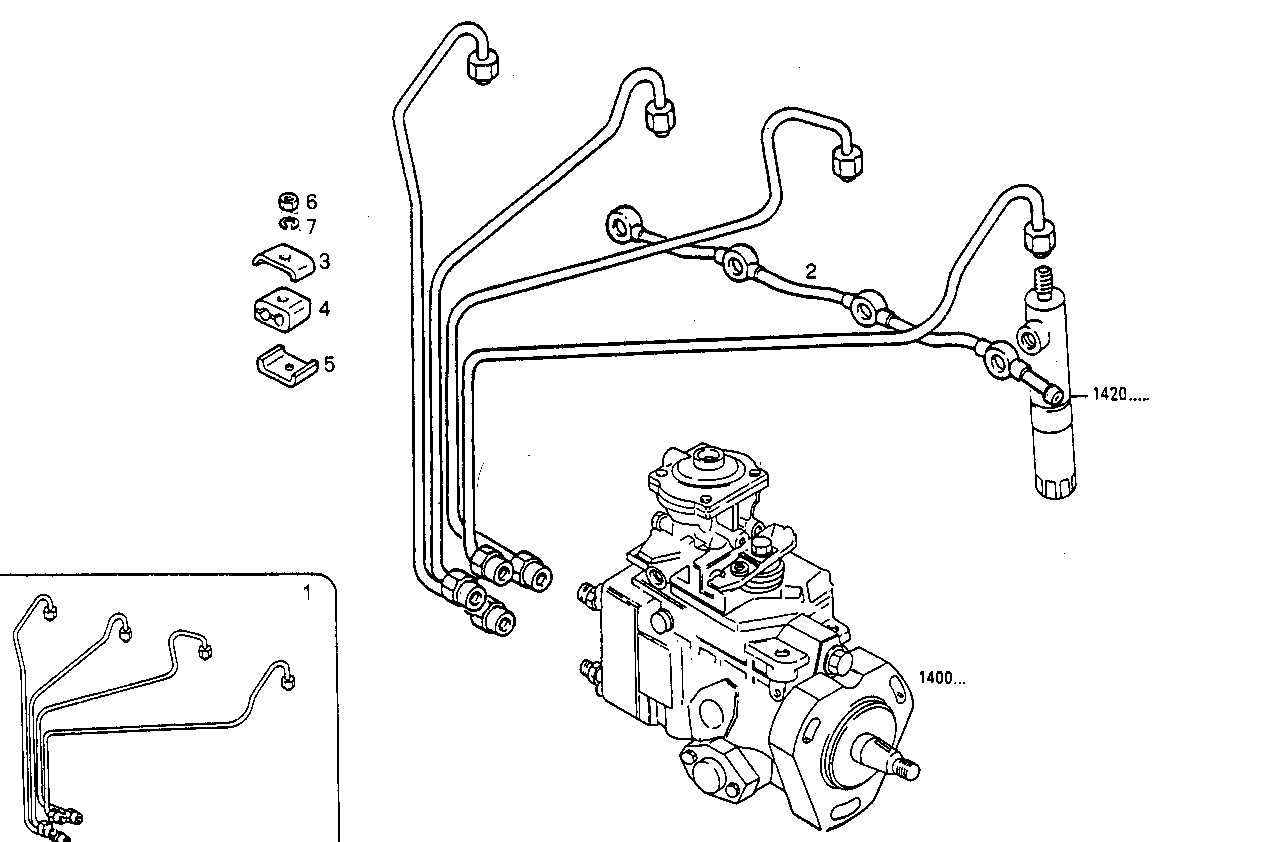

2020.019 INJECTION PIPES

Iveco/FPT INJECTION PIPES

Item Part number Description
1 8108420 INJECTION LINE SET
2 4788076 FUEL LINE 1C
3 8108739 CLAMP
4 8108740 DOWEL
5 8108738 PLATE
6 15896211 HEXAGON NUT M6
7 17088474 WASHER Ø6X12 MM
