8040SRM16.10

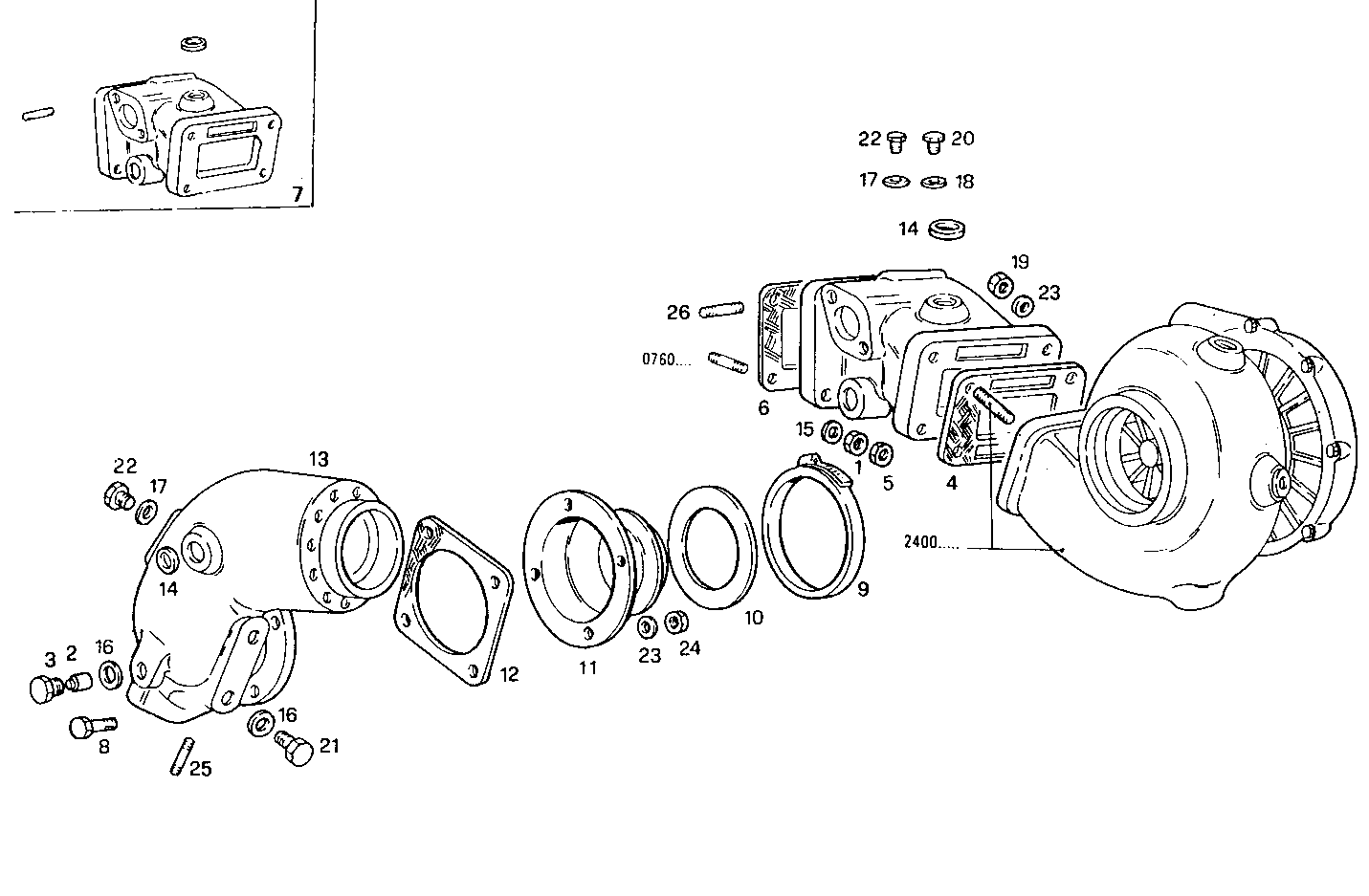

2420.007 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 4927248 NUT M10X1,25
2 8105277 SACRIFICAL ANODE Ø14 MM
3 4917793 PLUG M18
4 8008740 GASKET
5 8100961 NUT M10X1,25
6 8009603 GASKET
7 8111017 EXHAUST COOL. ELBOW ASSY
8 16607824 HEXAGON BOLT M10X35 MM (8.8)
9 8111053 CLIP
10 8111070 GASKET
11 8111050 FLANGE
12 8009599 GASKET
13 8102479 EXHAUST COOL. ELBOW ASSY
14 16990870 LOCK PLUG Ø28 MM
15 16665604 WASHER Ø10X20 MM
16 4858610 WASHER Ø18X24 MM SP=1,5 MM
17 4858607 WASHER Ø12X17 MM SP=1,5 MM
18 4858609 WASHER Ø16X22 MM SP=1,5 MM
19 17038121 HEXAGON NUT M10
20 16992440 THREADED PLUG M16X1,5
21 16992540 PLUG M18X1,5
22 16992240 THREADED PLUG M12X1,5
23 17090174 SPRING WASHER Ø10X20 MM
25 16729424 STUD M8X1,25X25
26 16730024 STUD M8X55
