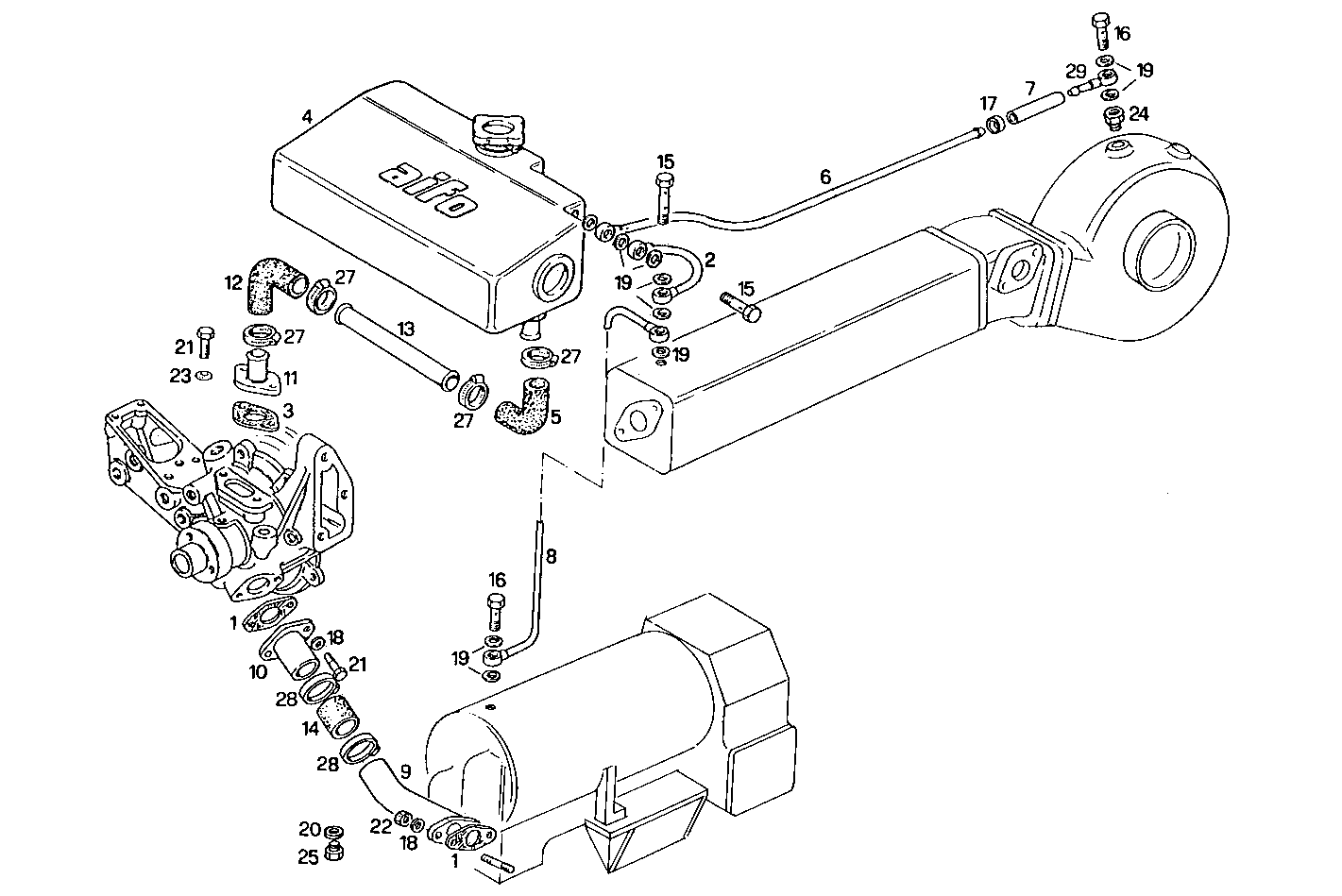

| Item |
Part number |
Description |
|
1 |
98418621 |
GASKET |
|
2 |
8011343 |
WATER PIPE |
|
3 |
98417182 |
FLAT ENGINE GASKET [up to 07-92] |
|
4 |
8109335 |
WATER EXPANSION TANK |
|
5 |
4616762 |
RUBBER SLEEVE |
|
6 |
8023089 |
WATER PIPE |
|
7 |
98421396 |
WATER HOSE |
|
8 |
8011348 |
WATER PIPE |
|
9 |
8110805 |
WATER PIPE |
|
10 |
4800147 |
PIPE |
|
11 |
8108080 |
WATER PIPE [up to 07-92] |
|
12 |
8108085 |
RUBBER SLEEVE |
|
13 |
8108078 |
WATER PIPE |
|
14 |
17742887 |
RUBBER SLEEVE |
|
15 |
8012607 |
SCREW CONNECTOR |
|
16 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
|
17 |
18087993 |
CLIP Ø8/16 MM |
|
18 |
17094914 |
WASHER 8x16 |
|
19 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
20 |
4858606 |
GASKET Ø10X14X1 MM |
|
21 |
98401723 |
HEXAGON BOLT M8X1,25X12 MM |
|
22 |
17037931 |
HEXAGON NUT M8X1,25 |
|
23 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
24 |
8111062 |
PIPE SOCKET |
|
25 |
16992140 |
PLUG M10X1 |
|
27 |
17764593 |
CLIP Ø20/32 MM |
|
28 |
17764793 |
CLIP Ø32/50 MM |
|
29 |
98405514 |
PIPE SOCKET |
